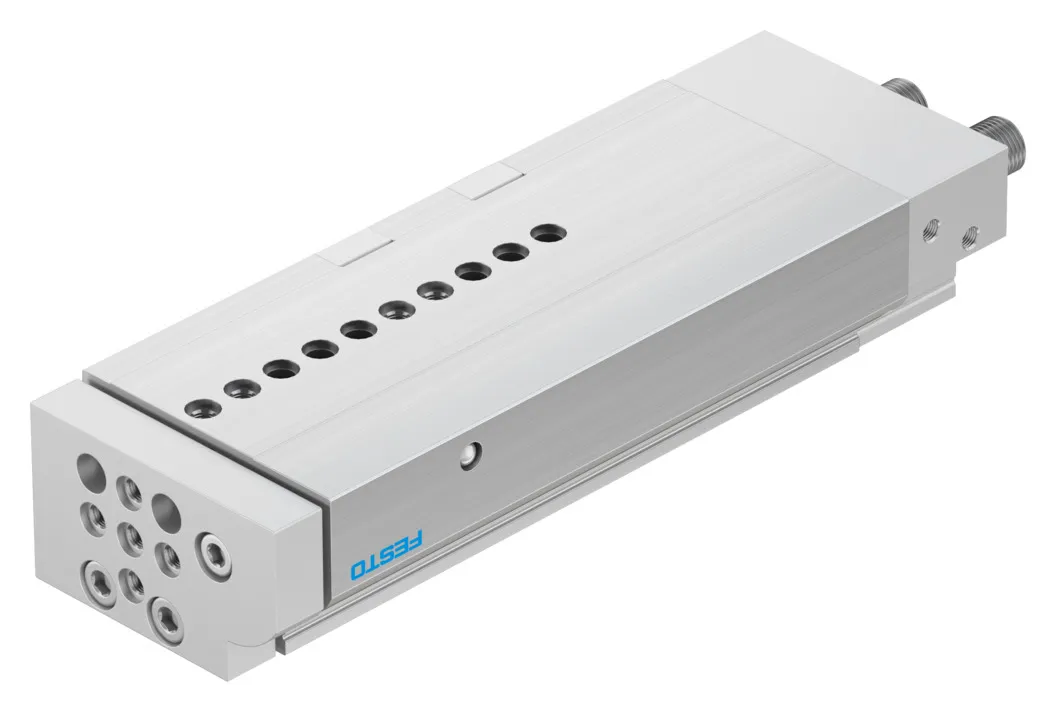

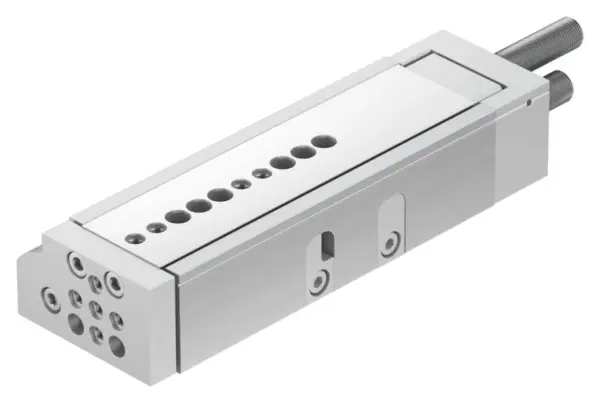

Festo DGSL-16-80-P1A
High load capacity and positioning accuracy , Maximum movement precision thanks to ground-in ball bearing cage guide , Maximum flexibility thanks to 8 sizes and a large selection of cushioning variant…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High load capacity and positioning accuracy , Maximum movement precision thanks to ground-in ball bearing cage guide , Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants , Variants with clamping unit or end-position locking for fixing the guide slide , Wide variety of mounting and attachment options , Compact design
Specification
| Stroke |
80 mm |
|---|---|
| Adjustable end position range/length front |
72.5 mm |
| Adjustable end position range/length rear |
39.5 mm |
| Piston diameter |
20 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/pads at both ends with fixed stop |
| Mounting position |
optional |
| Guide |
Ball bearing cage guide |
| Design |
Yoke, Piston, Piston rod, Slide |
| Position detection |
Via proximity switch |
| Symbol |
00991263 |
| Operating pressure |
1, 8 bar |
| Max. speed |
0.8 m/s |
| Repetition accuracy |
±0.01 mm |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 7 according to ISO 14644-1 |
| Ambient temperature |
60 °C |
| Impact energy in end positions |
0.12 J |
| Cushioning length |
4.2 mm |
| Max. force Fy |
2800 N |
| Max. force Fz |
2800 N |
| Max. moment Mx |
50 Nm |
| Max. moment My |
27 Nm |
| Max. moment Mz |
27 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
158 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
188 N |
| Moving mass |
618 g |
| Product weight |
1445 g |
| Alternative connections |
See product drawing |
| Type of mounting |
With through-hole |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
HNBR |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
