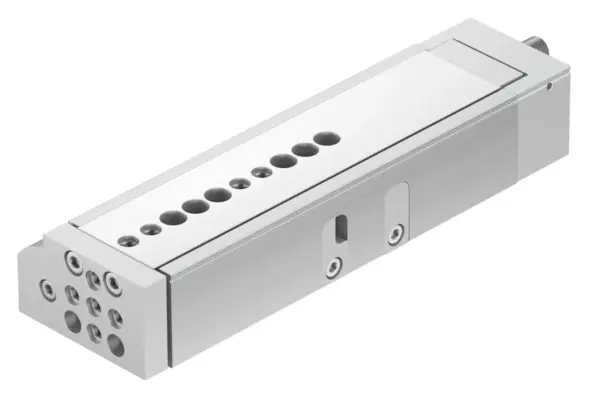

Festo DGSL-12-80-EA
High load capacity and positioning accuracy , Maximum movement precision thanks to ground-in ball bearing cage guide , Maximum flexibility thanks to 8 sizes and a large selection of cushioning variant…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High load capacity and positioning accuracy , Maximum movement precision thanks to ground-in ball bearing cage guide , Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants , Variants with clamping unit or end-position locking for fixing the guide slide , Wide variety of mounting and attachment options , Compact design
Specification
| Stroke | 80 mm |
|---|---|
| Adjustable end position range/length front | 38 mm |
| Adjustable end position range/length rear | 5.5 mm |
| Piston diameter | 16 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Short elastic cushioning rings/pads at both ends |
| Mounting position | optional |
| Guide | Ball bearing cage guide |
| Design | Yoke, Piston, Piston rod, Slide |
| Position detection | Via proximity switch |
| Symbol | 00991263 |
| Operating pressure | 1, 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 7 according to ISO 14644-1 |
| Ambient temperature | 60 °C |
| Impact energy in end positions | 0.25 J |
| Cushioning length | 1 mm |
| Max. force Fy | 1280 N |
| Max. force Fz | 1280 N |
| Max. moment Mx | 20 Nm |
| Max. moment My | 15 Nm |
| Max. moment Mz | 15 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 104 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 121 N |
| Moving mass | 456 g |
| Product weight | 1137 g |
| Alternative connections | See product drawing |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | HNBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
