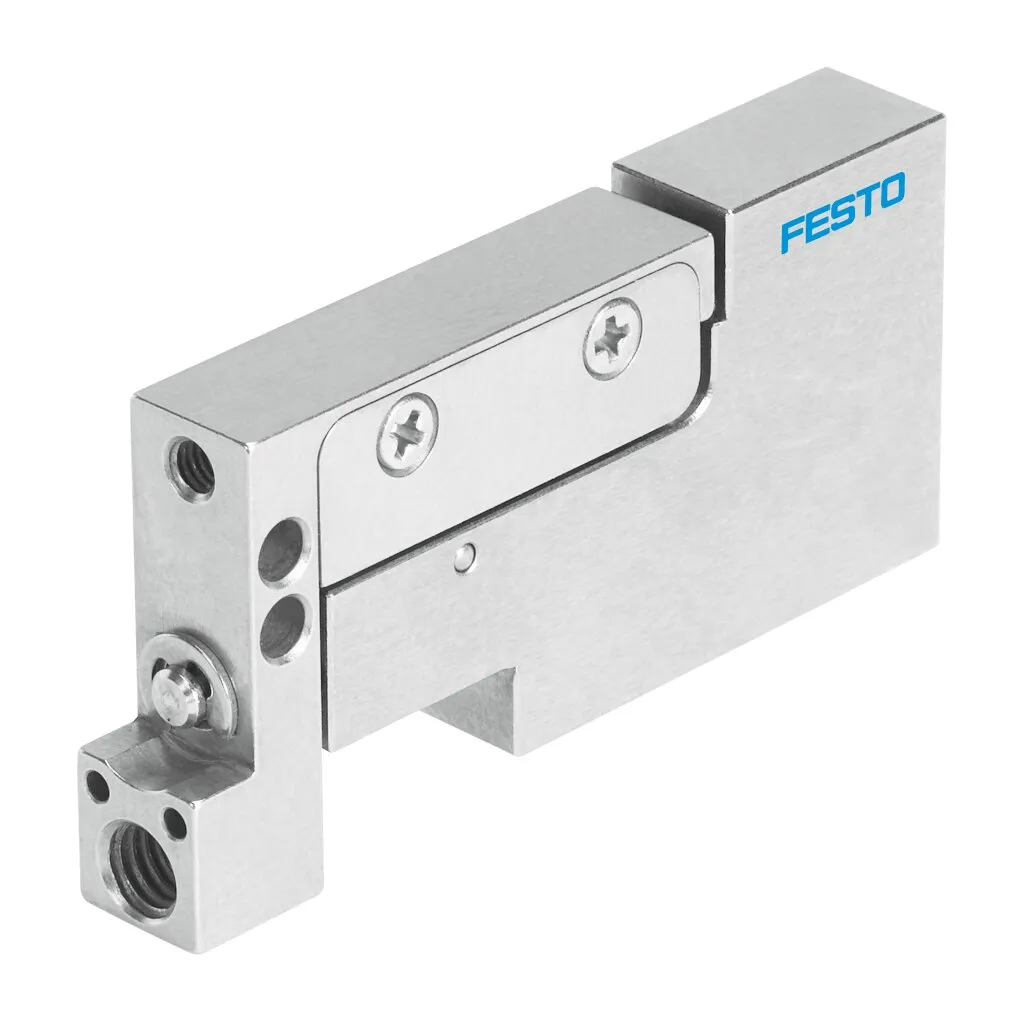

Festo DGSC-6-10-P-P
Smallest guided slide unit on the market , Precision ball bearing cage guide for a reliable and high-quality process , Long service life thanks to housing made from high-alloy steel , Low break-away p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Smallest guided slide unit on the market , Precision ball bearing cage guide for a reliable and high-quality process , Long service life thanks to housing made from high-alloy steel , Low break-away pressure and uniform movement thanks to minimal friction of guide and seal
Specification
| Stroke | 10 mm |
|---|---|
| Piston diameter | 6 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Ball bearing cage guide |
| Design | Scotch yoke system |
| Position detection | Without |
| Symbol | 00991263 |
| Operating pressure | 14.5, 87 psi |
| Repetition accuracy | 0.2 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 10, 50 °C |
| Max. force Fy | 20 N |
| Max. force Fz | 20 N |
| Max. moment Mx | 0.3 Nm |
| Max. moment My | 0.4 Nm |
| Max. moment Mz | 0.4 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 12.7 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 17 N |
| Moving mass | 17 g |
| Product weight | 52 g |
| Type of mounting | Via female thread and dowel pin |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Material cover | POM |
| Material seals | NBR |
| Material guide | High-alloy steel |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
