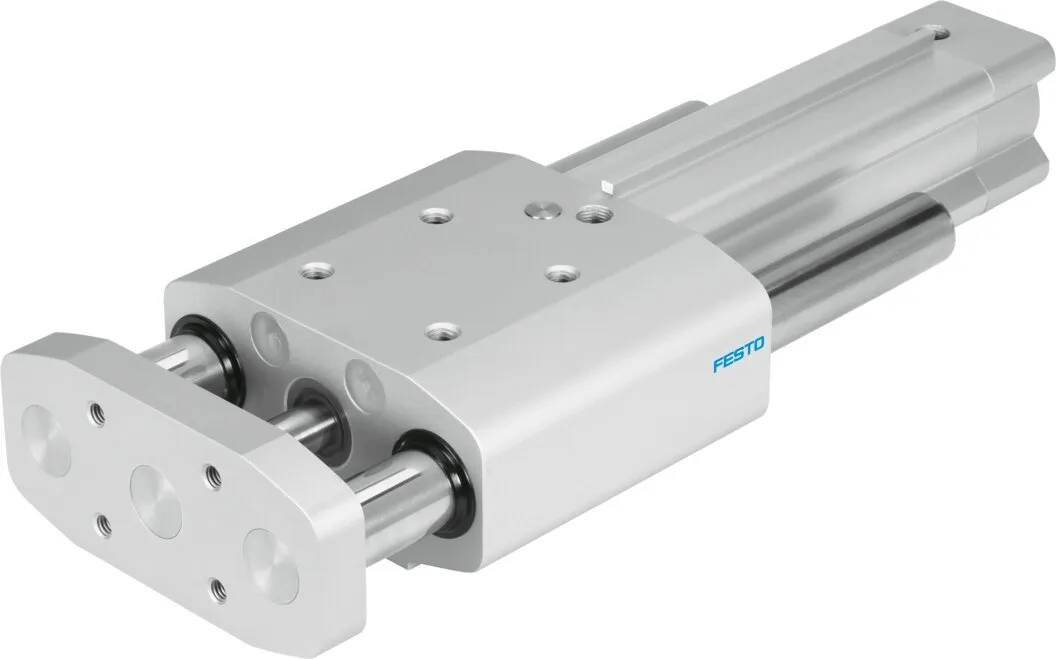

Festo DGRF-C-GF-63- –
Easy-to-clean design , Increased corrosion protection , FDA-approved lubrication and sealing on the basic version , Hygienic mounting of the sensors possible , Compact design with high guide precision…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy-to-clean design , Increased corrosion protection , FDA-approved lubrication and sealing on the basic version , Hygienic mounting of the sensors possible , Compact design with high guide precision and load capacity , Long service life thanks to optional dry-running seal , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Specification
| Stroke | 10, 400 mm |
|---|---|
| Piston diameter | 63 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Variants | For unlubricated operation |
| Operating pressure | 1.5, 12 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 – high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20, 80 °C |
| Impact energy in end positions | 1.3 J |
| Cushioning length | 22 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1682 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1870 N |
| Torsional backlash | 0.061 deg |
| Moving mass for 0 mm stroke | 2114 g |
| Additional moving mass per 10 mm stroke | 101.7 g |
| Basic weight for 0 mm stroke | 6405 g |
| Additional weight per 10 mm stroke | 142.8 g |
| Type of mounting | With through-hole, Via female thread |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, Coated |
| Material guide rod | High-alloy stainless steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy |
