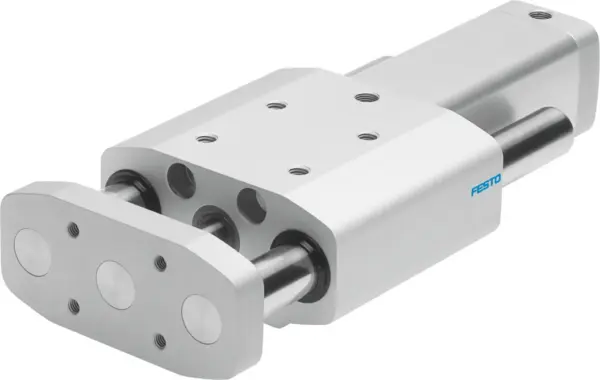

Festo DGRF-C-GF-25- -P
Easy-to-clean design , Increased corrosion protection , FDA-approved lubrication and sealing on the basic version , Hygienic mounting of the sensors possible , Compact design with high guide precision…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy-to-clean design , Increased corrosion protection , FDA-approved lubrication and sealing on the basic version , Hygienic mounting of the sensors possible , Compact design with high guide precision and load capacity , Long service life thanks to optional dry-running seal , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Specification
| Stroke |
10, 400 mm |
|---|---|
| Piston diameter |
25 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Symbol |
00991738 |
| Variants |
For unlubricated operation |
| Operating pressure |
2, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.3 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
247 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
295 N |
| Torsional backlash |
0.107 deg |
| Moving mass for 0 mm stroke |
486 g |
| Additional moving mass per 10 mm stroke |
37.7 g |
| Basic weight for 0 mm stroke |
1199 g |
| Additional weight per 10 mm stroke |
54.6 g |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material guide rod |
High-alloy stainless steel |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
Wrought aluminium alloy |
