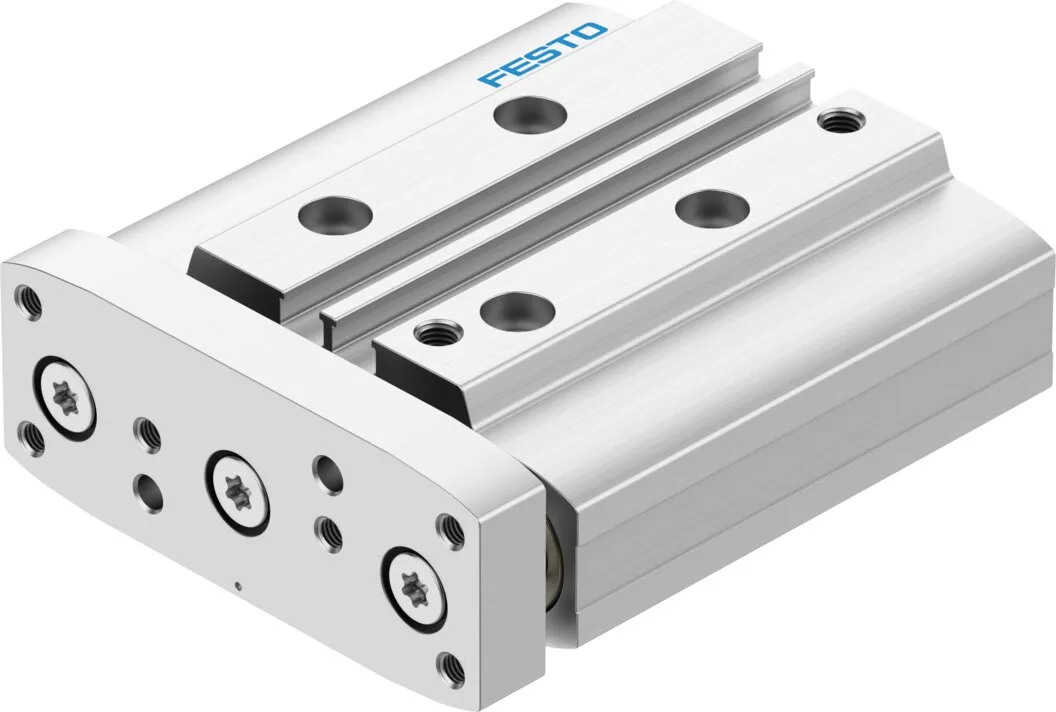

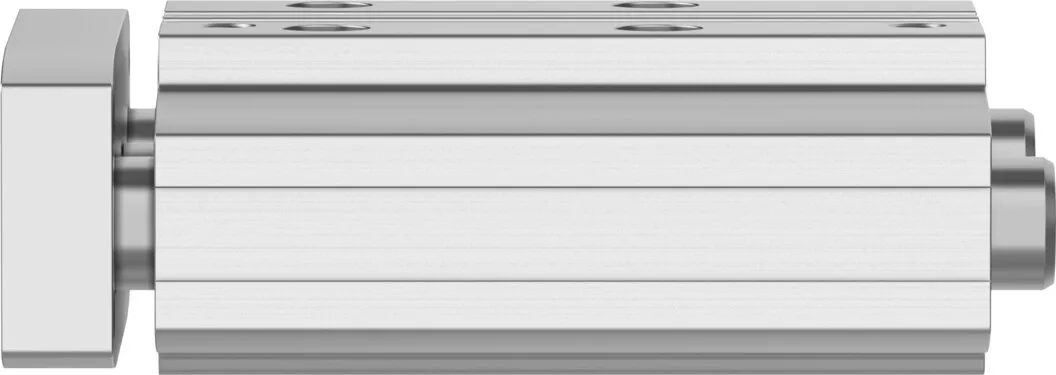

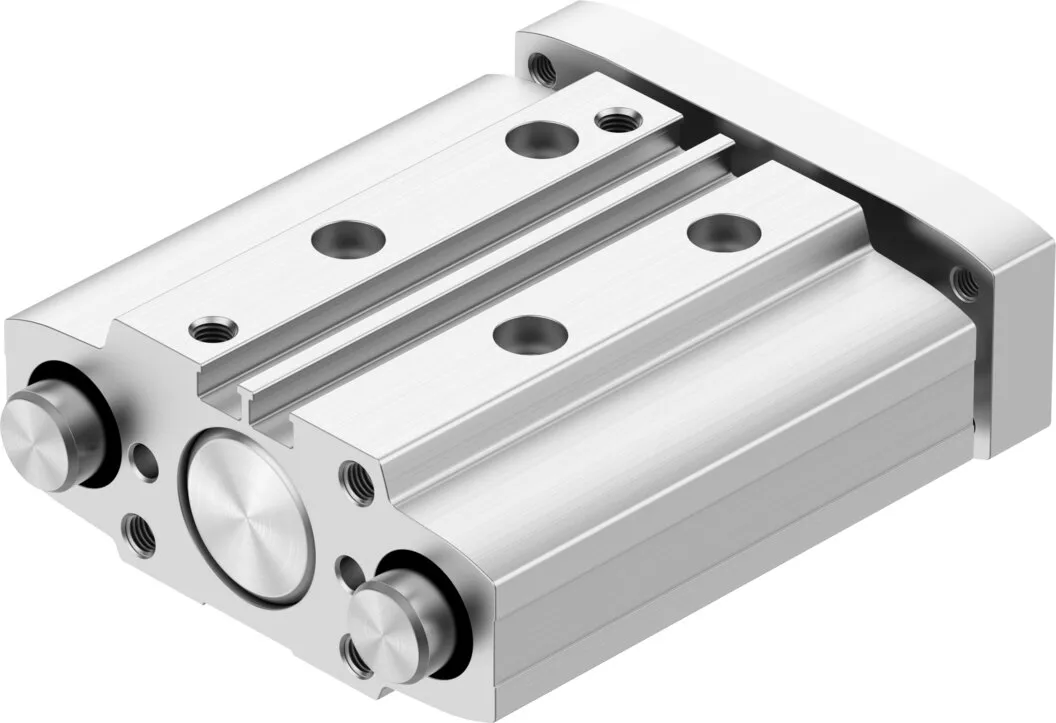

Festo DGRC-GF-20-50-PA
Minimised product weight and reduced installation space , Drive and guide unit in a single housing , Recommended for production plants for the manufacture of Li-ion batteries (F1A) , Food grade lubric…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Minimised product weight and reduced installation space , Drive and guide unit in a single housing , Recommended for production plants for the manufacture of Li-ion batteries (F1A) , Food grade lubrication , High resistance to torques and lateral forces , Variable stroke
Specification
| Distance from centre of gravity of load to yoke plate xs |
50 mm |
|---|---|
| Stroke |
50 mm |
| Piston diameter |
20 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Position detection |
Via proximity switch |
| Symbol |
00991737 |
| Protection against torque/guide |
Guide rod with yoke |
| Operating pressure |
2, 10 bar |
| Max. speed |
0.8 m/s |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature |
-10, 60 °C |
| Impact energy in end positions |
0.2 J |
| Max. force Fy |
487.2 N |
| Max. force Fy static |
487.2 N |
| Max. force Fz |
487.2 N |
| Max. force Fz static |
487.2 N |
| Max. moment Mx |
13.15 Nm |
| Max. torque Mx static |
13.15 Nm |
| Max. moment My |
6.82 Nm |
| Max. torque My static |
6.82 Nm |
| Max. moment Mz |
6.82 Nm |
| Max. torque Mz static |
6.82 Nm |
| Max. permissible torque load Mx as a function of stroke |
1.96 Nm |
| Max. effective load dependent upon stroke at defined distance xs |
47.1 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
141 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
188 N |
| Torsional backlash |
0.055 deg |
| Moving mass |
254.2 g |
| Product weight |
537.6 g |
| Basic weight for 0 mm stroke |
283.4 g |
| Centre of gravity of moving mass as a function of stroke |
38.4 mm |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material dynamic seals |
TPE-U(PU) |
| Material end plate |
Anodised wrought aluminium alloy |
| Material guide rod |
High-alloy steel |
| Material housing |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy steel |
