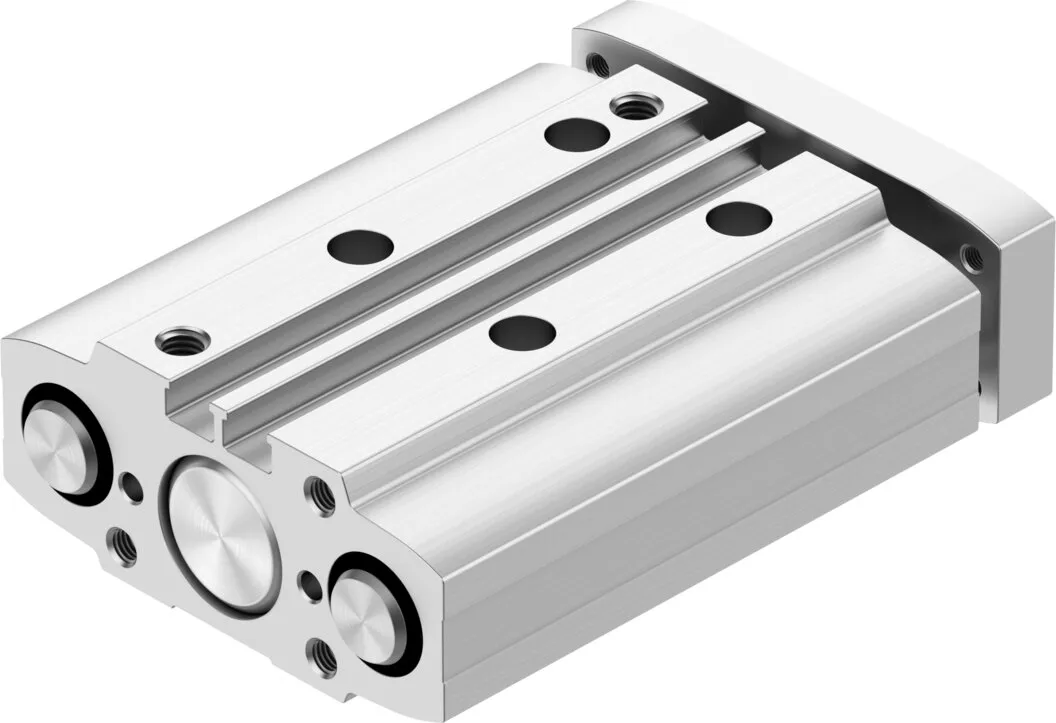

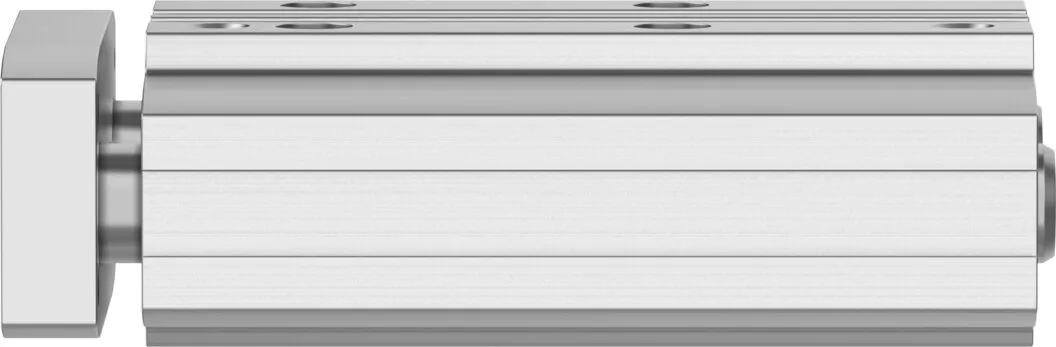

Festo DGRC-GF-16-100-PA
Minimised product weight and reduced installation space , Drive and guide unit in a single housing , Recommended for production plants for manufacturing Li-ion batteries , Food grade lubrication , Hig…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Minimised product weight and reduced installation space , Drive and guide unit in a single housing , Recommended for production plants for manufacturing Li-ion batteries , Food grade lubrication , High resistance to torques and lateral forces , Variable stroke
Specification
| Distance from centre of gravity of load to yoke plate xs | 50 mm |
|---|---|
| Stroke | 100 mm |
| Piston diameter | 16 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 2, 10 bar |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10, 60 °C |
| Impact energy in end positions | 0.15 J |
| Max. force Fy | 350.7 N |
| Max. force Fy static | 350.7 N |
| Max. force Fz | 350.7 N |
| Max. force Fz static | 350.7 N |
| Max. moment Mx | 7.54 Nm |
| Max. torque Mx static | 7.54 Nm |
| Max. moment My | 7.63 Nm |
| Max. torque My static | 7.63 Nm |
| Max. moment Mz | 7.63 Nm |
| Max. torque Mz static | 7.63 Nm |
| Max. permissible torque load Mx as a function of stroke | 1.02 Nm |
| Max. effective load dependent upon stroke at defined distance xs | 36 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 90 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 121 N |
| Torsional backlash | 0.065 deg |
| Moving mass | 264.3 g |
| Product weight | 586.4 g |
| Basic weight for 0 mm stroke | 322.1 g |
| Centre of gravity of moving mass as a function of stroke | 69.2 mm |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material dynamic seals | TPE-U(PU) |
| Material end plate | Anodised wrought aluminium alloy |
| Material guide rod | High-alloy steel |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
