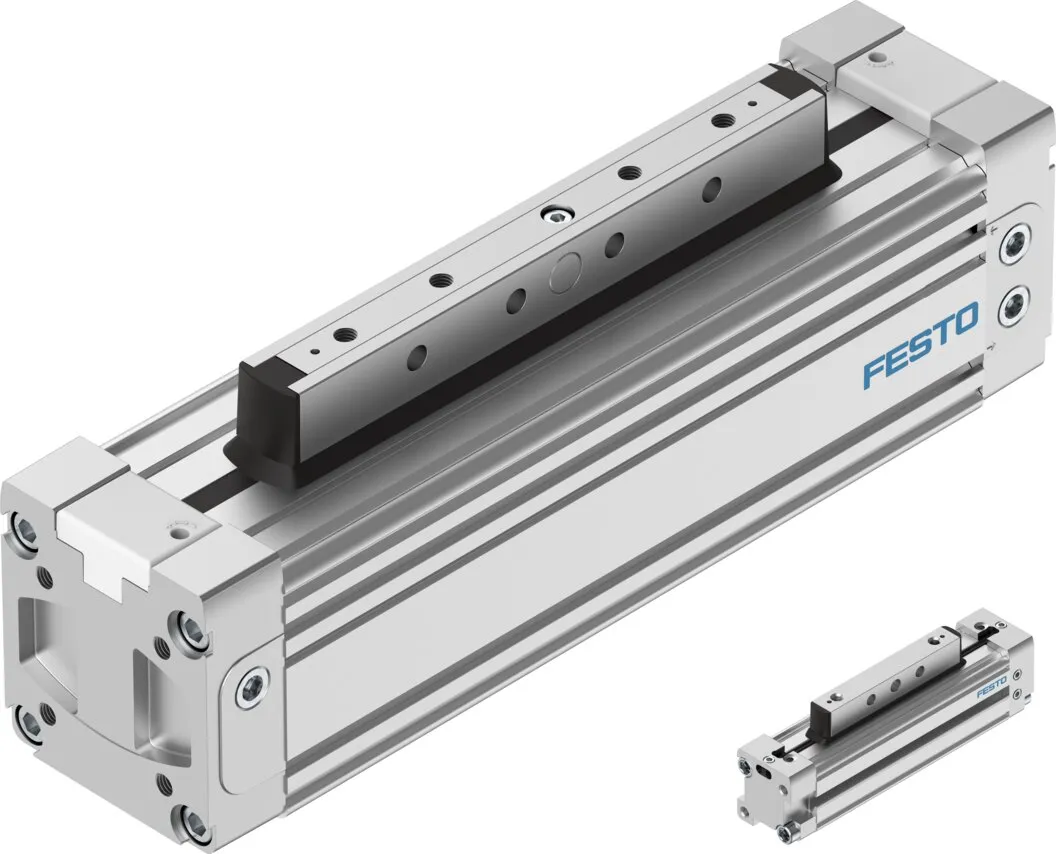

Festo DGC-K-25- –
Compact design: 30% smaller than basic design DGC-G , Basic drive without guide, for simple drive functions , Low moving dead weight , Symmetrical design
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact design: 30% smaller than basic design DGC-G , Basic drive without guide, for simple drive functions , Low moving dead weight , Symmetrical design
Specification
| Stroke | 1, 8500 mm |
|---|---|
| Piston diameter | 25 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Position detection | Via proximity switch |
| Variants | Standard piston, Extended piston |
| Operating pressure | 2, 8 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 3D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb X |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Dc X |
| Explosion ambient temperature | -10 °C <= Ta <= +60 °C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -10, 60 °C |
| Cushioning length | 18 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 295 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 295 N |
| Alternative connections | See product drawing |
| Type of mounting | With accessories |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium |
| Material seals | NBR, TPE-U(PU) |
