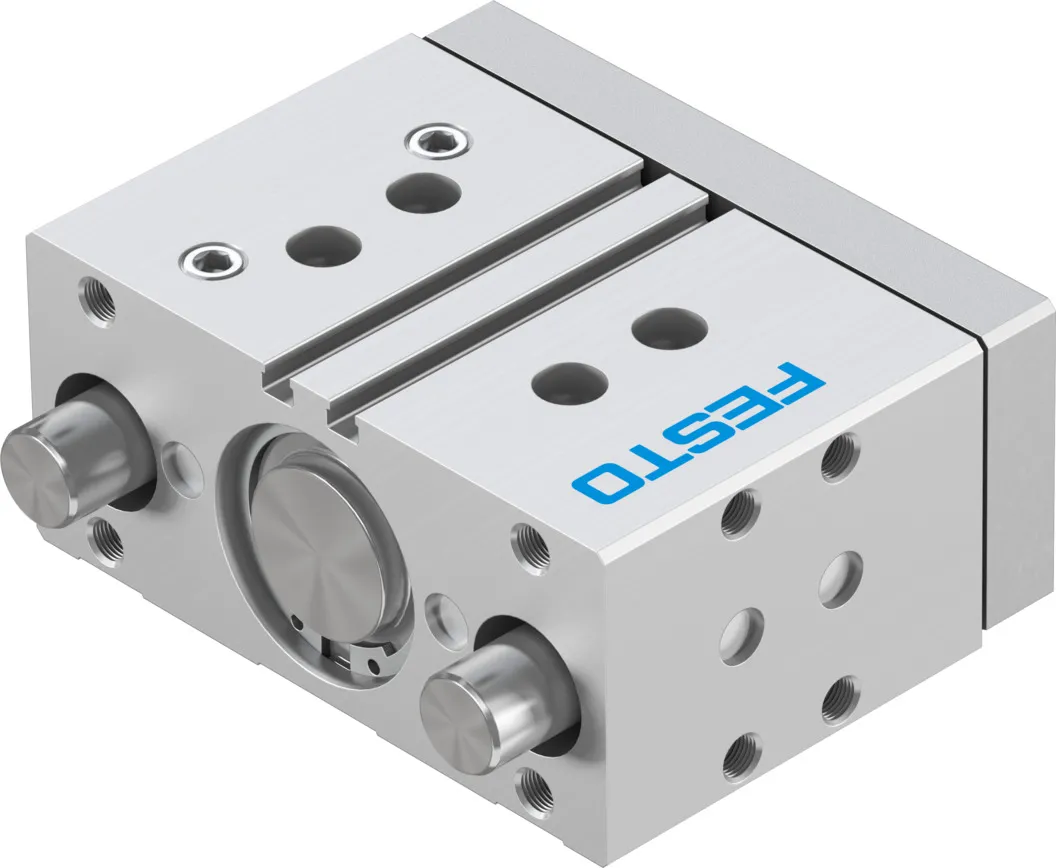

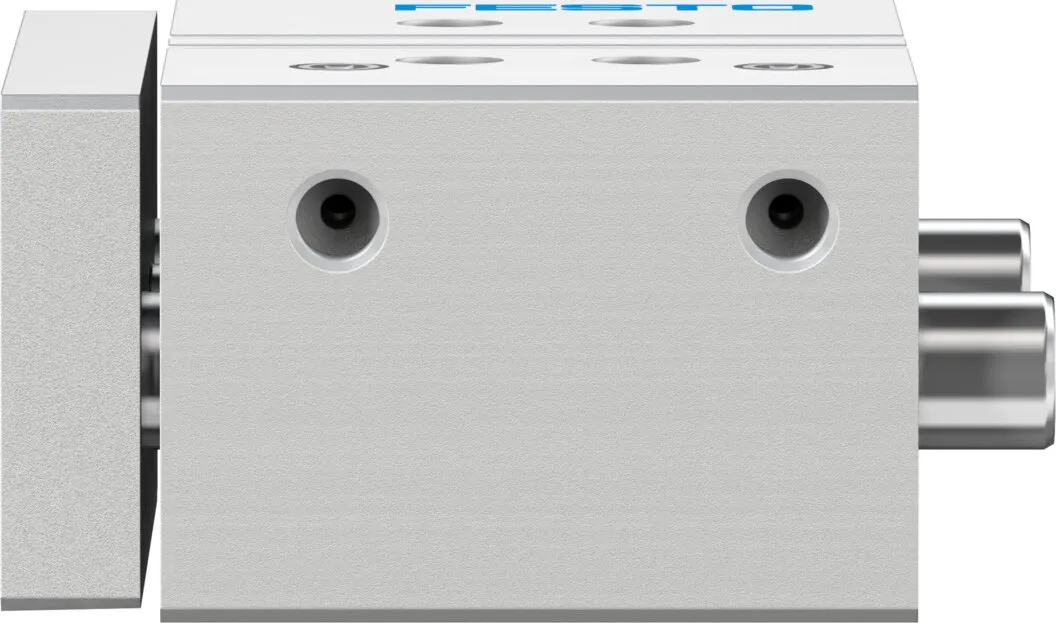

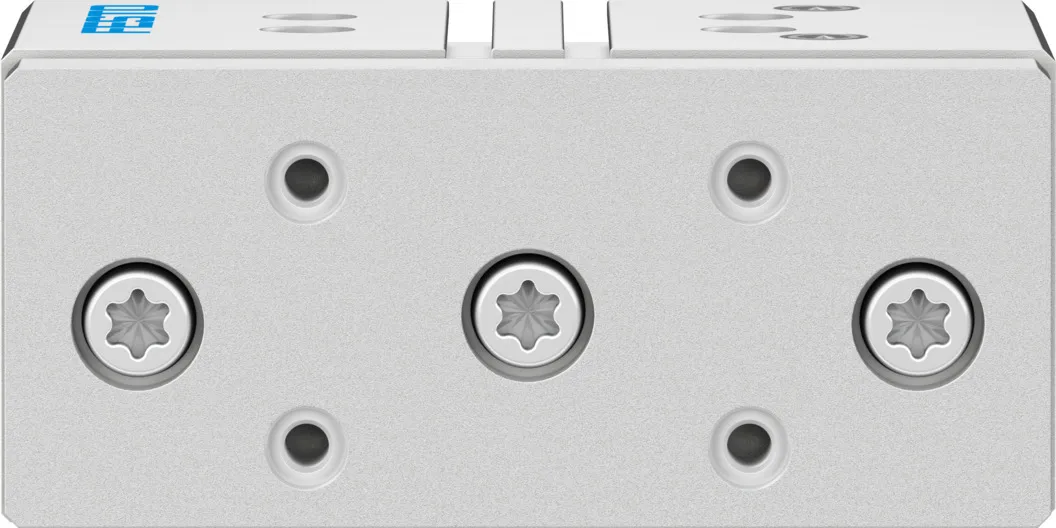

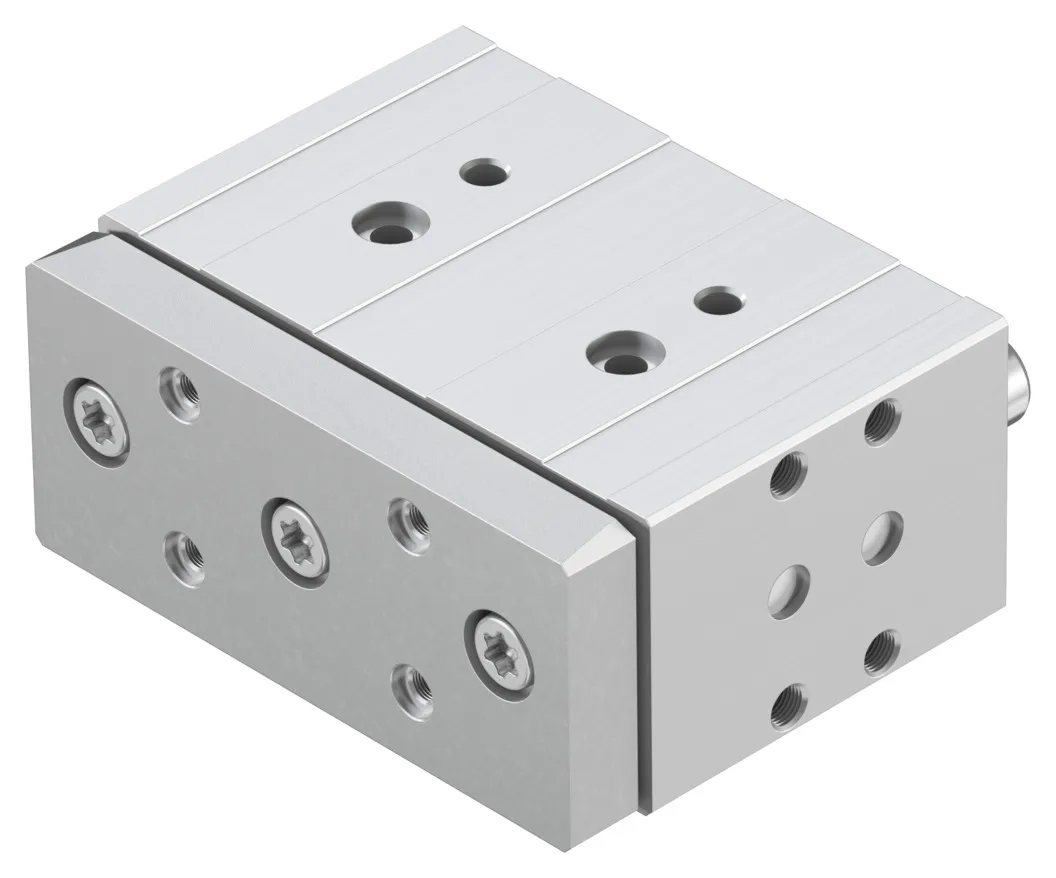

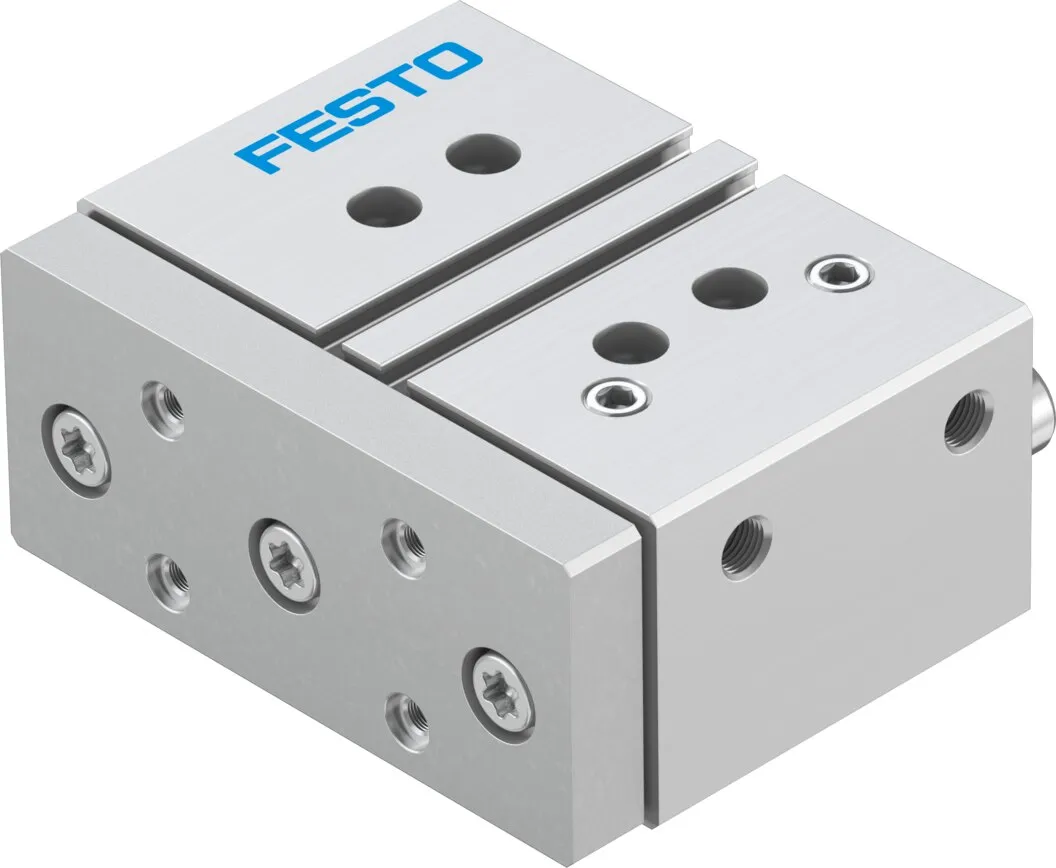

Festo DFM-40-25-P-A-KF-F1A
Drive and guide unit in a single housing , High resistance to torques and lateral forces , Plain or recirculating ball bearing guide , Wide variety of mounting and attachment options , Wide range of v…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Drive and guide unit in a single housing , High resistance to torques and lateral forces , Plain or recirculating ball bearing guide , Wide variety of mounting and attachment options , Wide range of variants for customised applications , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Distance from centre of gravity of load to yoke plate xs | 50 mm |
|---|---|
| Stroke | 25 mm |
| Piston diameter | 40 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure | 1.5, 10 bar |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -5, 60 °C |
| Impact energy in end positions | 0.7 J |
| Max. force Fy | 1130 N |
| Max. force Fy static | 1260 N |
| Max. force Fz | 1130 N |
| Max. force Fz static | 1260 N |
| Max. moment Mx | 49.74 Nm |
| Max. torque Mx static | 55.44 Nm |
| Max. moment My | 18.66 Nm |
| Max. torque My static | 20.79 Nm |
| Max. moment Mz | 18.66 Nm |
| Max. torque Mz static | 20.79 Nm |
| Max. permissible torque load Mx as a function of stroke | 10.25 Nm |
| Max. effective load dependent upon stroke at defined distance xs | 149 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 686 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 754 N |
| Moving mass | 1074 g |
| Product weight | 2043 g |
| Centre of gravity of moving mass as a function of stroke | 28.2 mm |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
