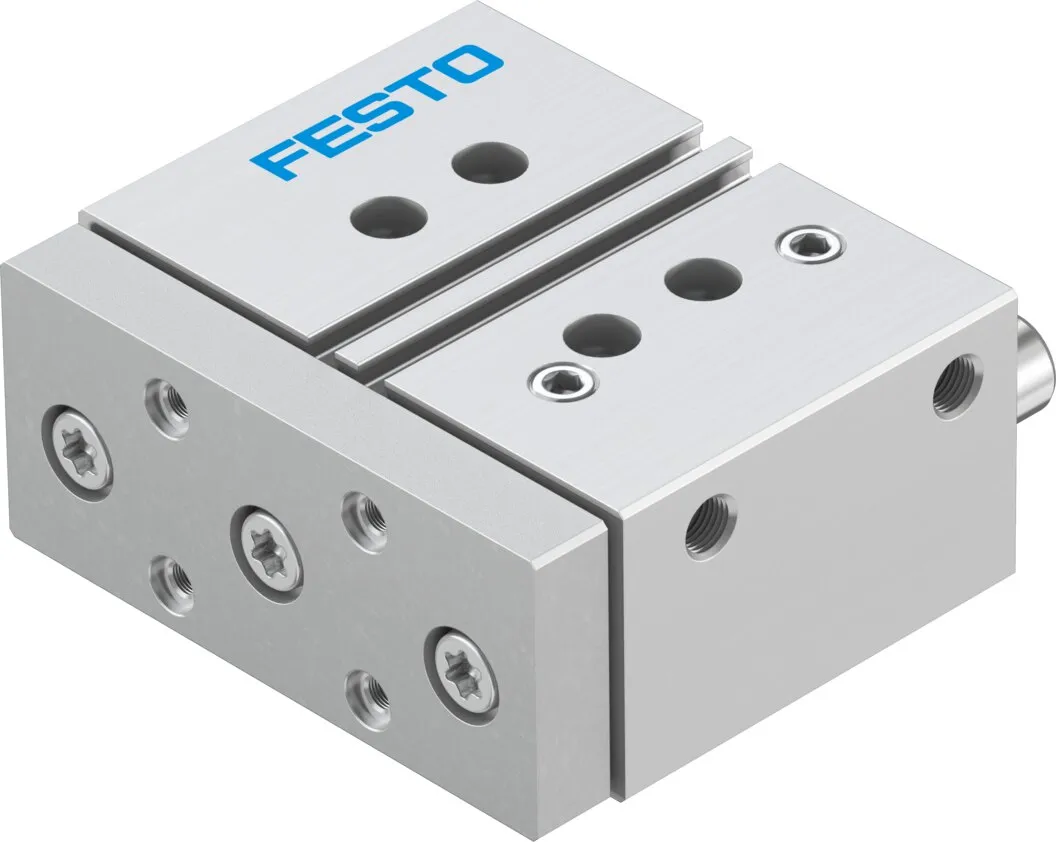

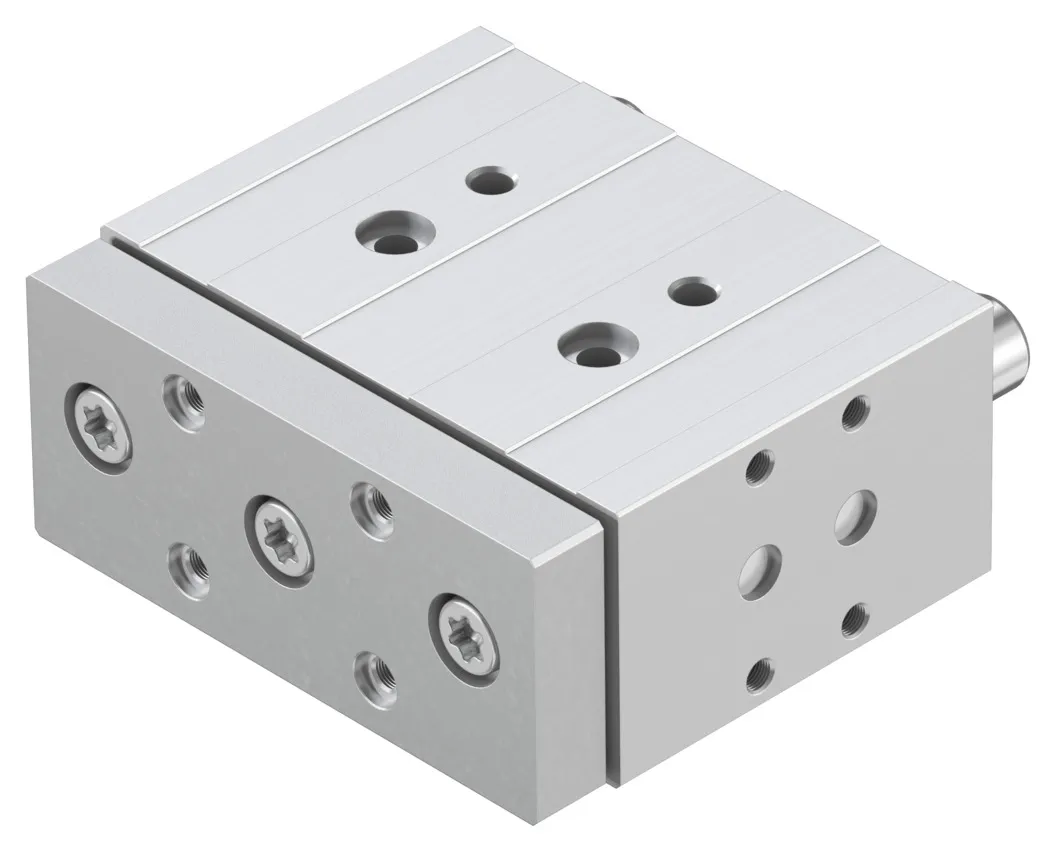

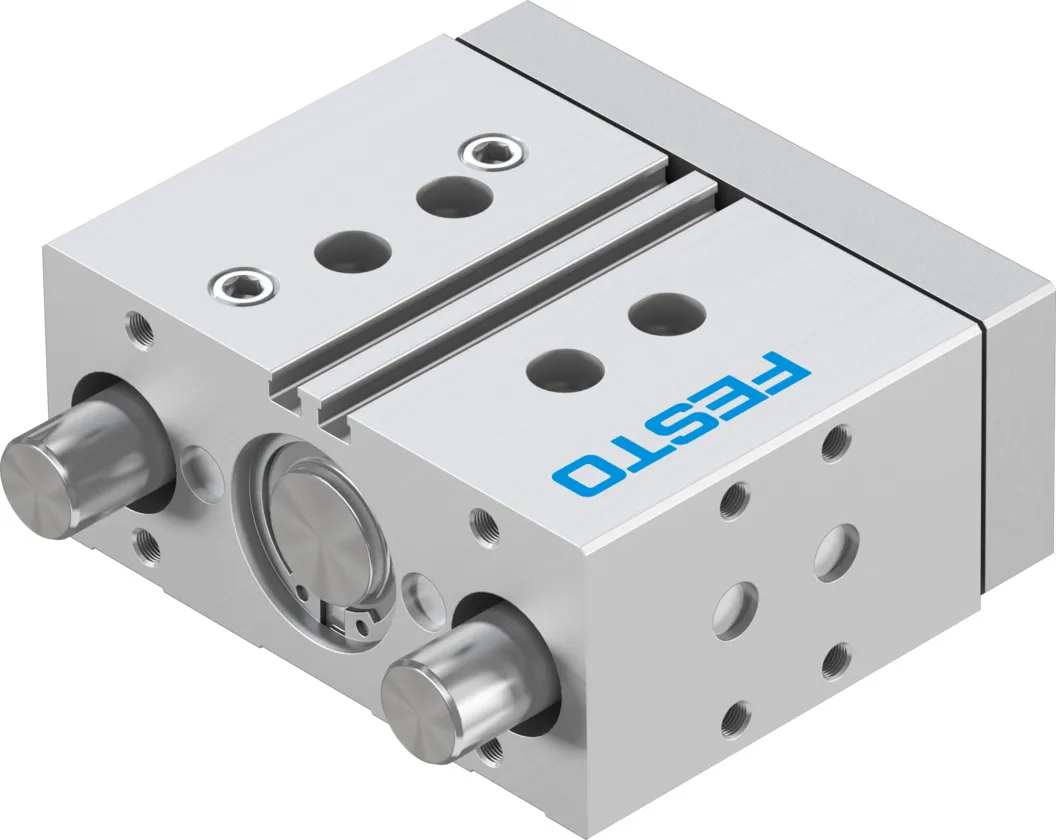

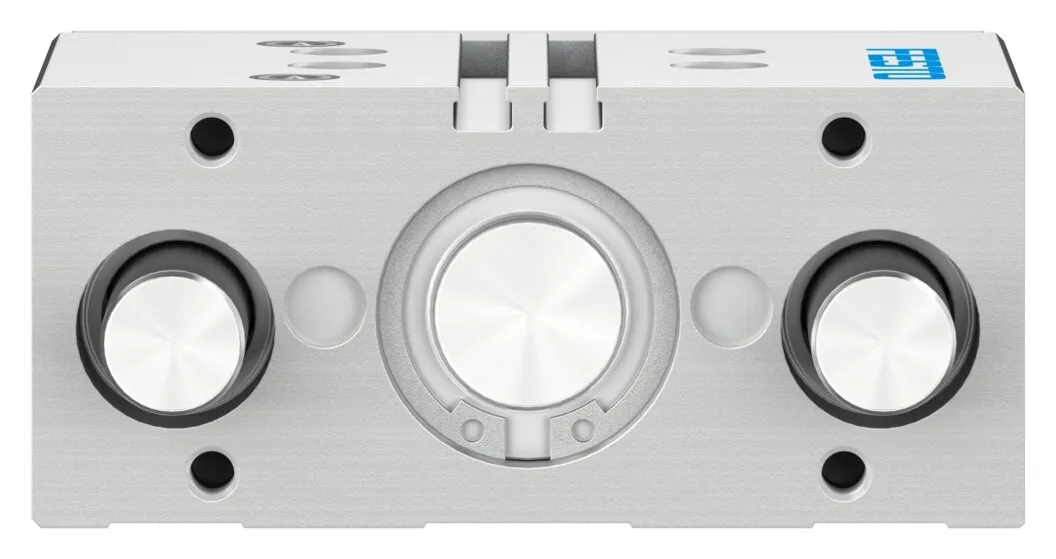

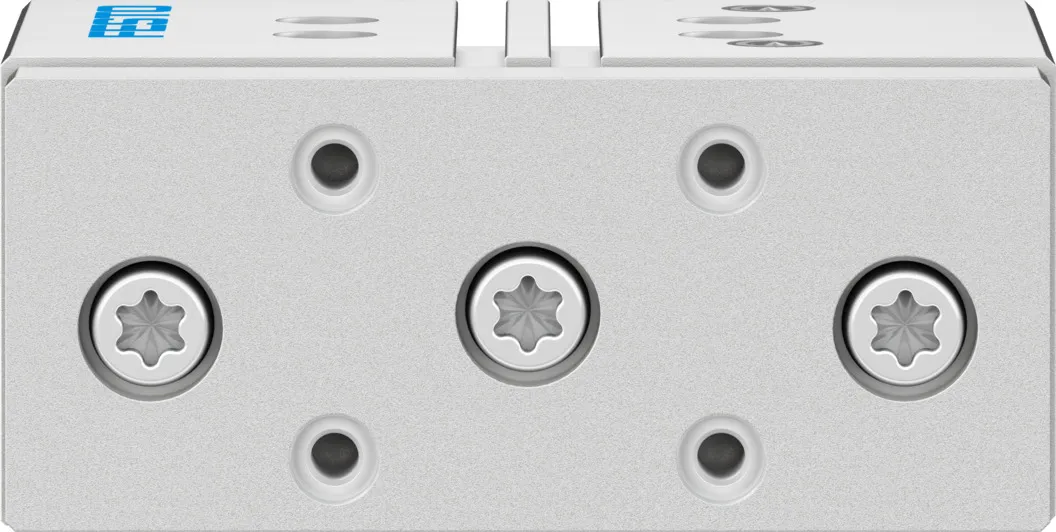

Festo DFM-32-30-P-A-KF
Drive and guide unit in a single housing , High resistance to torques and lateral forces , Plain or recirculating ball bearing guide , Wide variety of mounting and attachment options , Wide range of v…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Drive and guide unit in a single housing , High resistance to torques and lateral forces , Plain or recirculating ball bearing guide , Wide variety of mounting and attachment options , Wide range of variants for customised applications , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Distance from centre of gravity of load to yoke plate xs |
50 mm |
|---|---|
| Stroke |
30 mm |
| Piston diameter |
32 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Position detection |
Via proximity switch |
| Symbol |
00991737 |
| Operating pressure |
1.5, 10 bar |
| Max. speed |
0.8 m/s |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-5, 60 °C |
| Impact energy in end positions |
0.4 J |
| Max. force Fy |
1130 N |
| Max. force Fy static |
1260 N |
| Max. force Fz |
1130 N |
| Max. force Fz static |
1260 N |
| Max. moment Mx |
44.09 Nm |
| Max. torque Mx static |
49.14 Nm |
| Max. moment My |
18.66 Nm |
| Max. torque My static |
20.79 Nm |
| Max. moment Mz |
18.66 Nm |
| Max. torque Mz static |
20.79 Nm |
| Max. permissible torque load Mx as a function of stroke |
8.6 Nm |
| Max. effective load dependent upon stroke at defined distance xs |
144 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
415 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
482 N |
| Moving mass |
915 g |
| Product weight |
1755 g |
| Centre of gravity of moving mass as a function of stroke |
29.8 mm |
| Alternative connections |
See product drawing |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
