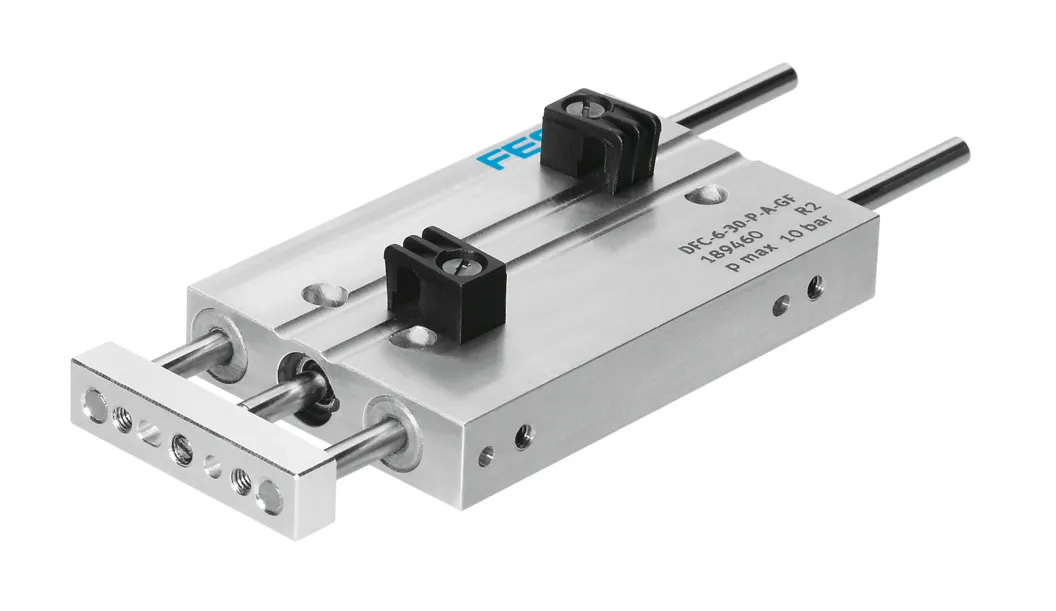

Festo DFC-10-10-P-A-GF
Smallest guided drive , Precise and resilient , Minimal space requirement , Drive and guide unit in a single housing , Plain or recirculating ball bearing guide , Sustainable thanks to extended life c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Smallest guided drive , Precise and resilient , Minimal space requirement , Drive and guide unit in a single housing , Plain or recirculating ball bearing guide , Sustainable thanks to extended life cycle and easier repairs
Specification
| Distance from centre of gravity of load to yoke plate xs |
15 mm |
|---|---|
| Stroke |
10 mm |
| Piston diameter |
10 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Position detection |
Via proximity switch |
| Symbol |
00991737 |
| Operating pressure |
1, 10 bar |
| Max. speed |
1 m/s |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-5, 60 °C |
| Impact energy in end positions |
0.05 J |
| Max. moment Mx |
0.4 Nm |
| Max. effective load dependent upon stroke at defined distance xs |
12.2 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
35 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
47 N |
| Moving mass |
8.8 g |
| Moving mass for 0 mm stroke |
8.8 g |
| Additional moving mass per 10 mm stroke |
2.8 g |
| Product weight |
100 g |
| Pneumatic connection |
M5 |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
