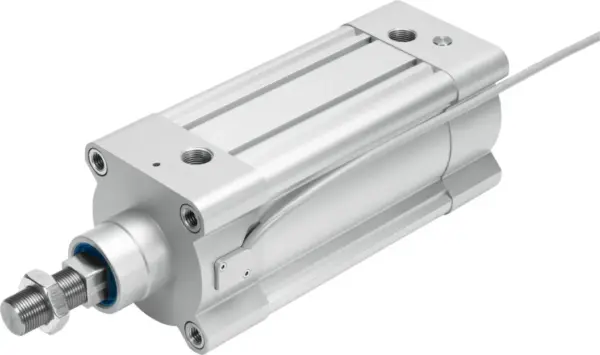

Festo DDPC-…-100- –
Standards-based cylinder to ISO 15552 , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with end-posi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Standards-based cylinder to ISO 15552 , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with end-position controller CPX-CMPX or SPC11 , Can be used as a measuring cylinder , Piston rod variants , Fixed cushioning , With optional recirculating ball bearing guide, clamping unit
Specification
| Stroke |
10, 2000 mm |
|---|---|
| Stroke Servopneumatic positioning |
50, 750 mm |
| Stroke Smart Softstop |
50, 750 mm |
| Stroke reduction at end positions |
>= 15 mm |
| Smallest positioning stroke |
3% of max. stroke, Max. 10 mm |
| Piston diameter |
100 mm |
| Based on standard |
ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Positioning installation position |
optional |
| Soft Stop installation position |
Optional |
| Functional principle of measuring system |
Digital |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch, With integrated displacement encoder |
| Variants |
Extended piston rod, Piston rod at one end |
| Protection against torque/guide |
Guide rod with yoke, Square piston rod |
| Operating pressure |
174 psi |
| Operating pressure positioning/Soft Stop |
4, 8 bar |
| Max. travel speed |
0.7 m/s |
| Min. travel speed |
0.05 m/s |
| Typical positioning time short stroke, horizontal |
0.80/1.32 s |
| Typical positioning time long stroke, horizontal |
0.95/1.10 s |
| Mode of operation |
Double-acting |
| Nominal operating voltage DC |
5 V |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Operating medium |
Compressed air to ISO 8573-1:2010 [6:4:4] |
| Note on operating and pilot medium |
Dew point at least 10 °C below the ambient temperature and temperature of the medium |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 |
Tested to severity level 2 |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Max. magnetic interference field |
10 KA/m at a distance of 100 mm |
| Degree of protection |
IP65, To IEC 60529 |
| Vibration resistance to DIN/IEC 68 Part 2-6 |
Tested to severity level 2 |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
2.5 J |
| Max. torque for protection against torsion |
3 Nm |
| Max. working load, horizontal |
450 kg |
| Max. working load, vertical |
150 kg |
| Min. working load, horizontal |
32 kg |
| Min. working load, vertical |
32 kg |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
4418 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
4712 N |
| Moving mass for 0 mm stroke |
994 g |
| Additional moving mass per 10 mm stroke |
31 g |
| Basic weight for 0 mm stroke |
4330 g |
| Additional weight per 10 mm stroke |
95 g |
| Output signal |
Analogue |
| Repetition accuracy in ± mm |
0.5 mm |
| Max. controllable force during advance stroke |
4241 N |
| Max. controllable force during return stroke |
3976 N |
| Typical friction force |
160 N |
| Repetition accuracy Soft Stop intermediate position |
+/-2 mm |
| Electrical connection encoder |
8-pin |
| Cable length |
1.5 m |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/2 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
FPM, NBR, TPE-U(PU) |
| Material cable sheath |
TPE-U(PUR) |
| Material piston rod |
High-alloy steel |
| Material screws |
Steel |
| Material sensor cover |
Aluminium |
| Material sensor head |
POM |
| Material connector housing |
PBT |
| Material cylinder barrel |
Wrought aluminium alloy |
