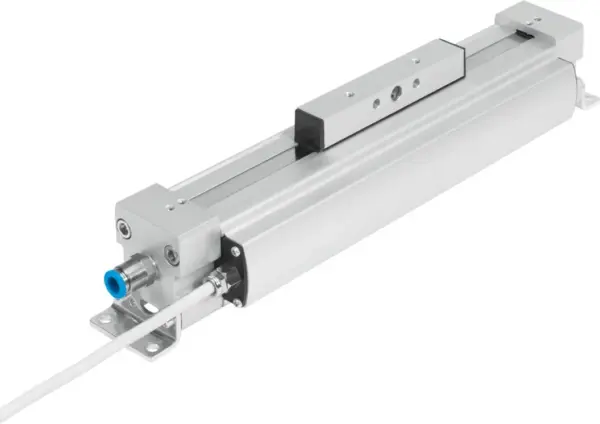

Festo DDLI-40- –
Based on linear drive DGC-K , Without guide , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with en…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Based on linear drive DGC-K , Without guide , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with end-position controller CPX-CMPX or SPC11 , Measures absolute values , Can be used as a measuring cylinder , Degree of protection IP67 , For attachment to customer’s own guide , Supply ports on end face
Specification
| Stroke |
100, 2000 mm |
|---|---|
| Piston diameter |
40 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Position detection |
With integrated displacement encoder |
| Operating pressure |
29, 116 psi |
| Mode of operation |
Double-acting |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Operating medium |
Compressed air to ISO 8573-1:2010 [6:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-10, 60 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
754 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
754 N |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/4 |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR, TPE-U(PU) |
