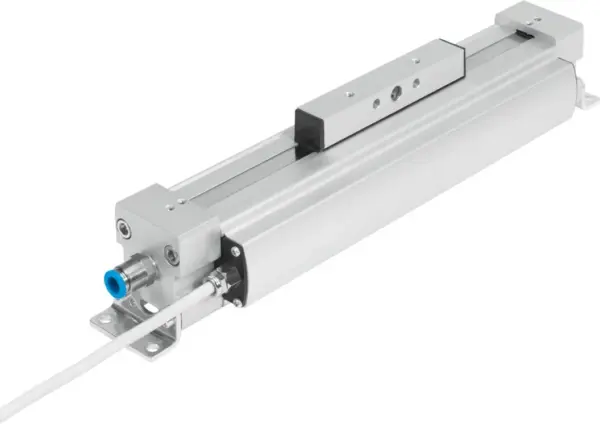

Festo DDLI-25- –
Based on linear drive DGC-K , Without guide , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with en…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Based on linear drive DGC-K , Without guide , With displacement encoder for contactless measurement , Suitable for positioning with axis controller CPX-CMAX , Suitable for end-position control with end-position controller CPX-CMPX or SPC11 , Measures absolute values , Can be used as a measuring cylinder , Degree of protection IP67 , For attachment to customer’s own guide , Supply ports on end face
Specification
| Stroke | 100, 2000 mm |
|---|---|
| Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Position detection | With integrated displacement encoder |
| Operating pressure | 29, 116 psi |
| Mode of operation | Double-acting |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10, 60 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 295 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 295 N |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR, TPE-U(PU) |
