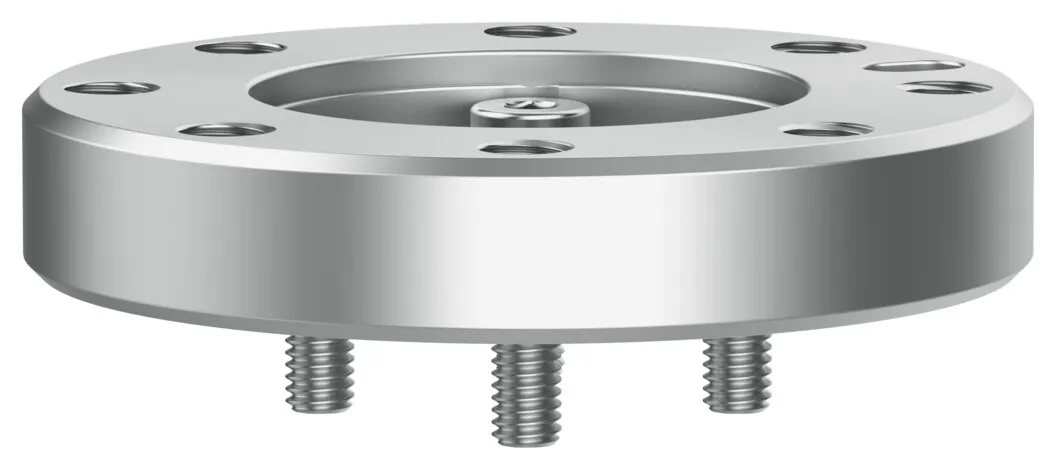

Festo DARF-Q13-20-1
Push-on flange-DARF-Q13-20-1
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 20 |
|---|---|
| Mounting position | optional |
| Design | Adapter for rotary drive |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class | Class 9 according to ISO 14644-1 |
| Ambient temperature | 60 °C |
| Max. bending moment | 5 Nm |
| Max. axial load static | 350 N |
| Product weight | 66 g |
| Type of mounting | Via through-hole and centring sleeve |
| Note on materials | RoHS-compliant |
| Material flange | Anodised wrought aluminium alloy |
| Material sleeve | High-alloy stainless steel |
| Material screws | Coated steel |
