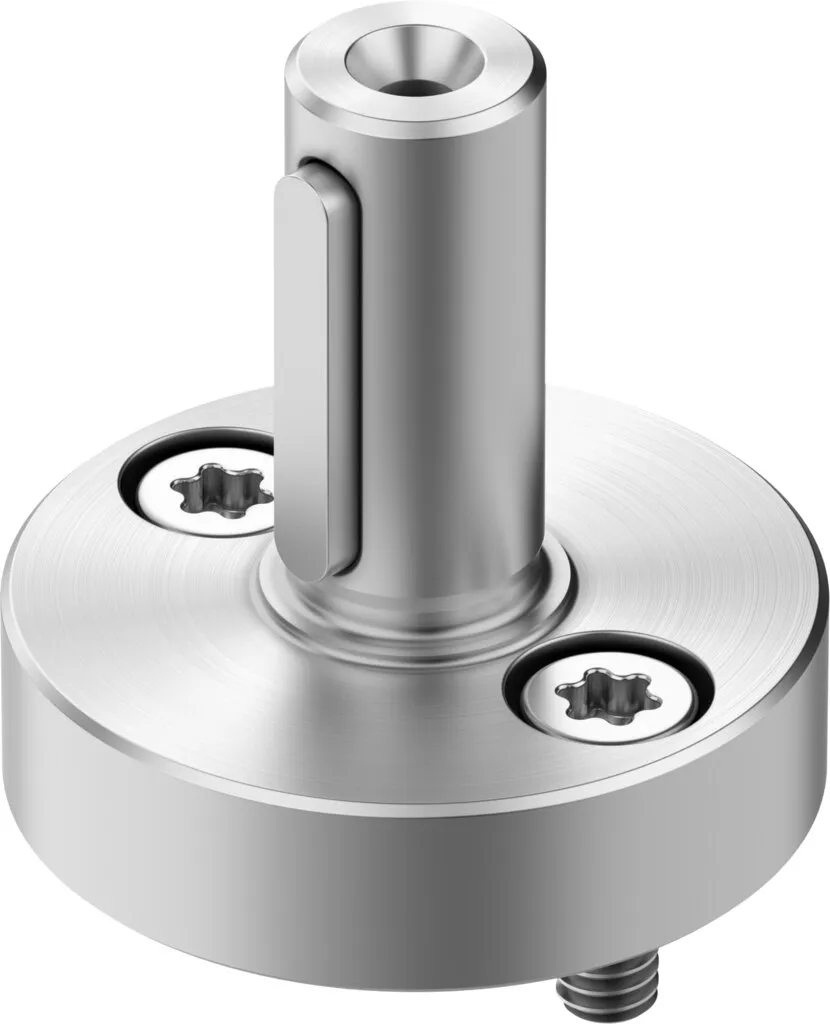

Festo DARF-Q13-16
Drive shaft adapter-DARF-Q13-16
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size |
16 |
|---|---|
| Mounting position |
optional |
| For piston diameter |
Ø16 |
| Design |
Drive shaft |
| Symbol |
00991265 |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 9 according to ISO 14644-1 |
| Storage temperature |
-20, 60 °C |
| Ambient temperature |
60 °C |
| Max. bending moment |
4 Nm |
| Max. axial load static |
140 N |
| Product weight |
75 g |
| Type of mounting |
Via through-hole and centring sleeve |
| Note on materials |
RoHS-compliant |
| Drive shaft adapter material |
Quenched and tempered steel |
