Festo DAMT-V1-32-A

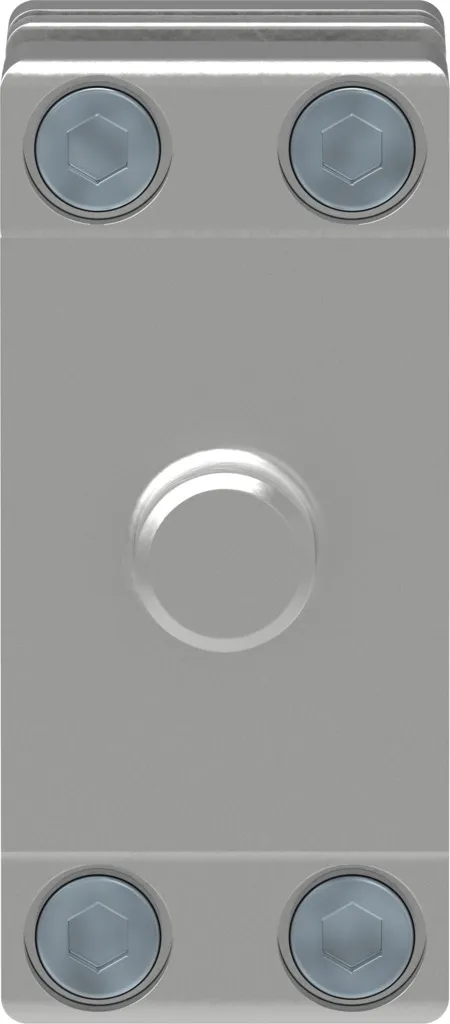

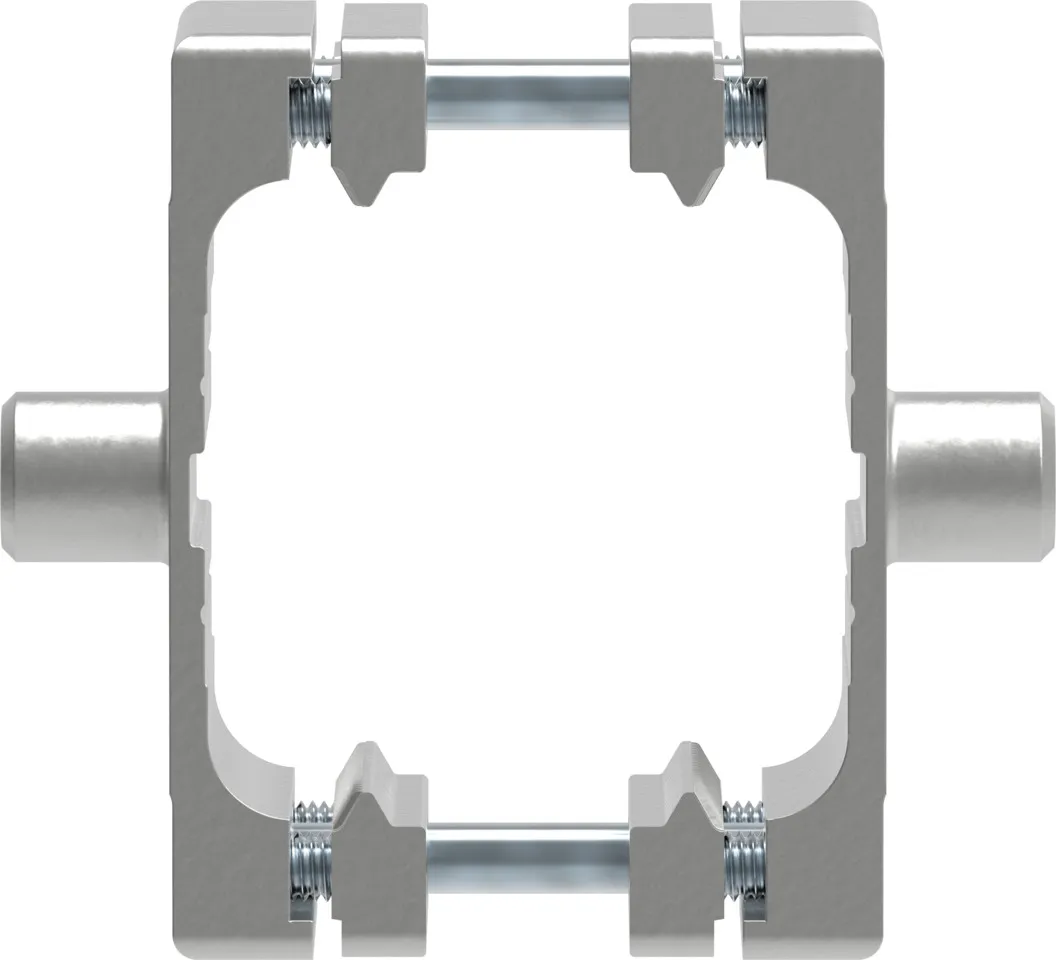

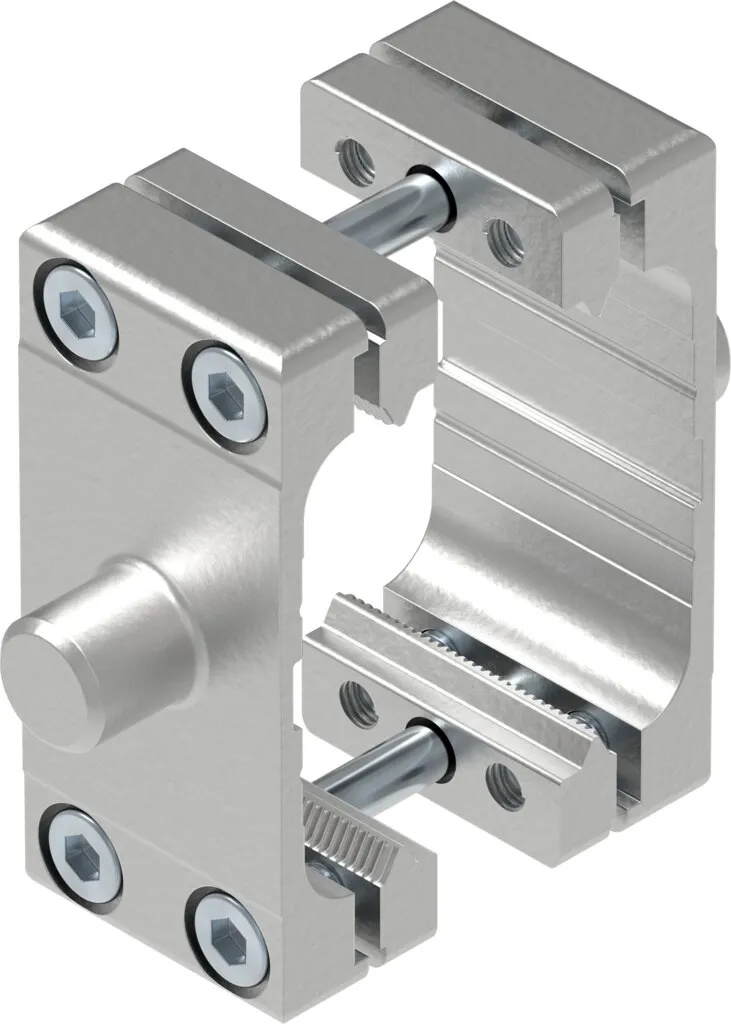

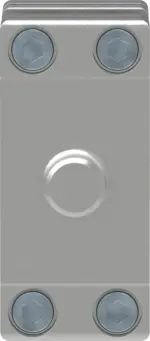

Trunnion mounting kit-DAMT-V1-32-A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 32 |
|---|---|
| Based on standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40, 150 °C |
| Max. load capacity | 0.9 kN |
| Product weight | 220 g |
| Note on materials | RoHS-compliant |
| Material screws | Steel, Galvanised |
| Material trunnion flange | Galvanised steel |
| Material clamping piece | Galvanised steel |
| Material rod | High-alloy stainless steel |
