Festo DADM-EP-G6-16

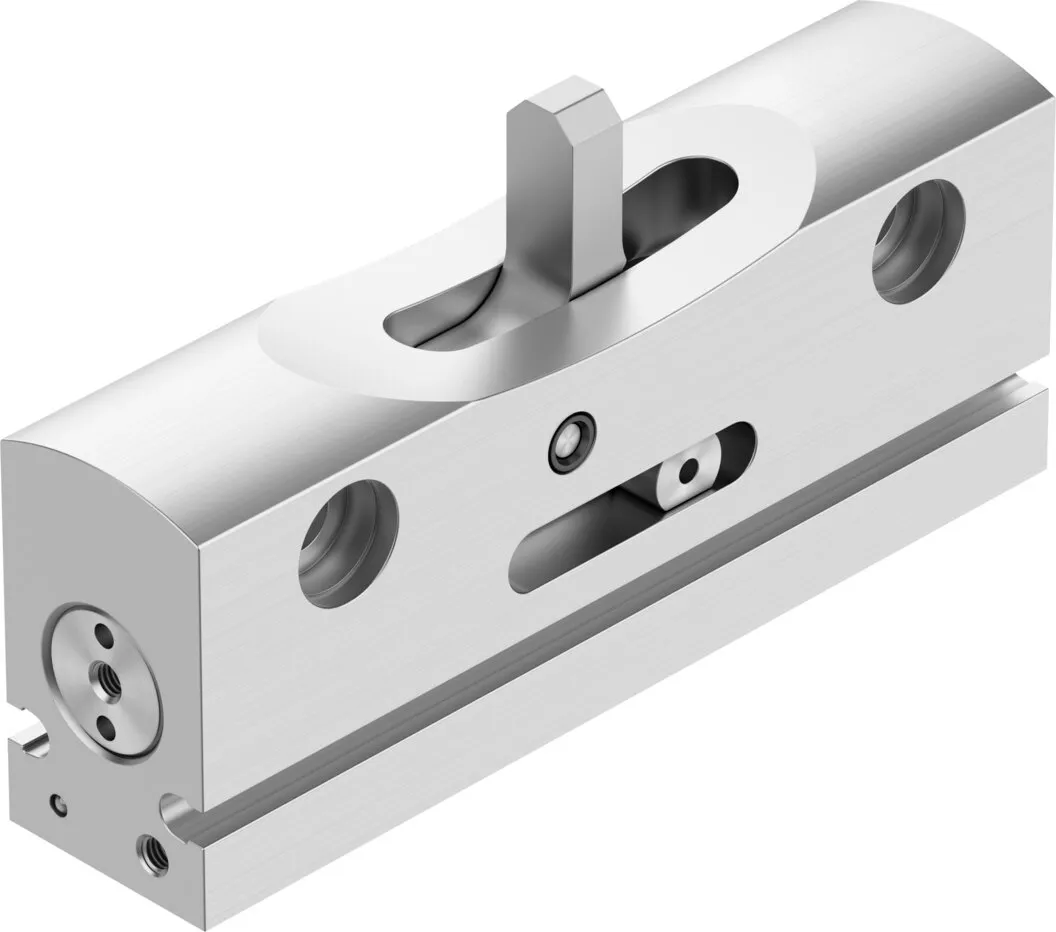

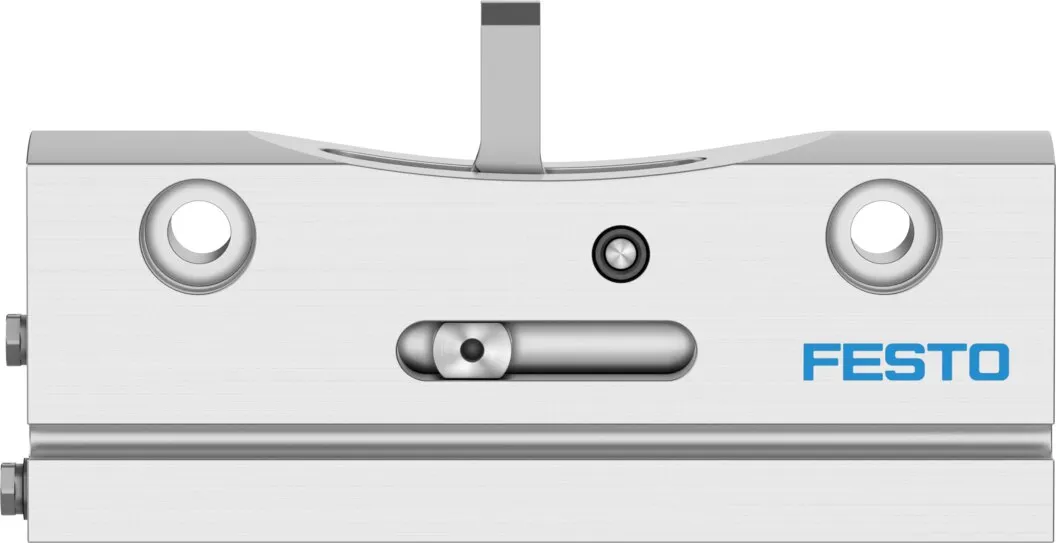

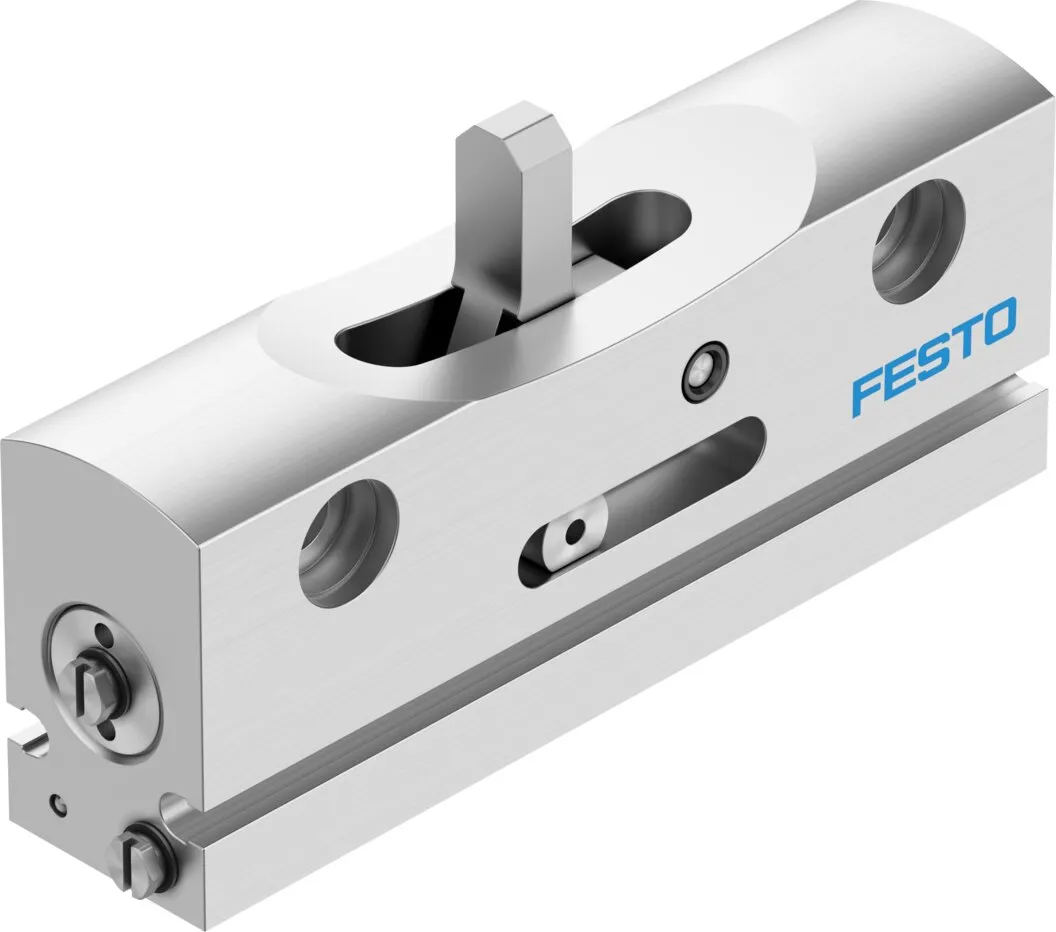

Intermediate-position module-DADM-EP-G6-16
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size |
16 |
|---|---|
| Mounting position |
optional |
| Design |
Force pilot operated motion sequence |
| Position detection |
Via proximity switch |

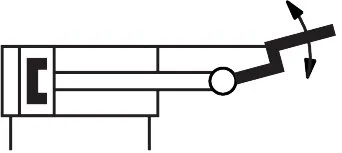

| Symbol |
00991270 |
| Operating pressure |
3, 6 bar |
| Max. impact speed |
0.8 m/s |
| Max. swivel time |
150 ms |
| Repetition accuracy |
±0.02 mm |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
60 °C |
| Max. stop force |
1100 N |
| Product weight |
340 g |
| Type of mounting |
Via through-hole and centring sleeve |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material seals |
PU |
| Material housing |
Wrought aluminium alloy |
| Material lever |
High-alloy stainless steel |
