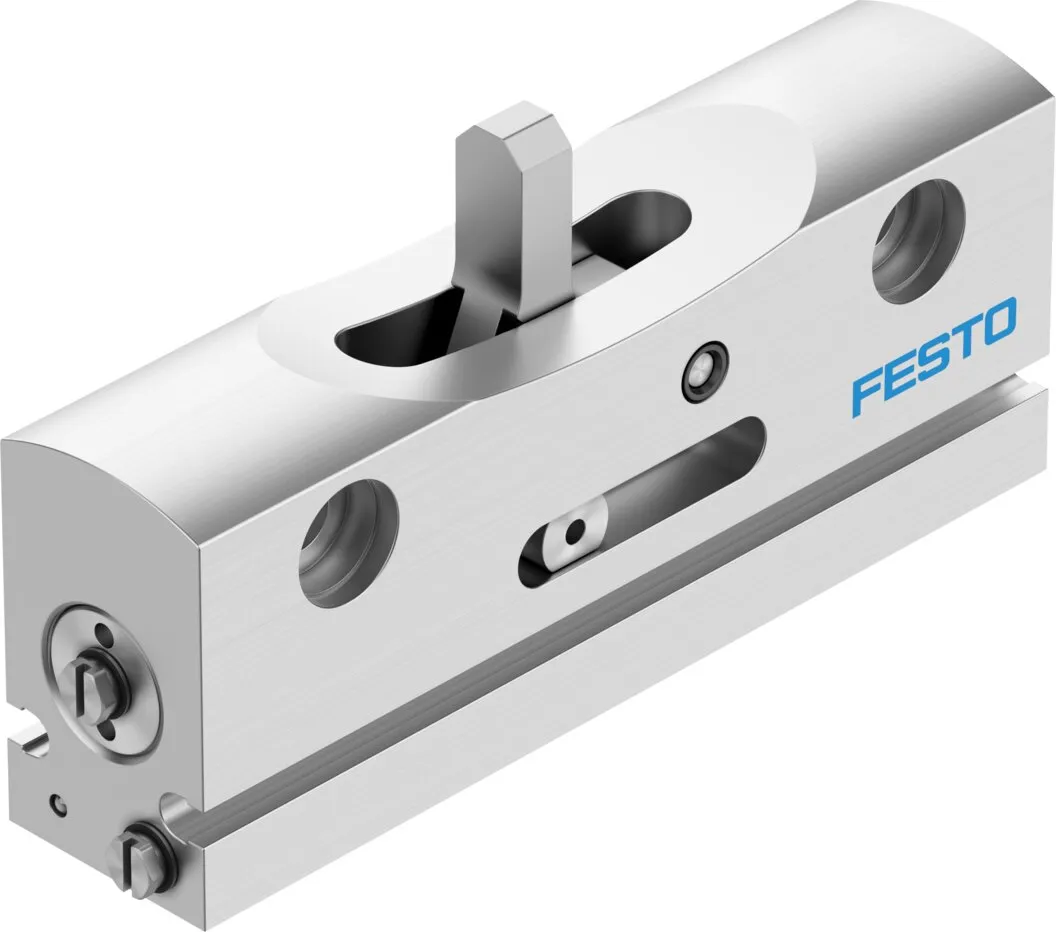

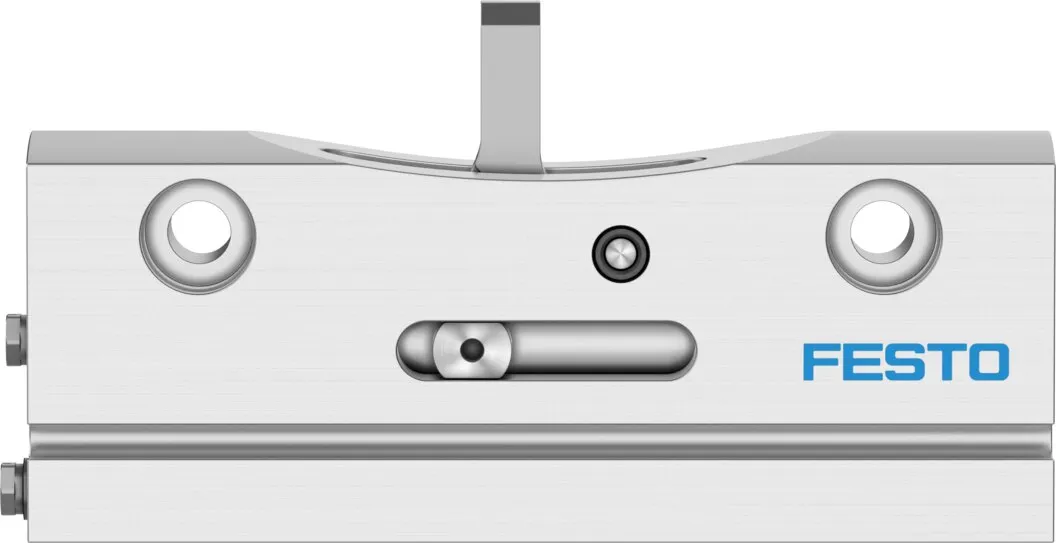

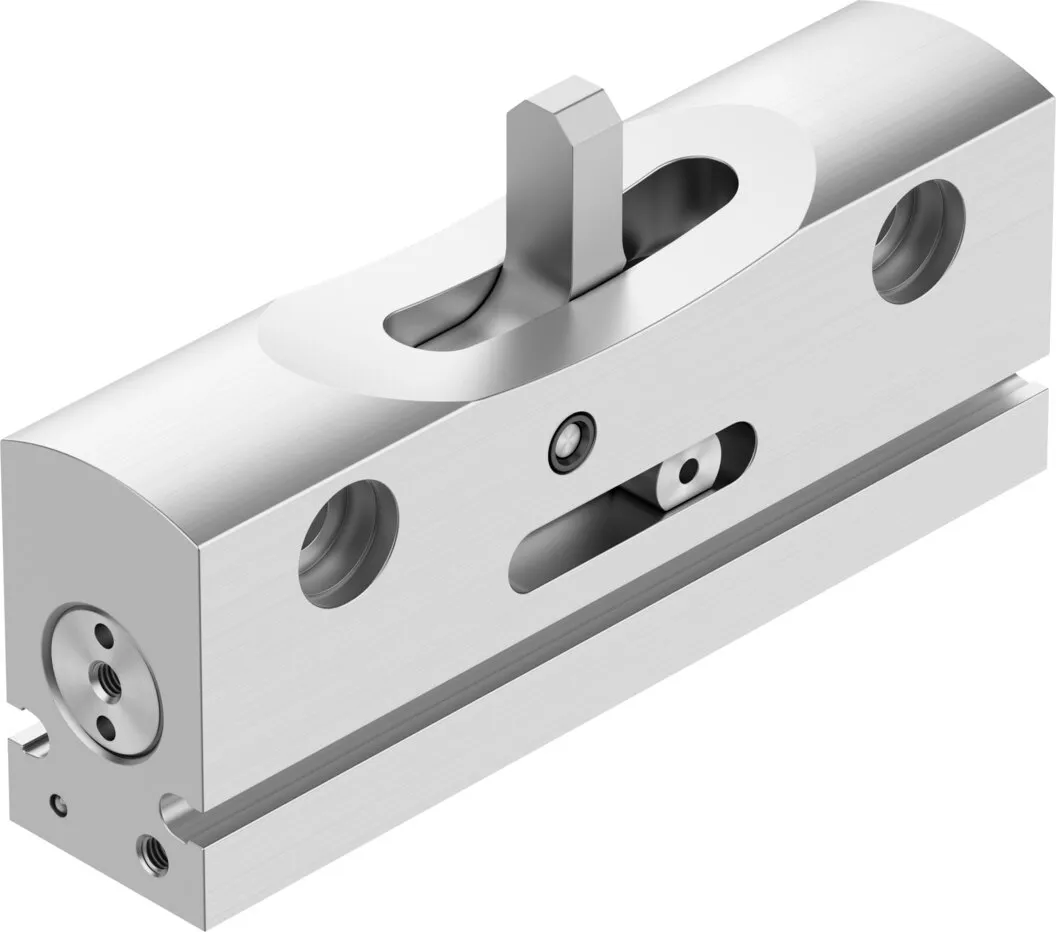

Festo DADM-EP-G6-10
Intermediate-position module-DADM-EP-G6-10
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 10 |
|---|---|
| Mounting position | optional |
| Design | Force pilot operated motion sequence |
| Position detection | Via proximity switch |

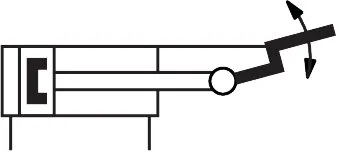

| Symbol | 00991270 |
| Operating pressure | 3, 6 bar |
| Max. impact speed | 0.8 m/s |
| Max. swivel time | 150 ms |
| Repetition accuracy | ±0.02 mm |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 60 °C |
| Max. stop force | 500 N |
| Product weight | 154 g |
| Type of mounting | Via through-hole and centring sleeve |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Material seals | PU |
| Material housing | Wrought aluminium alloy |
| Material lever | High-alloy stainless steel |
