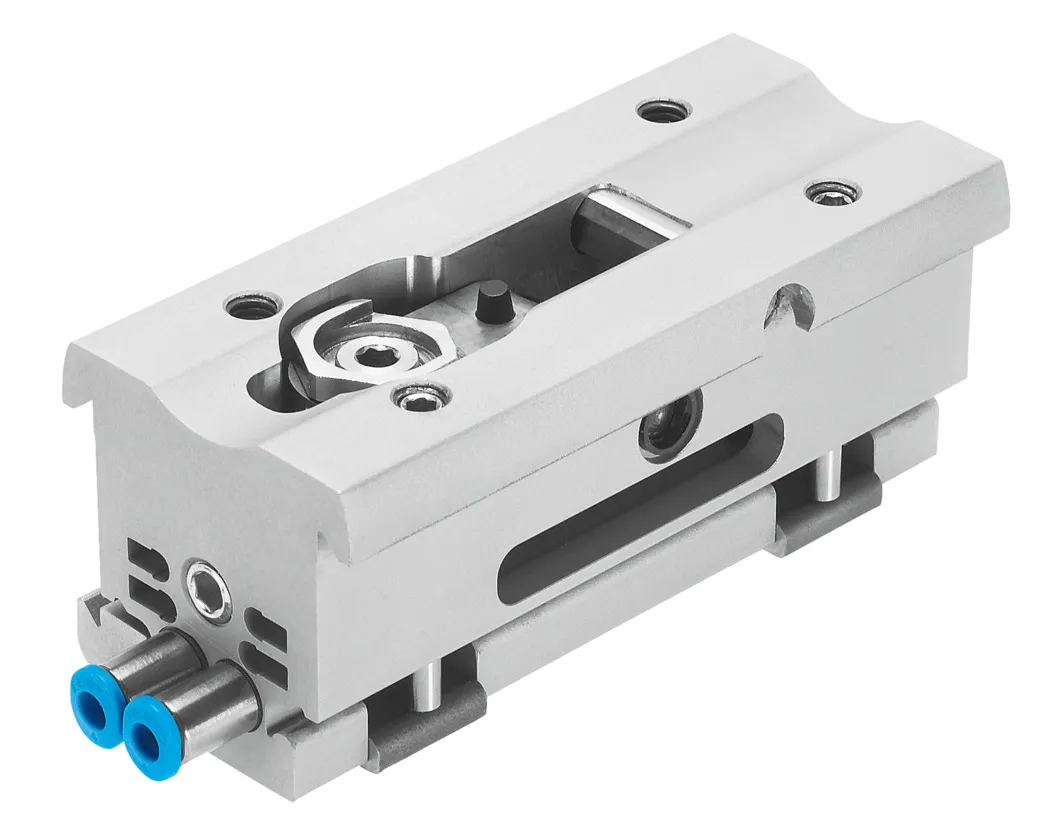

Festo DADM-DGC-25-A
Intermediate-position module-DADM-DGC-25-A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 25 |
|---|---|
| Mounting position | optional |
| Position detection | Via proximity switch |
| Operating pressure | 36.25, 116 psi |
| Max. impact speed | 3 m/s |
| Max. swivel time | 100 ms |
| Repetition accuracy | 0.02 mm |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10, 60 °C |
| Product weight | 430 g |
| Type of mounting | Clamped to cylinder DGC |
| Pneumatic connection | QS-4 |
| Note on materials | RoHS-compliant |
| Material stop screw | Steel, Galvanised |
| Material seals | NBR |
| Material housing | Anodised |
| Material lever | High-alloy stainless steel |
| Material clip | High-alloy stainless steel |
| Material nut | Steel, Galvanised |
| Fine adjustment | 2 mm |
| Mode of operation | Double-acting |
