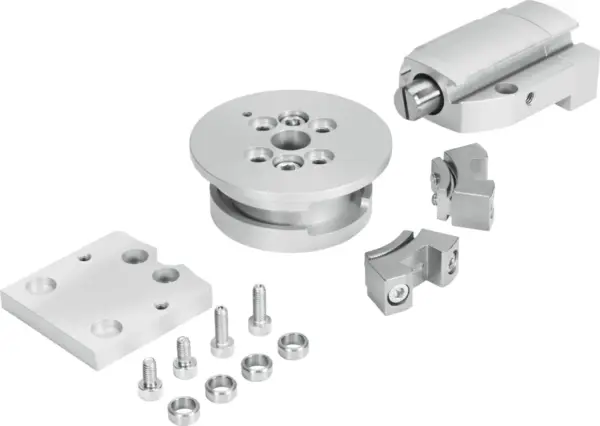

Festo DADL-EL-Q11-20
Clamping unit DADL-EL for semi-rotary drive DRRD, for mechanical locking in the end positions to prevent unwanted movement when unpressurised , Clamping component DADL-EC: for semi-rotary drive DRRD,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Clamping unit DADL-EL for semi-rotary drive DRRD, for mechanical locking in the end positions to prevent unwanted movement when unpressurised , Clamping component DADL-EC: for semi-rotary drive DRRD, for securing an intermediate position in combination with the clamping unit DADL-EL , Without drive
Specification
| Size |
20 |
|---|---|
| Rotation angle adjustment range |
60, 200 deg |
| Design |
Piston, Piston rod |
| Position detection |
Via proximity switch |
| Operating pressure |
72.5, 116 psi |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-10, 60 °C |
| Product weight |
382 g |
| Type of mounting |
Via through-hole and centring sleeve |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material mounting |
Aluminium, Anodised |
| Material seals |
NBR, TPE-U(PU) |
| Material housing |
Hard anodised |
| Material housing cover |
Aluminium, Anodised |
| Material bearing |
Polymer |
| Material disc |
Aluminium, Anodised |
| Material screws |
Steel, Galvanised |
| Mode of operation |
Single-acting, Pulling |
