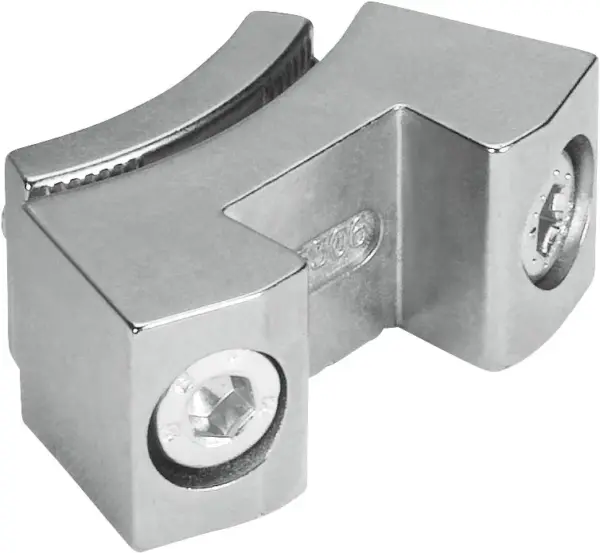

Festo DADL-EC-Q11-32
Clamping unit DADL-EL for semi-rotary drive DRRD, for mechanical locking in the end positions to prevent unwanted movement when unpressurised , Clamping component DADL-EC: for semi-rotary drive DRRD,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Clamping unit DADL-EL for semi-rotary drive DRRD, for mechanical locking in the end positions to prevent unwanted movement when unpressurised , Clamping component DADL-EC: for semi-rotary drive DRRD, for securing an intermediate position in combination with the clamping unit DADL-EL , Without drive
Specification
| Size | 32 |
|---|---|
| Design | For T-slot |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10, 60 °C |
| Product weight | 67 g |
| Type of mounting | Screw-clamped, Clamped in T-slot |
| Note on materials | RoHS-compliant |
| Material screws | Steel, Galvanised |
