Festo DADG-FM-VDE1G18

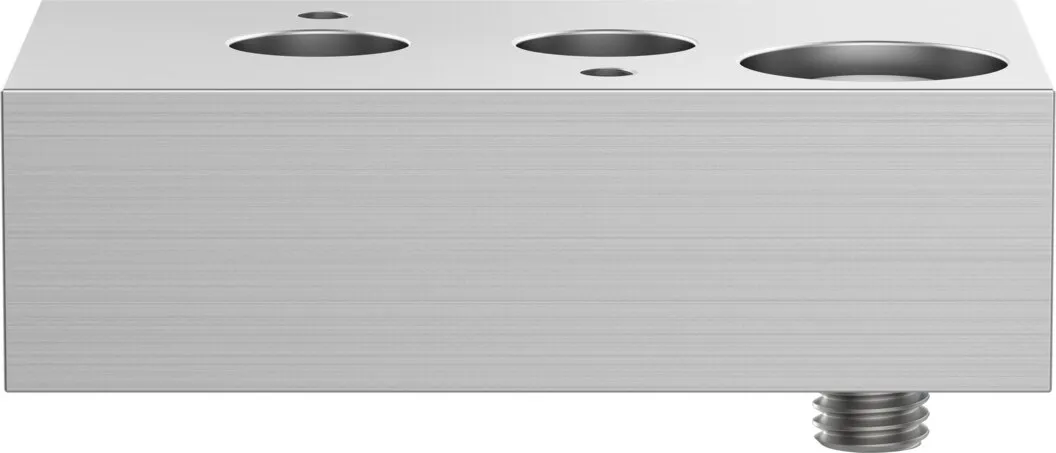

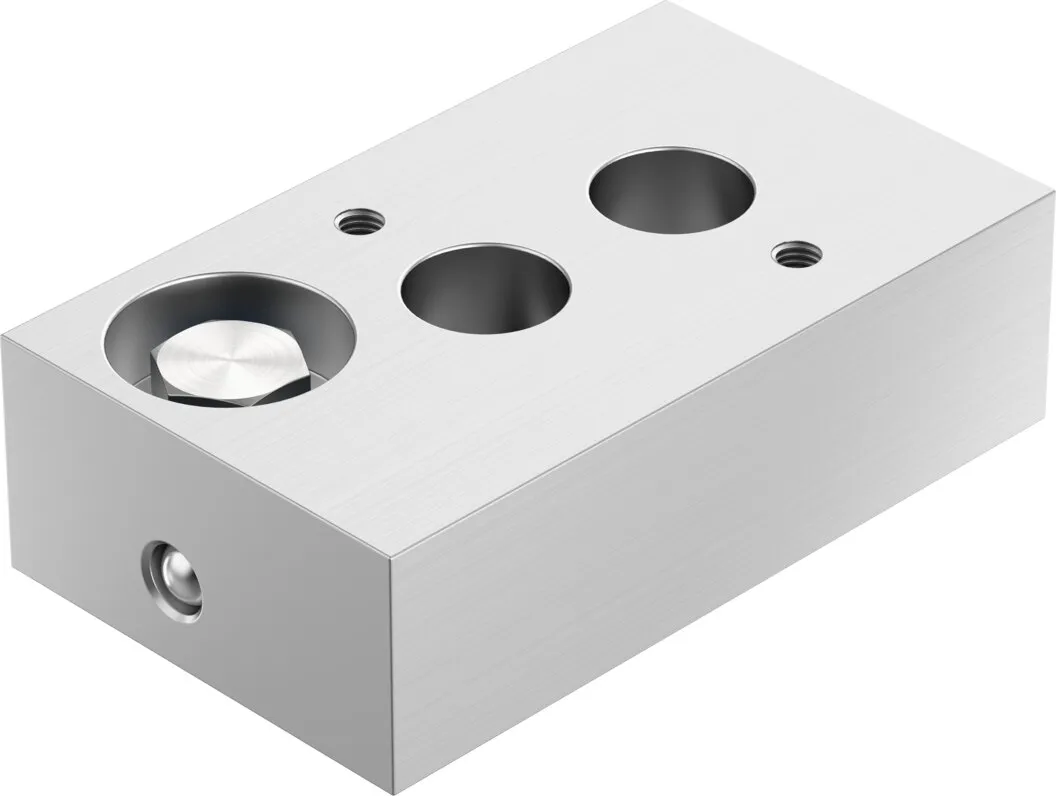

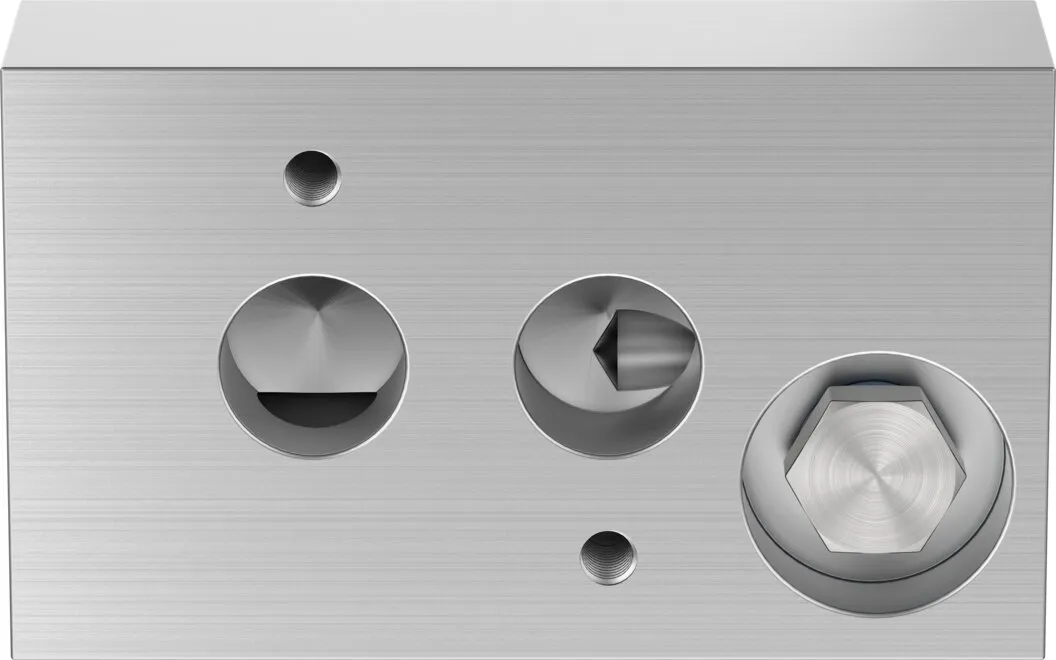

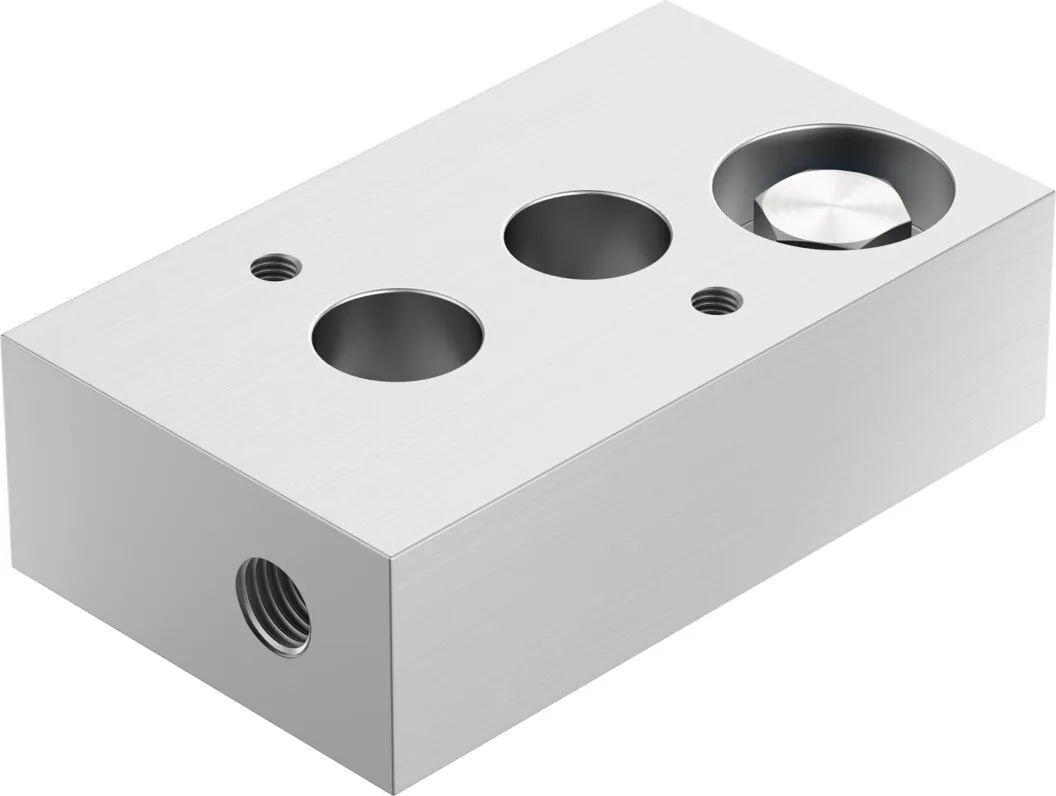

Control plate-DADG-FM-VDE1G18
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Based on standard |
VDI/VDE 3845 (NAMUR) |
|---|---|
| Mounting position |
optional |
| Operating pressure |
2, 8 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Ambient temperature |
-20, 80 °C |
| Max. tightening torque |
9 Nm |
| Product weight |
227 g |
| Type of mounting |
Direct mounting on end cap via thread |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR, High-alloy stainless steel |
| Material housing |
Anodised aluminium |
| Material screws |
Nickel-plated brass |
