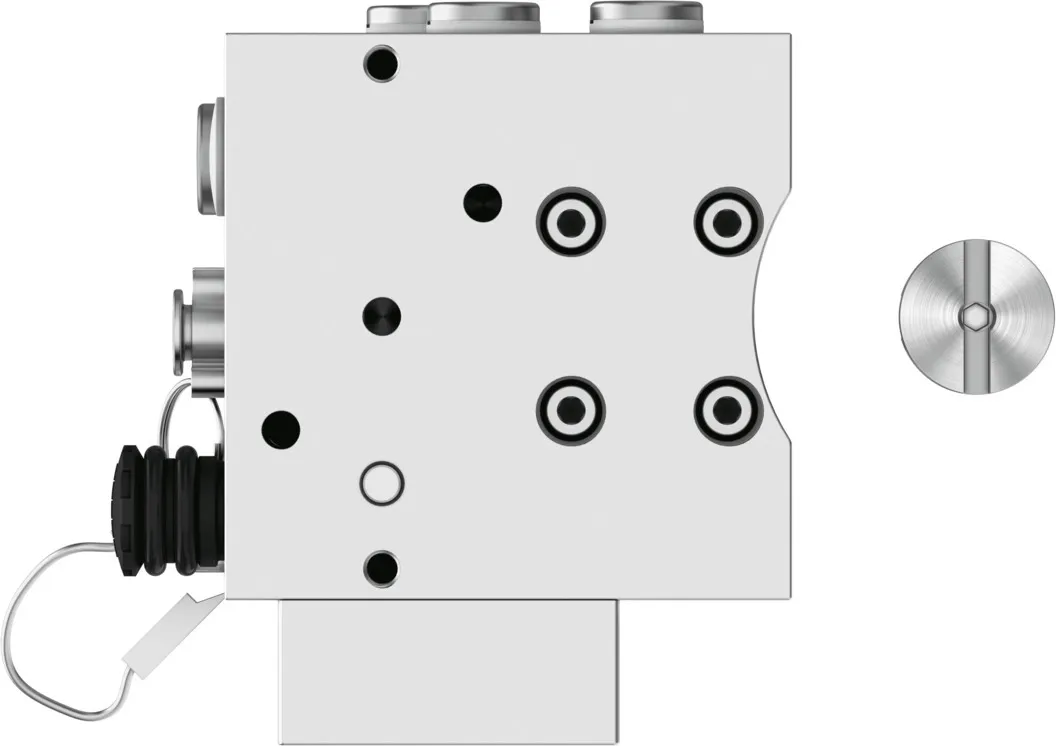

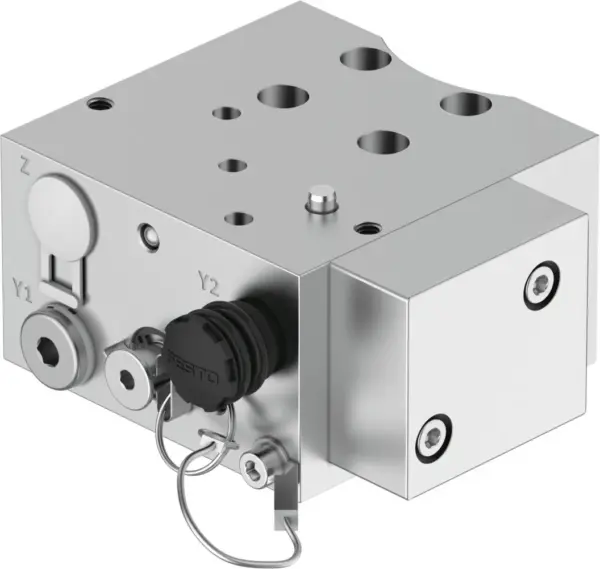

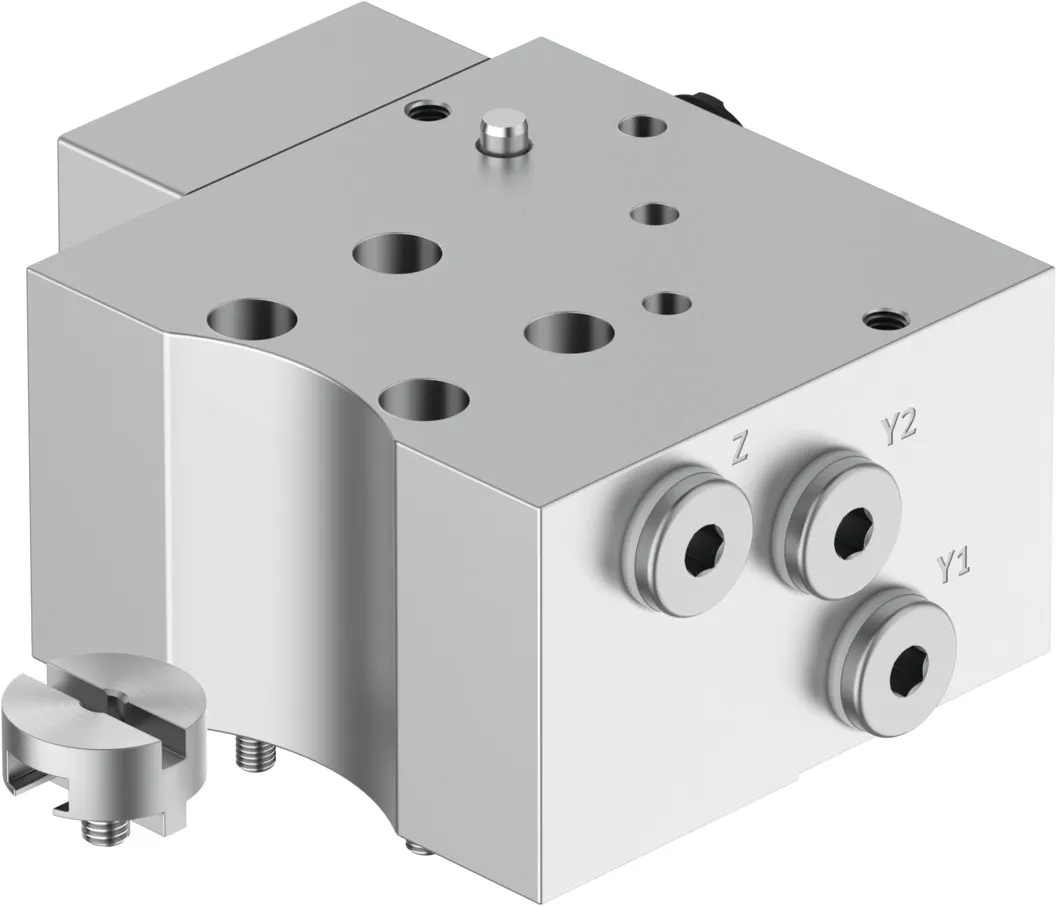

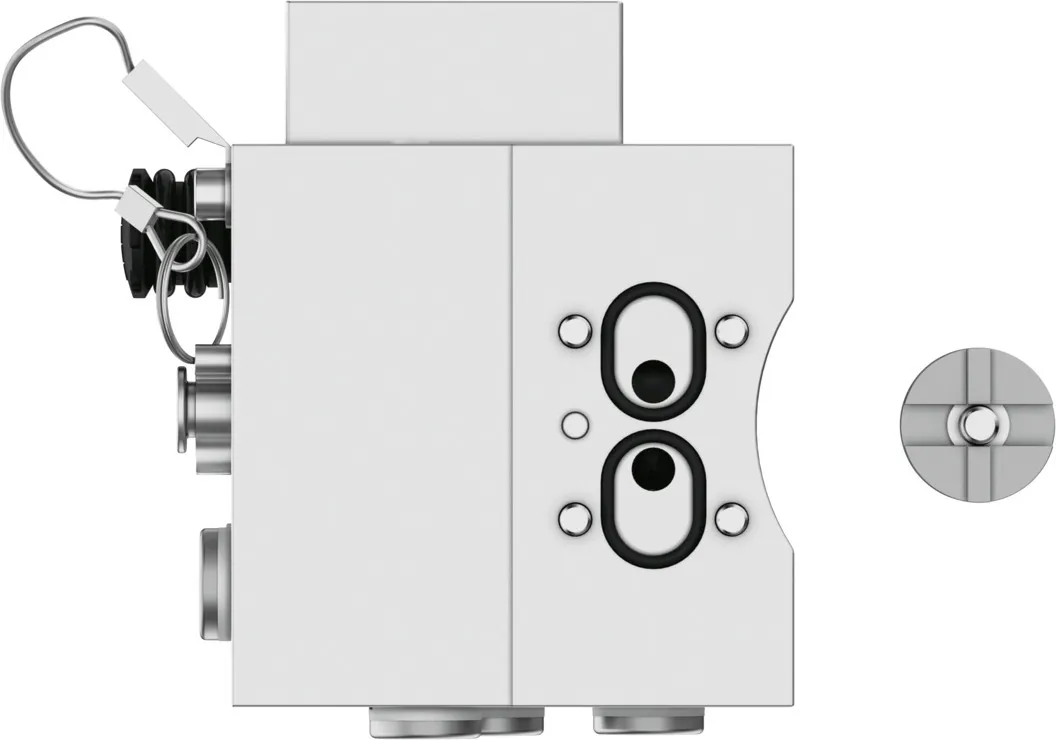

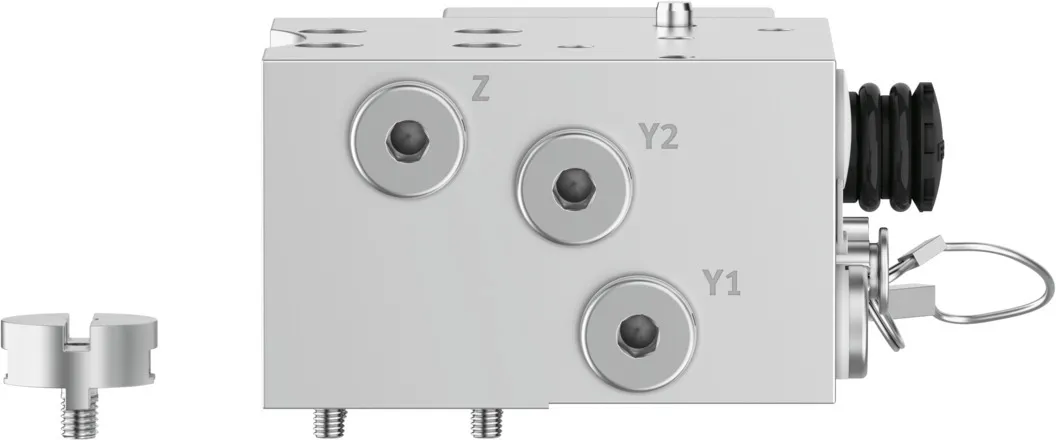

Festo DADG-FM-F9-VDE2
Control plate-DADG-FM-F9-VDE2
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Based on standard |
VDI/VDE 3845 (NAMUR), VDI/VDE 3847-2 |
|---|---|
| Mounting position |
optional |
| Operating pressure |
29, 116 psi |
| Nominal operating pressure |
87 psi |
| Explosion protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Ambient temperature |
-20, 80 °C |
| Product weight |
1340 g |
| Pneumatic connection |
G1/4 |
| Note on materials |
RoHS-compliant |
| Material seals |
EPDM, NBR |
| Material threaded pin |
High-alloy stainless steel |
| Material plate |
Anodised wrought aluminium alloy |
| Material screws |
High-alloy stainless steel |
