Festo DADG-D-F8-40

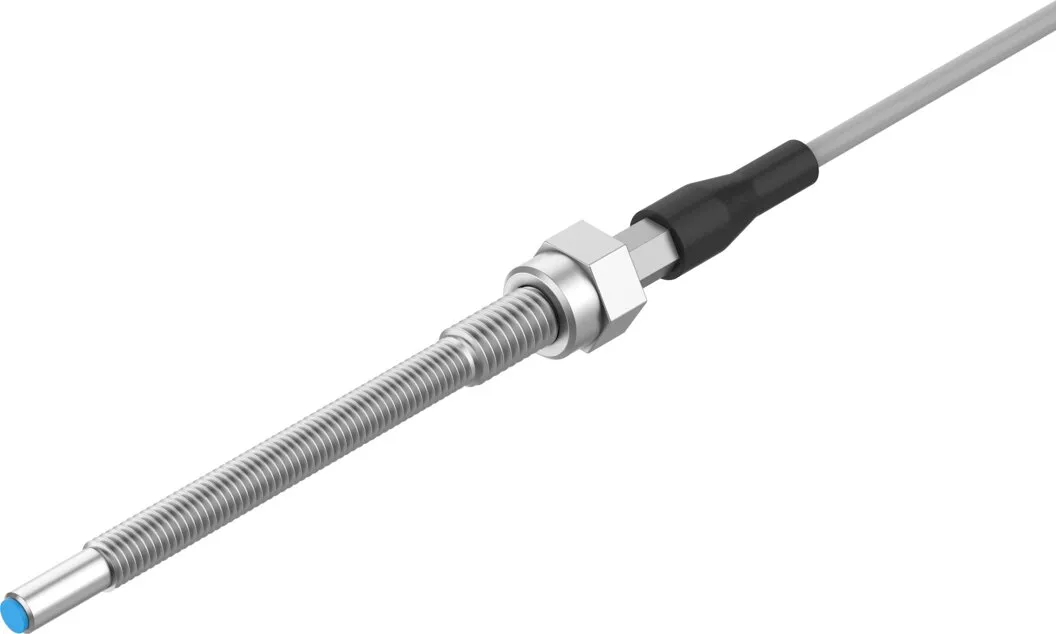

Proximity switch-DADG-D-F8-40
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Conforms to standard |
EN 60947-5-2 |
|---|---|
| Symbol |
00991702 |
| Approval |
RCM trademark |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC |
| Note on materials |
RoHS-compliant |
| Rated operating distance |
0.6 mm |
| Assured operating distance |
0.64 mm |
| Reduction factors |
Aluminium = 0.55, Stainless steel St 18/8 = 0.8, Copper = 0.5, Brass = 0.65, Steel St 37 = 1.0 |
| Ambient temperature |
-25, 70 °C |
| Repetition accuracy |
0.01 mm |
| Switching output |
PNP |
| Switching element function |
N/O contact |
| Max. switching frequency |
5000 Hz |
| Max. switching frequency DC |
5000 Hz |
| Max. output current |
100 mA |
| Voltage drop |
2 V |
| Short circuit current rating |
Pulsed |
| Operational voltage range DC |
10, 30 V |
| Residual ripple |
10 % |
| No-load supply current |
10 mA |
| Reverse polarity protection |
For all electrical connections |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connector system |
Open end |
| Electrical connection 1, number of connections/cores |
3 |
| Cable length |
2 m |
| Material cable sheath |
TPE-U(PUR) |
| Size |
M4 |
| Type of mounting |
Screw-clamped |
| Mounting type |
Flush |
| Product weight |
32 g |
| Material housing |
Steel |
| Degree of protection |
IP67 |
| LABS (PWIS) conformity |
VDMA24364 zone III |
