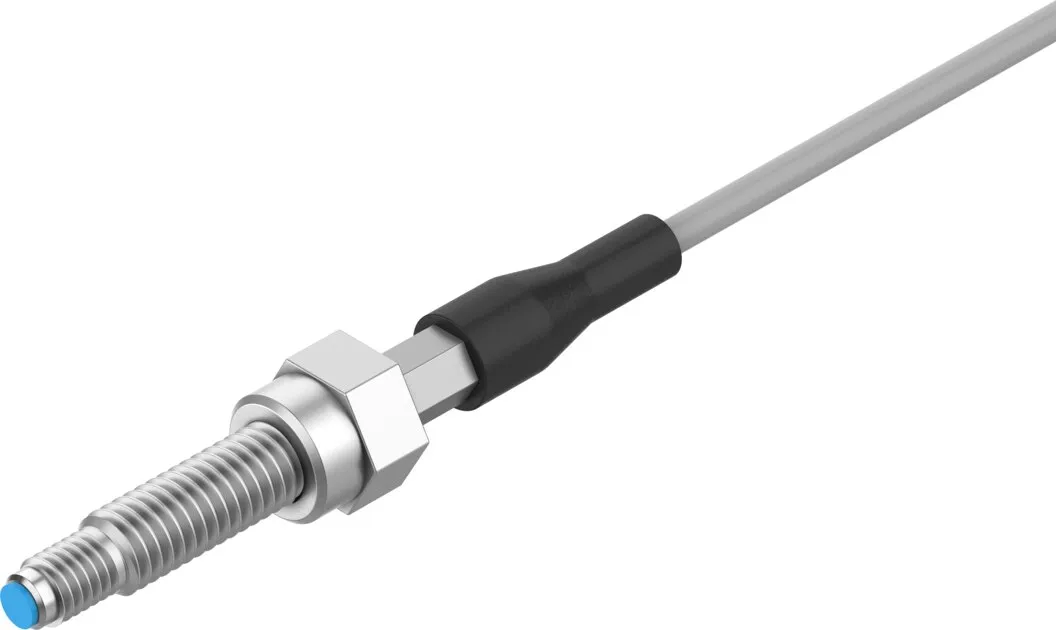

Festo DADG-D-F8-16/20
Proximity switch-DADG-D-F8-16/20
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Conforms to standard | EN 60947-5-2 |
|---|---|
| Symbol | 00991702 |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Note on materials | RoHS-compliant |
| Rated operating distance | 0.6 mm |
| Assured operating distance | 0.64 mm |
| Reduction factors | Aluminium = 0.55, Stainless steel St 18/8 = 0.8, Copper = 0.5, Brass = 0.65, Steel St 37 = 1.0 |
| Ambient temperature | -25, 70 °C |
| Repetition accuracy | 0.01 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 5000 Hz |
| Max. switching frequency DC | 5000 Hz |
| Max. output current | 100 mA |
| Voltage drop | 2 V |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10, 30 V |
| Residual ripple | 10 % |
| No-load supply current | 10 mA |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connector system | Open end |
| Electrical connection 1, number of connections/cores | 3 |
| Cable length | 2 m |
| Material cable sheath | TPE-U(PUR) |
| Size | M4 |
| Type of mounting | Screw-clamped |
| Mounting type | Flush |
| Product weight | 26 g |
| Material housing | Steel |
| Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364 zone III |
