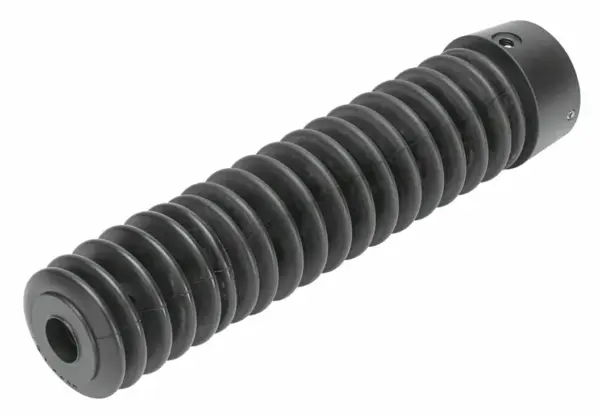

Festo DADB-V6-40-S426-475
Sustainable thanks to extended life cycle and easier repairs
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sustainable thanks to extended life cycle and easier repairs
Specification
| Outside diameter |
46 mm |
|---|---|
| Size |
40 |
| Stroke range |
426, 475 mm |
| Piston rod extension |
130 mm |
| Design |
With ducted exhaust air |
| Mounting position |
optional |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media resistance |
Dust, Chips, Oils, Grease, Petrol |
| Degree of protection |
IP54 |
| Ambient temperature |
-10, 80 °C |
| Product weight |
144 g |
| Type of mounting |
Push-on, Via threaded pin |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material adapter components |
PA-reinforced |
| Material seals |
NBR |
| Material bellows |
NBR |
| Material threaded pin |
High-alloy stainless steel |
