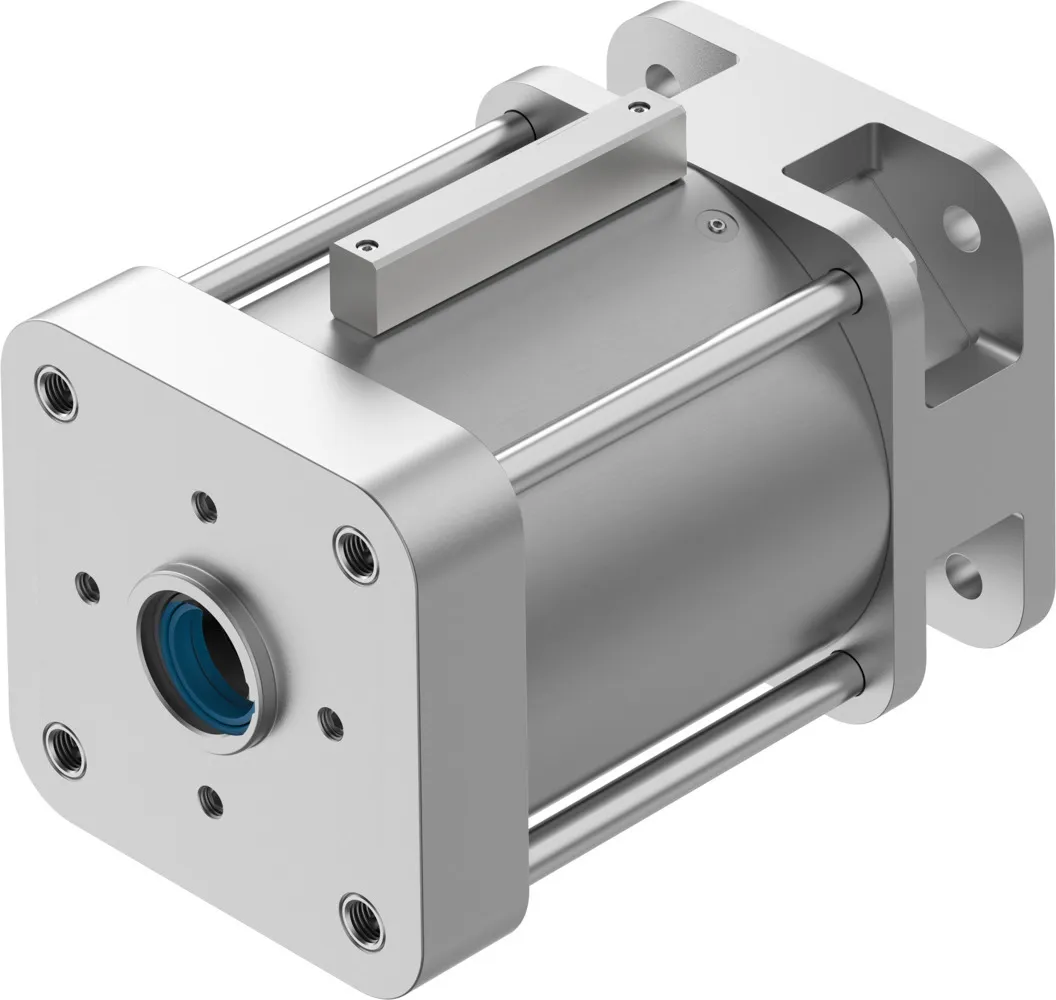

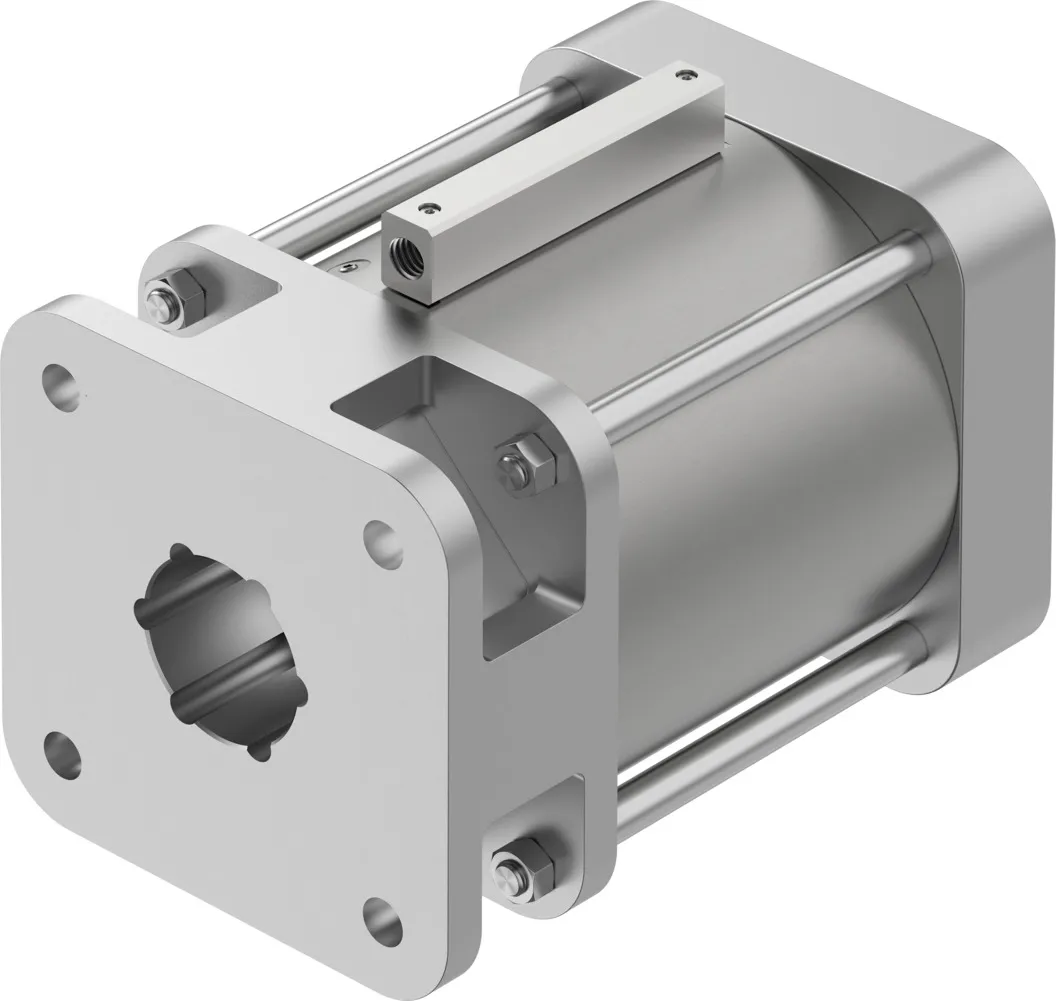

Festo DACS-40-A-R3-S
Holding function: retains the piston rod by clamping with frictional locking , Emergency braking function: stops the movement of the piston rod by clamping with frictional locking , With safety functi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Holding function: retains the piston rod by clamping with frictional locking , Emergency braking function: stops the movement of the piston rod by clamping with frictional locking , With safety functions , Compact design , Optional: high level of corrosion protection , For position sensing
Specification
| Mounting position |
optional |
|---|---|
| Type of clamping with direction of action |
on both sides, Clamping via spring force, released via compressed air |
| Symbol |
00992086 |
| Position detection |
Via proximity switch |
| Safety function |
Holding and stopping a movement |
| Performance Level (PL) |
Stopping, holding, blocking a movement/category 1, Performance Level c |
| Operating pressure |
55.1, 116 psi |
| Max. permissible test pressure |
8 bar |
| Min. release pressure |
3.8 bar |
| Round material to be clamped |
40 mm |
| Approval |
German Technical Control Board (TÜV) |
| CE mark (see declaration of conformity) |
To EC Machinery Directive |
| UKCA marking (see declaration of conformity) |
To UK regulations for machines |
| Explosion protection |
The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Certificate issuing authority |
German Technical Control Board (TÜV) CA 697 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Ambient temperature |
-20, 80 °C |
| Static holding force |
17000 N |
| Product weight |
34500 g |
| Type of mounting |
Via female thread, With accessories |
| Release connection, clamping unit |
G3/8 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR, TPE-U(PU) |
| Material spring |
High-alloy steel |
| Material housing |
Steel |
| Material clamp jaws |
Tool steel |
| Material piston |
Steel |
