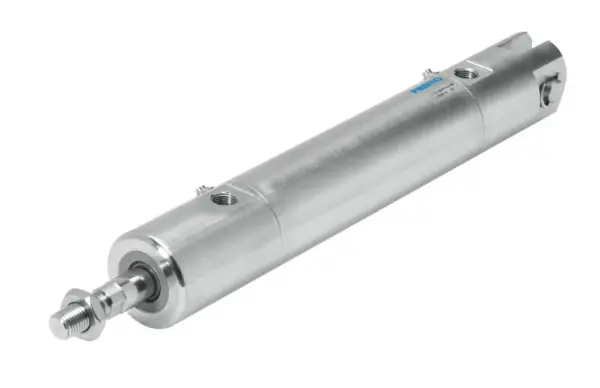

Festo CRHD-50- -PPV-A-MC-S6
Corrosion resistant against aggressive ambient conditions , Easy-to-clean design, optimised for very exacting demands , Flexible design thanks to different end caps , Piston rod with male thread , For…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Corrosion resistant against aggressive ambient conditions , Easy-to-clean design, optimised for very exacting demands , Flexible design thanks to different end caps , Piston rod with male thread , For position sensing
Specification
| Stroke |
10, 500 mm |
|---|---|
| Piston diameter |
50 mm |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Design |
Piston, Piston rod |
| Position detection |
Via proximity switch |
| Symbol |
00991235 |
| Variants |
Heat-resistant seals max. 120°C |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-20, 120 °C |
| Cushioning length |
21 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
990 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
1178 N |
| Moving mass for 0 mm stroke |
340 g |
| Additional moving mass per 10 mm stroke |
25 g |
| Basic weight for 0 mm stroke |
1792 g |
| Additional weight per 10 mm stroke |
57 g |
| Pneumatic connection |
G1/4 |
| Material cover |
High-alloy stainless steel |
| Material seals |
FPM |
| Material housing |
High-alloy stainless steel |
| Material piston rod |
High-alloy stainless steel |
