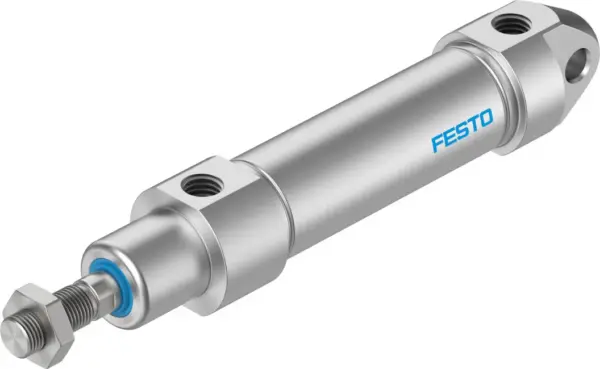

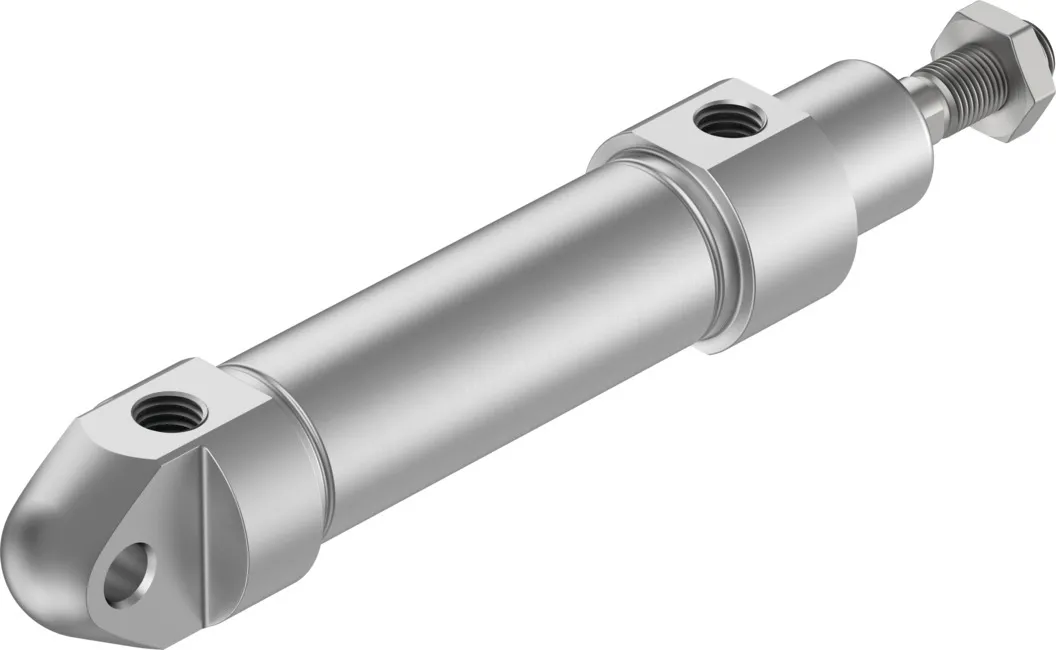

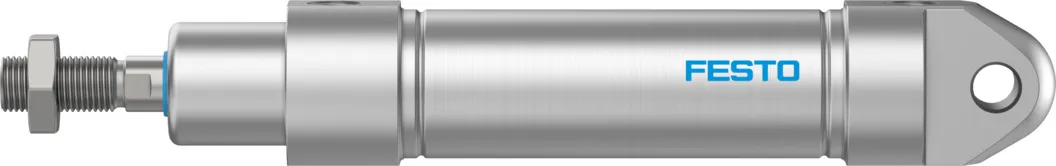

Festo CRDSNU-B-25-80-PPS-A-MG-A1
Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Long service life thanks to optional dry-running seal , Wide range of variants for customised applications , Self-adj…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Long service life thanks to optional dry-running seal , Wide range of variants for customised applications , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Suitable for direct contact with food according to European Regulation (EC) No. 1935/2004 , FDA-compliant seal and NSF-H1 lubrication
Specification
| Stroke |
80 mm |
|---|---|
| Piston diameter |
25 mm |
| Based on standard |
ISO 6432 |
| Cushioning |
Self-adjusting pneumatic end-position cushioning |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |
| Symbol |
00992970 |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
4 – Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
80 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
247 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
295 N |
| Moving mass for 0 mm stroke |
73 g |
| Additional moving mass per 10 mm stroke |
6.2 g |
| Basic weight for 0 mm stroke |
410 g |
| Additional weight per 10 mm stroke |
11 g |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
High-alloy stainless steel |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
