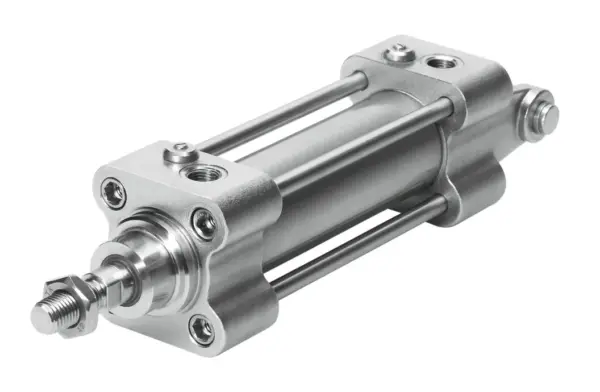

Festo CRDNGS-125- -PPV-A-S6
ISO 15552 (ISO 6431, VDMA 24562) , Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Variants: through piston rod, heat-resistant design , Threaded mounting, mounting…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 (ISO 6431, VDMA 24562) , Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Variants: through piston rod, heat-resistant design , Threaded mounting, mounting via accessories , For position sensing
Specification
| Stroke | 10, 2000 mm |
|---|---|
| Piston diameter | 125 mm |
| Piston rod thread | M27x2 |
| Based on standard | ISO 15552 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Piston-rod end | Male thread |
| Design | Piston, Piston rod, Swivel clevis, Tie rod, Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 0.6, 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 4 – Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | 120 °C |
| Cushioning length | 40 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 6881 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 7363 N |
| Moving mass for 0 mm stroke | 2523 g |
| Additional moving mass per 10 mm stroke | 64 g |
| Basic weight for 0 mm stroke | 16543 g |
| Additional weight per 10 mm stroke | 156 g |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | G1/2 |
| Material cover | Stainless steel casting |
| Material seals | FPM |
| Material housing | High-alloy stainless steel |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Material bearing | Metal polymer compound |
| Material collar nut | High-alloy stainless steel |
| Material tie rod | High-alloy stainless steel |
