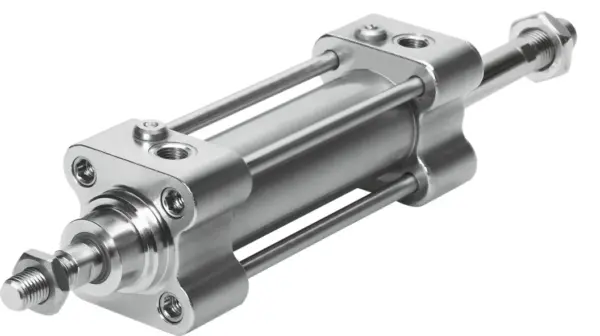

Festo CRDNG-40- -PPV-A-S2
ISO 15552 (ISO 6431, VDMA 24562) , Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Variants: through piston rod, heat-resistant design , Threaded mounting, mounting…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 (ISO 6431, VDMA 24562) , Corrosion resistant against aggressive ambient conditions , Easy-to-clean design , Variants: through piston rod, heat-resistant design , Threaded mounting, mounting via accessories , For position sensing
Specification
| Stroke |
10, 2000 mm |
|---|---|
| Piston diameter |
40 mm |
| Piston rod thread |
M12x1.25 |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 15552 |
| Piston-rod end |
Male thread |
| Design |
Piston, Piston rod, Tie rod, Cylinder barrel |
| Position detection |
Via proximity switch |

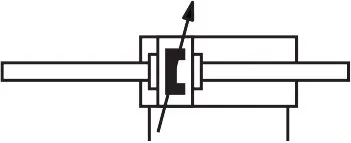

| Symbol |
00991237 |
| Variants |
Through piston rod |
| Operating pressure |
0.6, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
4 – Very high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-20, 80 °C |
| Cushioning length |
21 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
633 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
633 N |
| Moving mass for 0 mm stroke |
363 g |
| Additional moving mass per 10 mm stroke |
32 g |
| Basic weight for 0 mm stroke |
1519 g |
| Additional weight per 10 mm stroke |
49 g |
| Type of mounting |
Via female thread, With accessories |
| Pneumatic connection |
G1/4 |
| Material cover |
Stainless steel casting |
| Material seals |
TPE-U(PU) |
| Material housing |
High-alloy stainless steel |
| Material piston |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
| Material nut |
High-alloy stainless steel |
| Material bearing |
POM |
| Material collar nut |
High-alloy stainless steel |
| Material tie rod |
High-alloy stainless steel |
