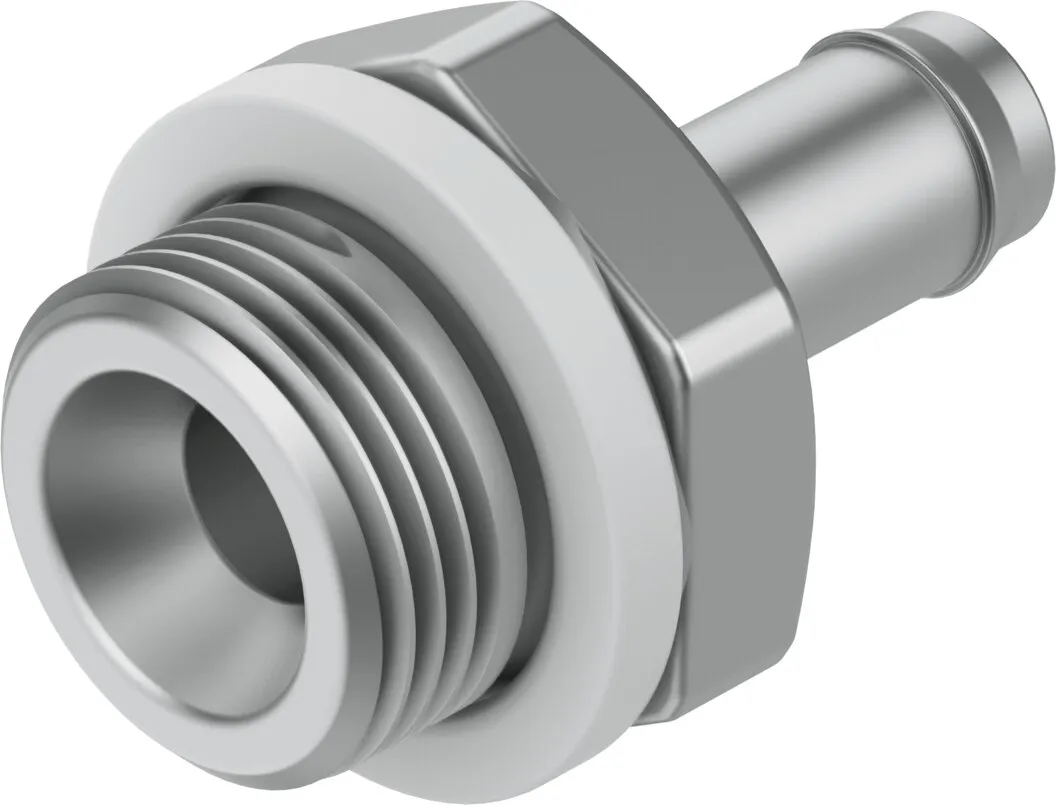

Festo CRCN-M5-PK-4
Operating medium: compressed air, vacuum , Brass, POM, aluminium or stainless steel , Straight shape, T-shape, L-shape, Y-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Operating medium: compressed air, vacuum , Brass, POM, aluminium or stainless steel , Straight shape, T-shape, L-shape, Y-shape
Specification
| Nominal size | 2.5 mm |
|---|---|
| Type of seal on screwed plug | Sealing ring |
| Size of pack | 10 |
| Operating pressure complete temperature range | -0.95, 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | 60 °C |
| Product weight | 2.58 g |
| Pneumatic connection, port 1 | Male thread M5 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Note on materials | RoHS-compliant |
| Material housing | High-alloy stainless steel |
| Material thread seal | NBR, High-alloy stainless steel |
