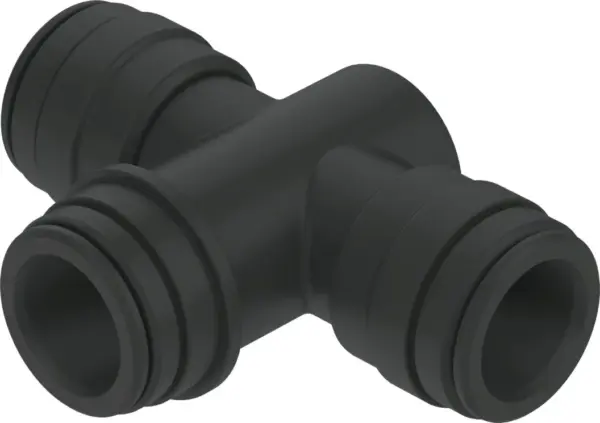

Festo CQA-22
Assembling and disassembling without tools , For pipes PQ-PA, PQ-AL and tubing PAN and PUN , Sturdy, air-tight connection , Straight design, T-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Assembling and disassembling without tools , For pipes PQ-PA, PQ-AL and tubing PAN and PUN , Sturdy, air-tight connection , Straight design, T-shape
Specification
| Nominal size |
12 mm |
|---|---|
| Mounting position |
optional |
| Size of pack |
1 |
| Design |
Push-pull principle |
| Operating pressure complete temperature range |
-0.95, 7 bar |
| Temperature-dependent operating pressure |
-0.95, 15 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitable for use with food |
See supplementary material information |
| Media temperature |
-25, 75 °C |
| Ambient temperature |
-25, 70 °C |
| Product weight |
76 g |
| Pneumatic connection, port 1 |
For pipe/tubing O.D. 22 mm |
| Pneumatic connection, port 2 |
For pipe/tubing outside diameter of 22 mm |
| Note on materials |
RoHS-compliant |
| Material housing |
POM |
| Material release ring |
POM |
| Material tubing clamp component |
High-alloy stainless steel |
