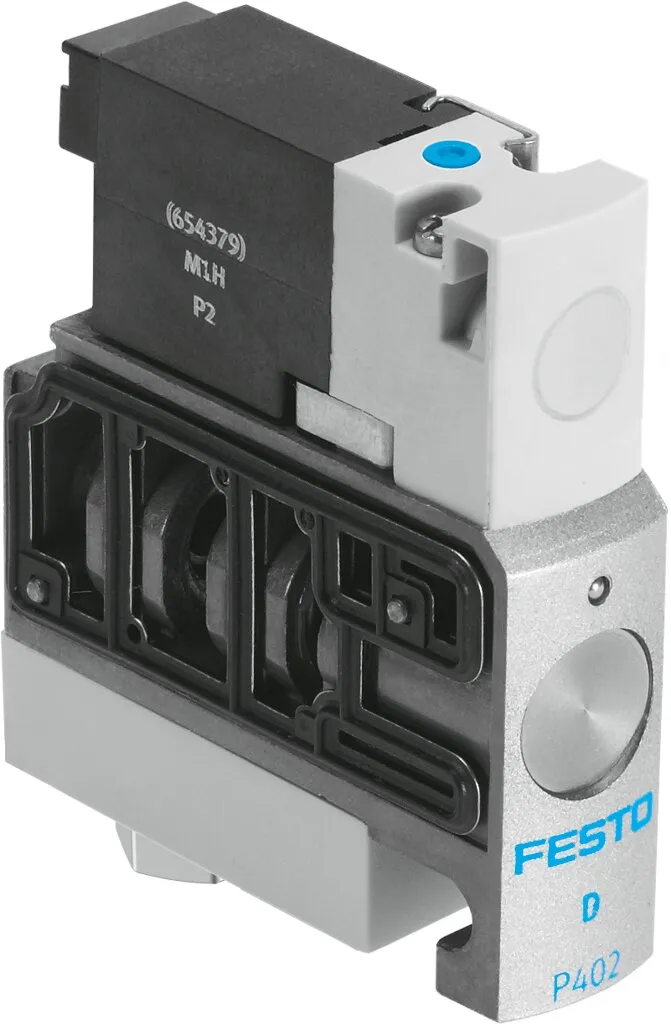

Festo CPVSC1-M5H-K-H-M5C
Solenoid valve-CPVSC1-M5H-K-H-M5C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Valve function |
3/2-way, closed, monostable |
|---|---|
| Type of actuation |
Electric |
| Valve size |
10 mm |
| Standard nominal flow rate (standardised to DIN 1343) |
170 l/min |
| Pneumatic working port |
M5 |
| Operating voltage |
12V DC |
| Operating pressure |
-0.9, 7 bar |
| Design |
Piston gate valve |
| Type of reset |
Pneumatic spring |
| Approval |
c UL us – Recognized (OL) |
| Degree of protection |
IP40 |
| Exhaust-air function |
Without flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
Non-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Non-reversible |

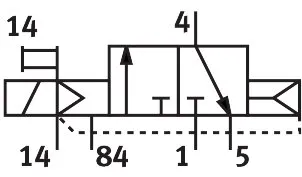

| Symbol |
00991401 |
| Lap |
Overlap |
| Pilot pressure |
3, 7 bar |
| Switching time off |
10 ms |
| Switching time on |
10 ms |
| Max. positive test pulse with 0 signal |
500 µs |
| Max. negative test pulse with 1 signal |
400 µs |
| Characteristic coil data |
12 V DC: 1.0 W |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
-5, 50 °C |
| Ambient temperature |
-5, 50 °C |
| Product weight |
30.5 g |
| Electrical connection |
2-pin, Plugs |
| Type of mounting |
With through-hole |
| Pilot exhaust port 82/84 |
Common line |
| Pneumatic connection, port 1 |
Common line |
| Pneumatic connection, port 2 |
M5 |
| Pneumatic connection 3/5 combined |
Common line |
| Pneumatic connection, port 4 |
M5 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material housing |
Die-cast aluminium |
