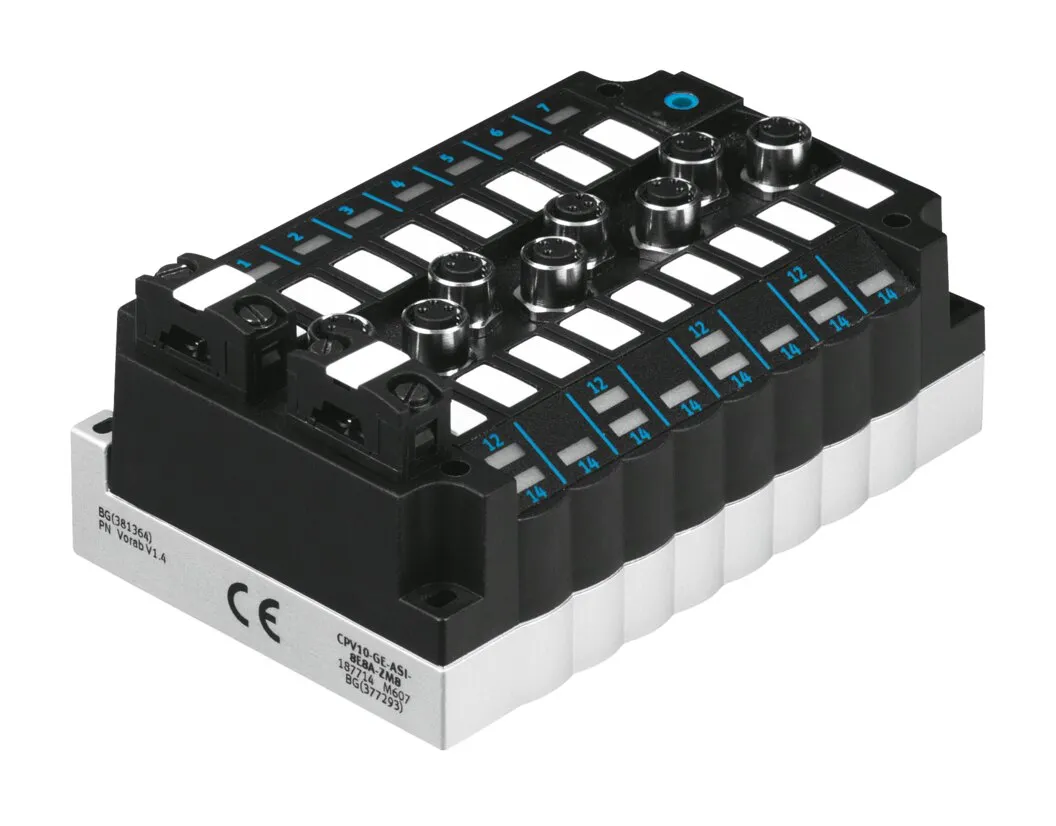

Festo CPV14-GE-ASI-8E8A-Z-M8-CE
Electrical interface-CPV14-GE-ASI-8E8A-Z-M8-CE
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Field bus interface | AS-Interface: flat cable plug, Load voltage: flat cable plug |
|---|---|
| Device-specific diagnostics | Short circuit/overload of inputs |
| Max. number of valve positions | 8 |
| Max. number of valve coils | 8 |
| Reverse polarity protection | For all electrical operating voltage connections |
| Number of slaves per device | 2 |
| Operating voltage DC AS-interface | 26.5, 31.6 V |
| Debounce time for inputs | 3 ms |
| Note on load voltage | Via load voltage connection (24 V DC) |
| Load voltage range DC | 21.6, 26.4 V |
| Max. number of inputs | 8 |
| Nominal DC operating voltage, AS-interface | 26.5 V |
| Nominal load voltage DC | 24 V |
| Residual ripple, AS interface | 20 mVpp |
| Residual ripple, load voltage | 4 Vpp |
| Switching level | Signal 0: = 11 V |
| Current consumption with load supply from AS-interface connection and load voltage connection | Inputs: 200 mA, Electronics: 40 mA, Valves: 460 mA (depending on valve type) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20, 70 °C |
| Relative air humidity | 0 – 95%, Non-condensing |
| Degree of protection | IP65, In assembled state |
| Ambient temperature | -5, 50 °C |
| Product weight | 346 g |
| Characteristic for inputs | To IEC 1131-2, type 02 |
| Switching logic for inputs | PNP (positive switching) |
| Addressing range | 1A … 31A (0), 1B … 31B, Set using AS-Interface addressing device |
| Electrical isolation fieldbus interface | Optocoupler |
| LED display, bus-specific | AS-i: AS-Interface mode, Aux/Pwr: AS-Interface power supply, Fault: AS-Interface fault |
| LED display, product-specific | 0 … 7: Switching status of inputs, 12/14: switching status of valves (on valve) |
| Product identification | ID code: ID=Ah, ID1=7h, ID2=7h, IO code: 7h, Profile: S-7.A.7 |
| Material cover | PA-reinforced |
| Material seals | CR, NBR |
| Material housing | Die-cast aluminium |
| Note on materials | RoHS-compliant |
