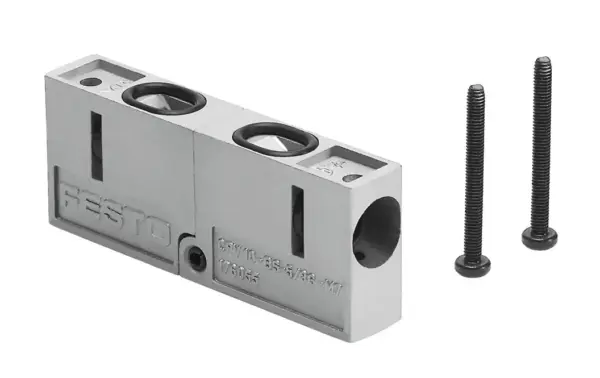

Festo CPV14-BS-5/3G-1/8
Valve kit-CPV14-BS-5/3G-1/8
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Valve function |
5/3 closed |
|---|---|
| Pneumatic working port |
G1/8 |
| Operating pressure |
2.5, 10 bar |
| Nominal size |
6 mm |
| Mounting position |
optional |
| Burst pressure |
30 bar |
| Switching time off |
30 ms |
| Switching time on |
22 ms |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Shock resistance |
30 g/11 ms to EN 60068-2-27 |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-10, 60 °C |
| Ambient temperature |
-10, 60 °C |
| Product weight |
190 g |
| Type of mounting |
With through-hole |
| Pneumatic connection, port 2 |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material housing |
Die-cast zinc |
