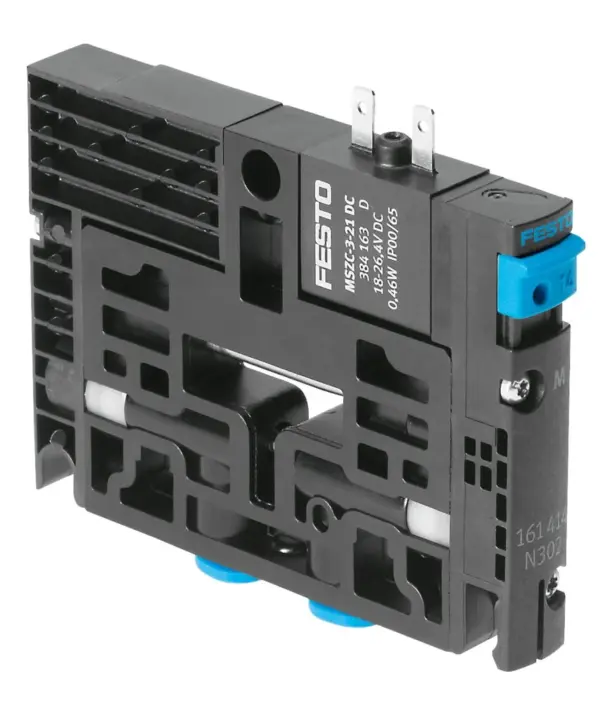

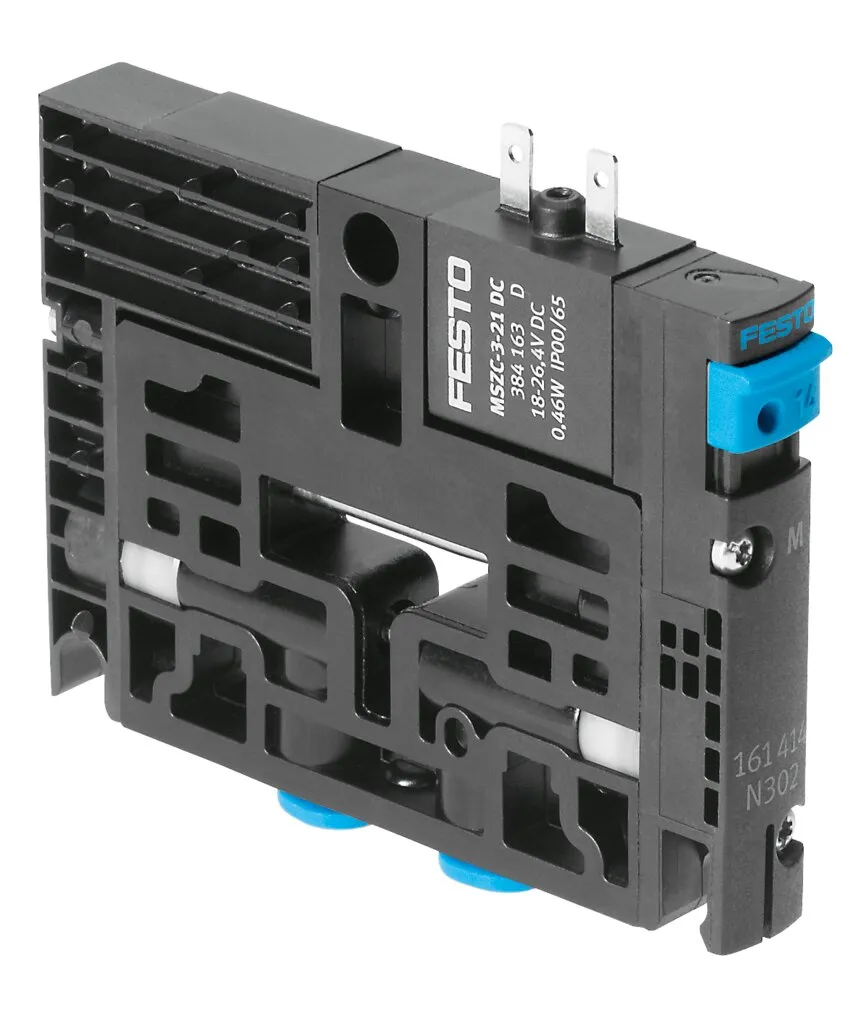

Festo CPV10-M1H-5LS-M7-B-EX
Solenoid valve-CPV10-M1H-5LS-M7-B-EX
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Valve function |
5/2-way, monostable |
|---|---|
| Type of actuation |
Electric |
| Valve size |
10 mm |
| Standard nominal flow rate (standardised to DIN 1343) |
400 l/min |
| Pneumatic working port |
M7 |
| Operating voltage |
24V DC |
| Operating pressure |
10 bar |
| Design |
Piston gate valve |
| Type of reset |
Pneumatic spring |
| Degree of protection |
IP50 |
| Nominal size |
4 mm |
| Exhaust-air function |
Without flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
Detenting, Non-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External, Internal |
| Flow direction |
Non-reversible |

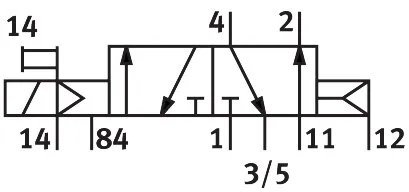

| Symbol |
00991942 |
| Lap |
Overlap |
| Pilot pressure |
3, 8 bar |
| B value |
0.4 |
| C value |
1.6 l/sbar |
| Switching time off |
40 ms |
| Switching time on |
17 ms |
| Duty cycle |
100% in conjunction with holding current reduction |
| Required current consumption |
0.016 A |
| Max. input power Pi |
0.76 W |
| Max. input voltage Ui |
32 V |
| Max. input current Ii |
0.2 A |
| Effective internal inductivity Li |
Negligibly low |
| Effective internal capacitance Ci |
Negligibly low |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-20, 40 °C |
| Media temperature |
-5, 50 °C |
| Ambient temperature |
-5, 50 °C |
| Product weight |
70 g |
| Type of mounting |
With through-hole |
| Pilot air port 12/14 |
Common line |
| Pilot exhaust port 82/84 |
Common line |
| Pneumatic connection, port 1 |
Common line |
| Pneumatic connection, port 11 |
Common line |
| Pneumatic connection, port 2 |
M7 |
| Pneumatic connection 3/5 combined |
Common line |
| Pneumatic connection, port 4 |
M7 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBR, NBR |
| Material housing |
POM, PPS, Steel |
