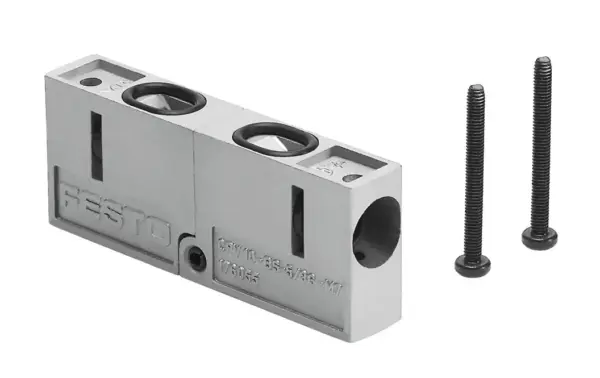

Festo CPV10-BS-5/3G-M7
Valve kit-CPV10-BS-5/3G-M7
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Valve function | 5/3 closed |
|---|---|
| Pneumatic working port | M7 |
| Operating pressure | 2.5, 10 bar |
| Nominal size | 4 mm |
| Mounting position | optional |
| Burst pressure | 30 bar |
| Switching time off | 30 ms |
| Switching time on | 20 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Shock resistance | 30 g/11 ms to EN 60068-2-27 |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10, 60 °C |
| Ambient temperature | -10, 60 °C |
| Product weight | 23 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 2 | M7 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast zinc |
