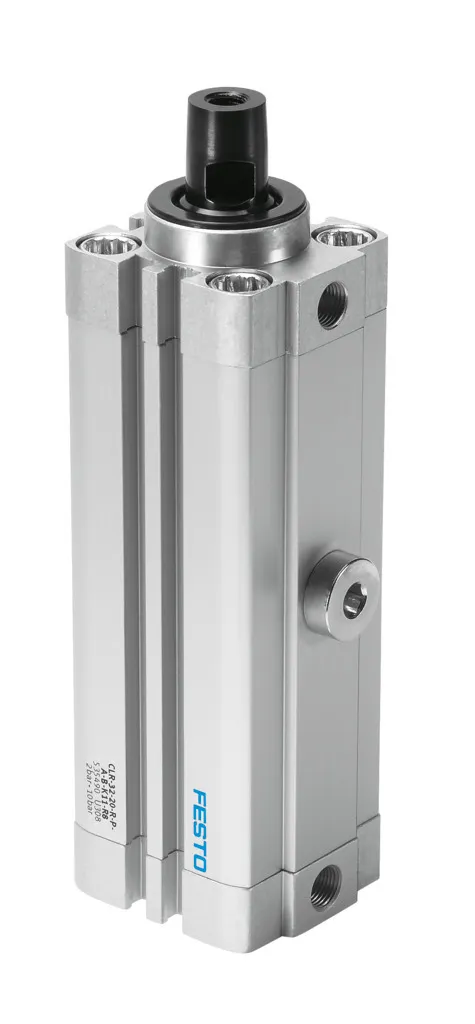

Festo CLR-63-20-L-P-A-K11-R8
Swivelling and clamping in one step , Adjustable swivel direction , Available with clamping fingers as accessories , Available with dust and welding spatter protection , Double-acting , For position s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Swivelling and clamping in one step , Adjustable swivel direction , Available with clamping fingers as accessories , Available with dust and welding spatter protection , Double-acting , For position sensing
Specification
| Total stroke |
43 mm |
|---|---|
| Piston diameter |
63 mm |
| Piston rod thread |
M10 |
| Swivel angle |
90 deg +/-2 deg |
| Clamping stroke |
20 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |
| Swivel direction |
Left |
| Symbol |
00991217 |
| Variants |
Weld spatter protection, Dust protection |
| Operating pressure |
2, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-10, 80 °C |
| Effective clamping force at 0.2 MPa (2 bar, 29 psi) |
441 N |
| Effective clamping force at 0.4 MPa (4 bar, 58 psi) |
823 N |
| Effective clamping force at 0.6 MPa (6 bar, 87 psi) |
1386 N |
| Max. tightening torque Clamping finger screw |
47 Nm |
| Theoretical clamping force at 0.6 MPa (6 bar, 87 psi) |
1682 N |
| Product weight |
2100 g |
| Type of mounting |
With through-hole, Via female thread, With accessories |
| Pneumatic connection |
G1/8 |
| Material wiper |
PPS |
| Material collar screws |
Steel, Galvanised |
| Material cover |
Wrought aluminium alloy, Coated |
| Material seals |
NBR, TPE-U(PU) |
| Material housing |
Smooth anodised |
| Material piston rod |
Coated, High-alloy stainless steel |
| Material cylinder barrel |
Wrought aluminium alloy, Smooth anodised |
