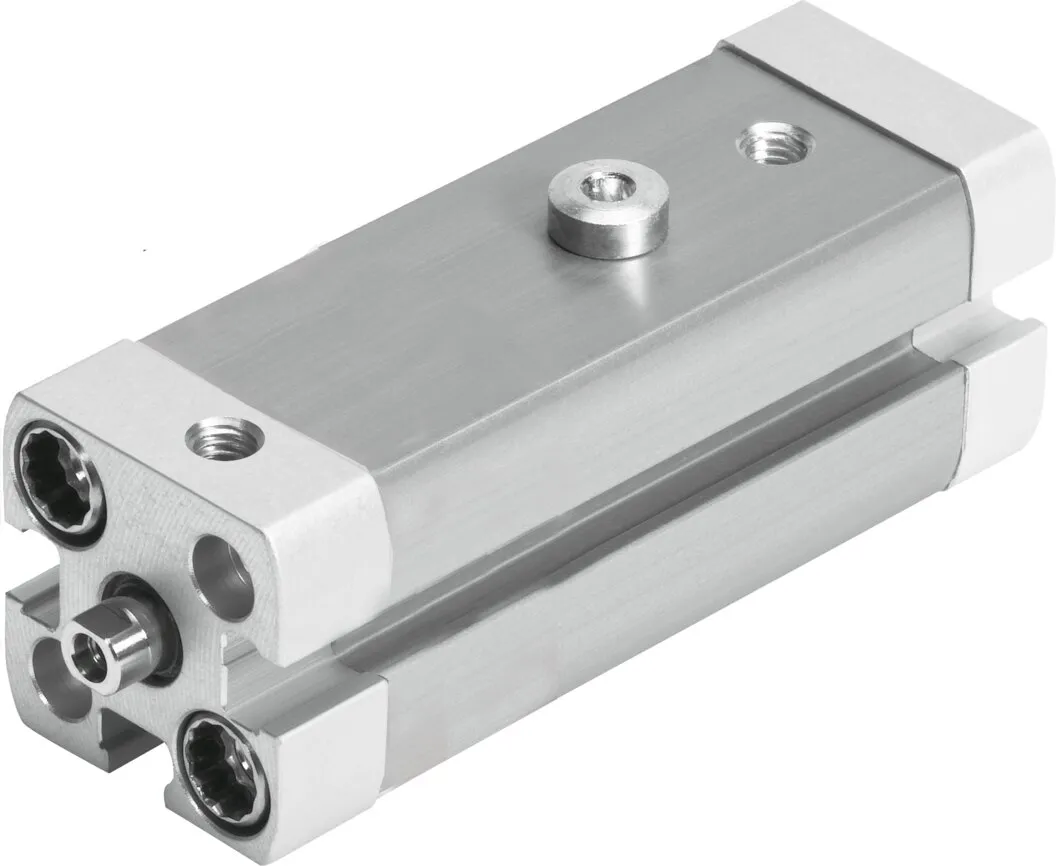

Festo CLR-25-10-L-P-A
Swivelling and clamping in one step , Adjustable swivel direction , Available with clamping fingers as accessories , Available with dust and welding spatter protection , Double-acting , For position s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Swivelling and clamping in one step , Adjustable swivel direction , Available with clamping fingers as accessories , Available with dust and welding spatter protection , Double-acting , For position sensing
Specification
| Total stroke | 23 mm |
|---|---|
| Piston diameter | 25 mm |
| Piston rod thread | M6 |
| Swivel angle | 90 deg +/-3 deg |
| Clamping stroke | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston, Piston rod, Cylinder barrel |
| Position detection | Via proximity switch |
| Swivel direction | Left |
| Symbol | 00991217 |
| Operating pressure | 2, 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10, 80 °C |
| Effective clamping force at 0.2 MPa (2 bar, 29 psi) | 63 N |
| Effective clamping force at 0.4 MPa (4 bar, 58 psi) | 127 N |
| Effective clamping force at 0.6 MPa (6 bar, 87 psi) | 188 N |
| Max. tightening torque Clamping finger screw | 12 Nm |
| Theoretical clamping force at 0.6 MPa (6 bar, 87 psi) | 227 N |
| Product weight | 395 g |
| Type of mounting | With through-hole, Via female thread, With accessories |
| Pneumatic connection | M5 |
| Material collar screws | Steel, Galvanised |
| Material cover | Wrought aluminium alloy, Coated |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Smooth anodised |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy, Smooth anodised |
