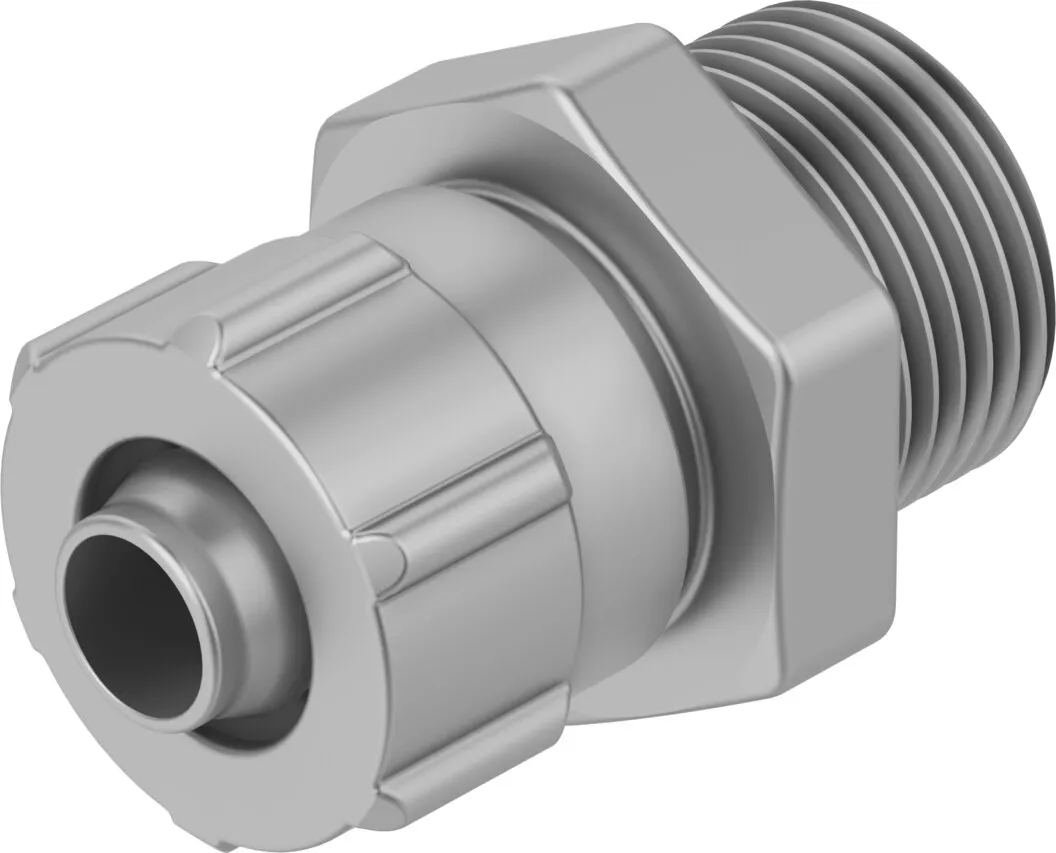

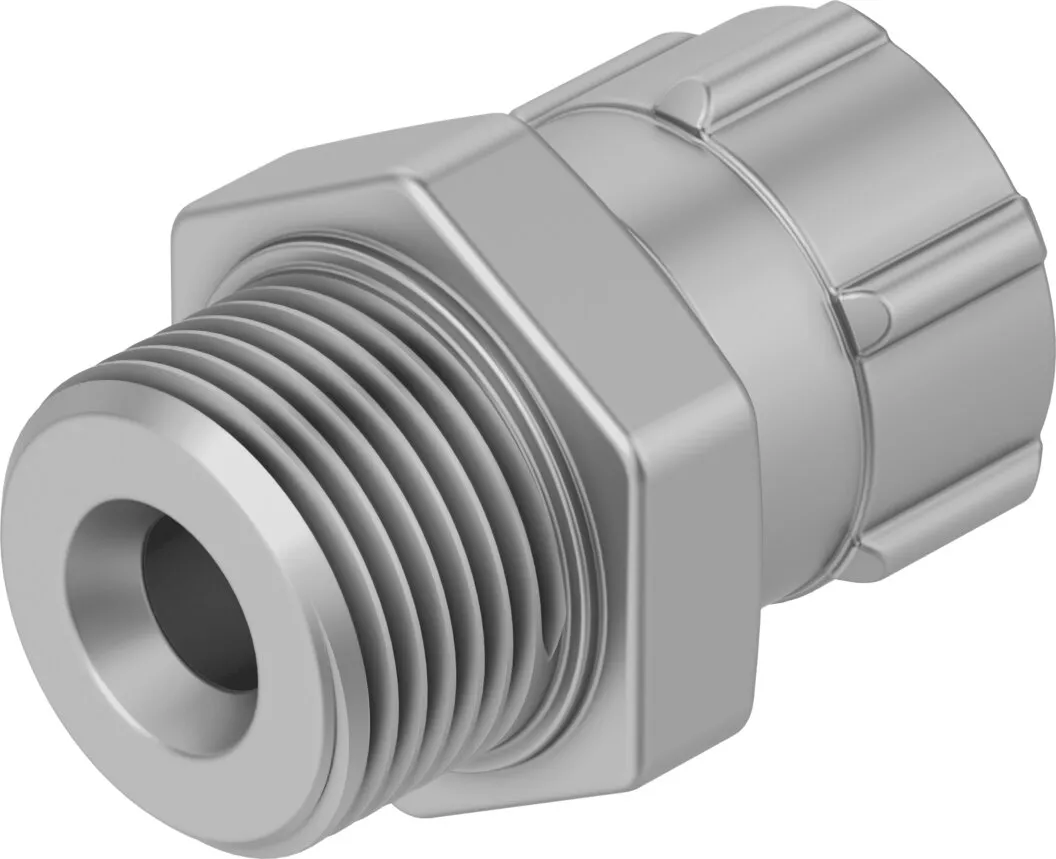

Festo CK-M5-PK-4
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Alumini…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Aluminium, steel, POM or zinc , Straight design, L-shaped, T-shaped
Specification
| Nominal size |
2.9 mm |
|---|---|
| Type of seal on screwed plug |
Sealing ring |
| Mounting position |
optional |
| Design |
Straight design |
| Size of pack |
10 |
| Operating pressure complete temperature range |
-13.775, 145 psi |
| Note on operating pressure |
Water: max. 0.6 MPa at max. 50°C |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note on operating and pilot medium |
Lubricated operation possible |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-10, 60 °C |
| Nominal torque |
1.33 Nm |
| Tolerance for nominal tightening torque |
± 20% |
| Pneumatic connection, port 1 |
Male thread M5 |
| Pneumatic connection, port 2 |
For tubing outside diameter of 6 mm, For barbed fitting inside diameter of 4 mm with nut |
| Material union nut |
Wrought aluminium alloy, anodised |
| Material screwed plug |
Galvanised steel |
| Note on materials |
RoHS-compliant |
| Material sealing ring |
NBR, High-alloy stainless steel |
