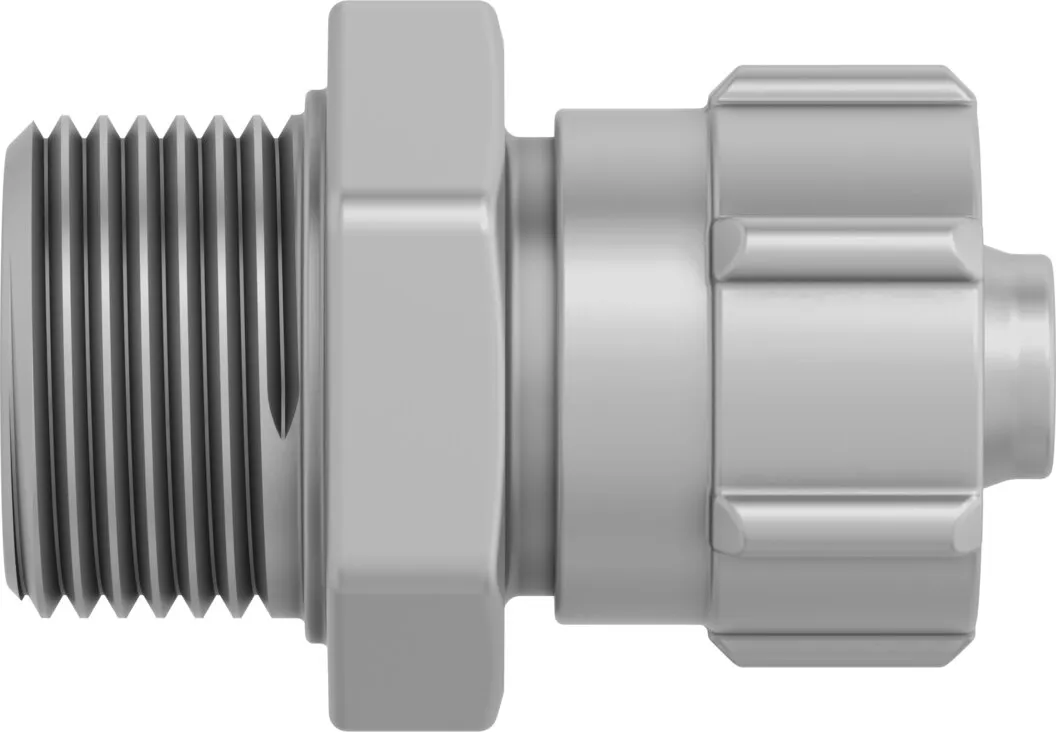

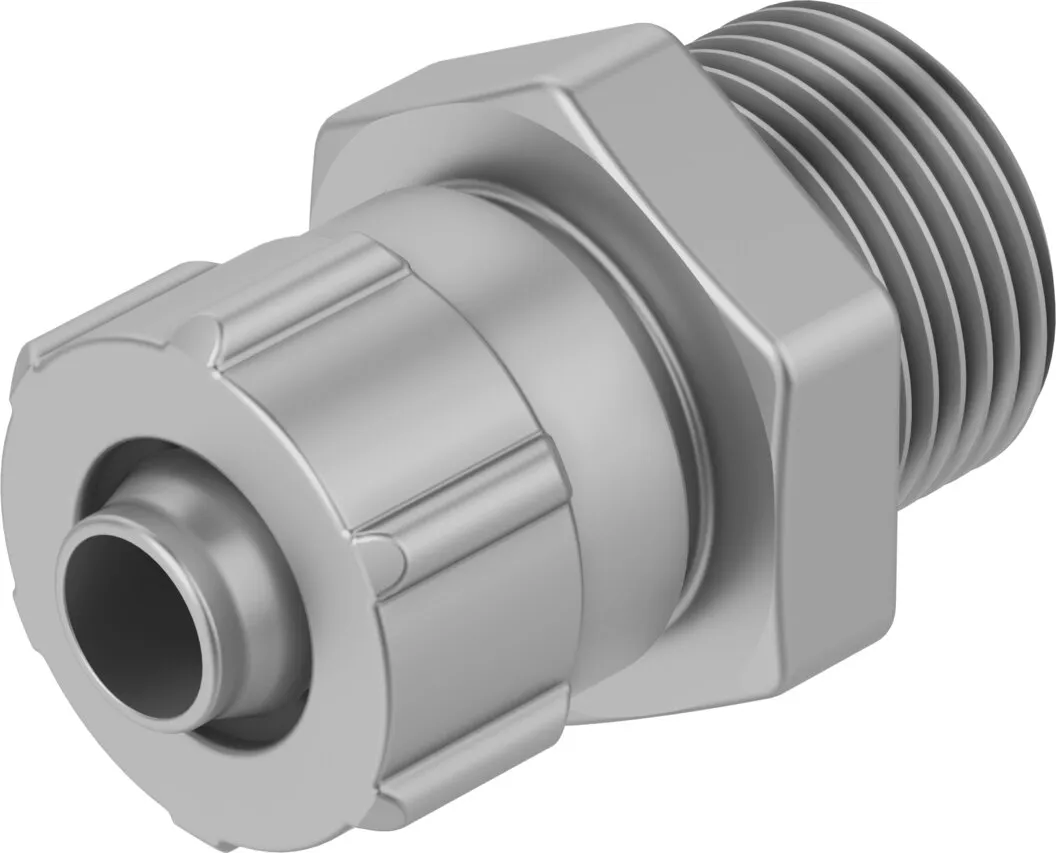

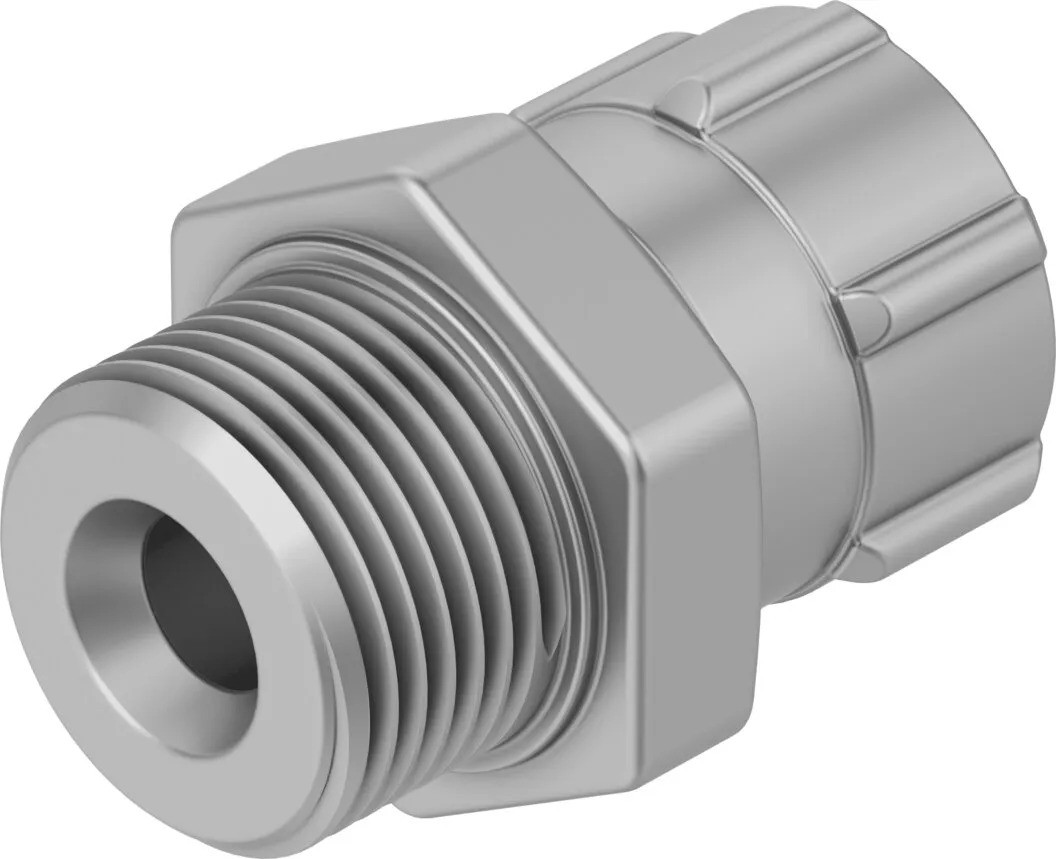

Festo CK-M5-PK-3
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Alumini…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Aluminium, steel, POM or zinc , Straight design, L-shaped, T-shaped
Specification
| Nominal size | 2 mm |
|---|---|
| Type of seal on screwed plug | Sealing ring |
| Mounting position | optional |
| Design | Straight design |
| Size of pack | 10 |
| Operating pressure complete temperature range | -13.775, 145 psi |
| Note on operating pressure | Water: max. 0.6 MPa at max. 50°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10, 60 °C |
| Nominal torque | 1.33 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Pneumatic connection, port 1 | Male thread M5 |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm, For barbed fitting I.D. 3 mm with nut |
| Material union nut | Wrought aluminium alloy, anodised |
| Material screwed plug | Galvanised steel |
| Note on materials | RoHS-compliant |
| Material sealing ring | NBR, High-alloy stainless steel |
