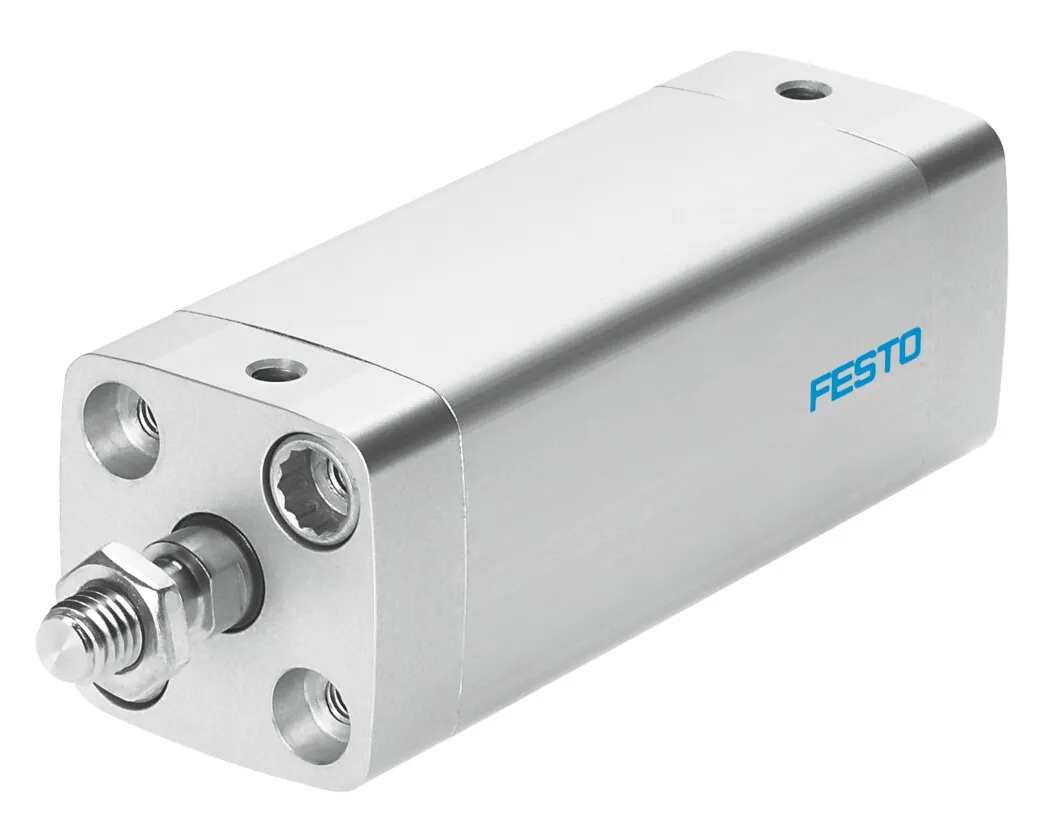

Festo CDC-63- –
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Easy-to-clean design , Increased corrosion protection , Wide range of variants for customised app…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Easy-to-clean design , Increased corrosion protection , Wide range of variants for customised applications , Piston rod with female or male thread , For position sensing
Specification
| Stroke | 1, 400 mm |
|---|---|
| Piston diameter | 63 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston, Piston rod |
| Position detection | Via proximity switch |
| Variants | Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end |
| Operating pressure | 0.6, 10 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 – high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L, VDMA24364 zone III |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1750 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1750, 1870 N |
| Type of mounting | With through-hole, Via female thread |
| Pneumatic connection | G1/8 |
| Material cover | Wrought aluminium alloy, Anodised |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy, Anodised |
