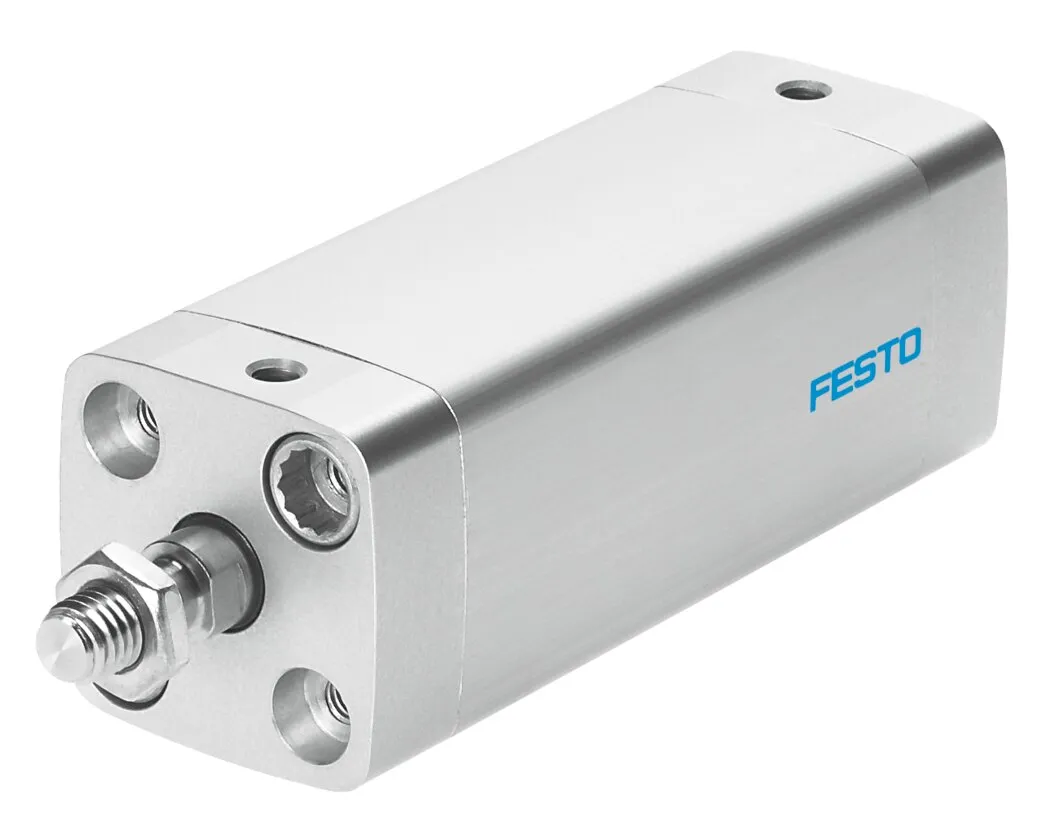

Festo CDC-20- –
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Easy-to-clean design , Increased corrosion protection , Wide range of variants for customised app…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Easy-to-clean design , Increased corrosion protection , Wide range of variants for customised applications , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
1, 300 mm |
|---|---|
| Piston diameter |
20 mm |
| Based on standard |
ISO 21287 |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Design |
Piston, Piston rod |
| Variants |
Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end |
| Operating pressure |
0.8, 10 bar |
| Mode of operation |
Double-acting |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L, VDMA24364 zone III |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-20, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
141 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
141, 188 N |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
M5 |
| Material cover |
Wrought aluminium alloy, Anodised |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
Wrought aluminium alloy, Anodised |
