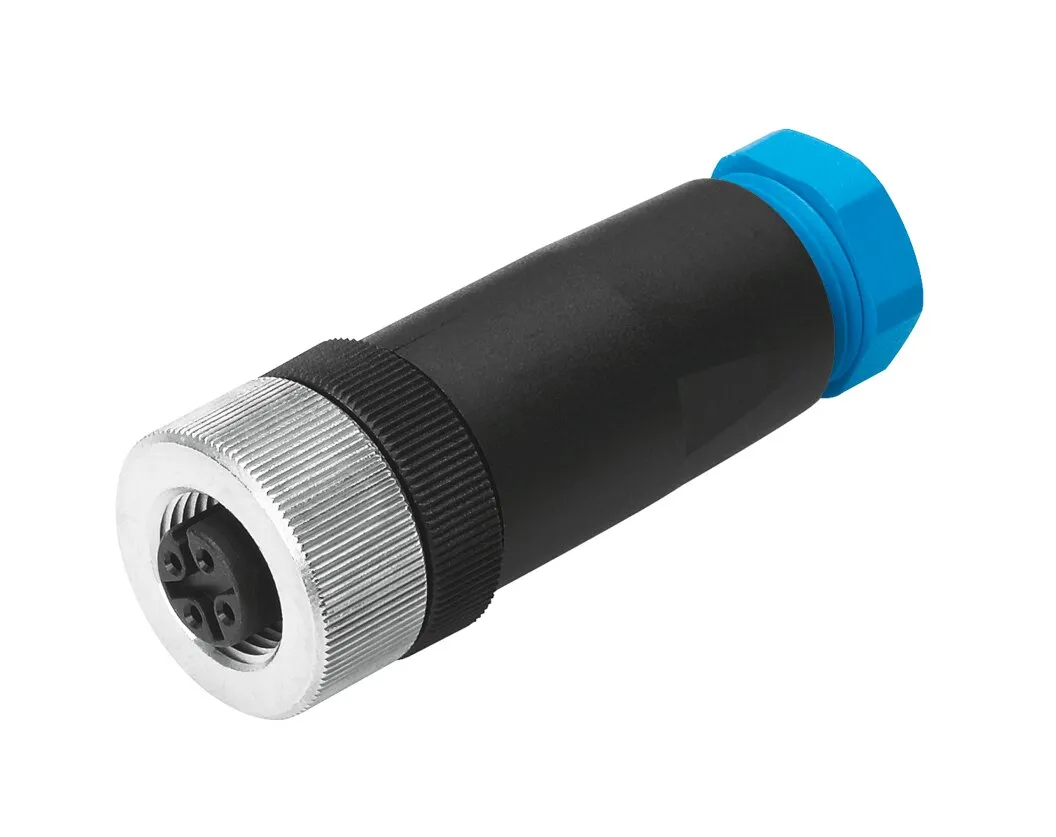

Festo ASI-SD-PG-M12
For AS-Interface , Flat-cable socket for connecting AS-Interface stations to the AS-Interface bus system , M12 connection , Reverse polarity protected , Detachable connection
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For AS-Interface , Flat-cable socket for connecting AS-Interface stations to the AS-Interface bus system , M12 connection , Reverse polarity protected , Detachable connection
Specification
| Type of mounting | Via union nut |
|---|---|
| Mounting position | optional |
| Product weight | 27.6 g |
| Electrical connection | 4-pin, Straight socket, Screw terminal |
| Operational voltage range AC | 125 V |
| Permissible current load | 3 A |
| Cable fitting | Pg 9 |
| Connection cross section | 0.75 mm² |
| Degree of protection | IP65, IP67 |
| Ambient temperature | -40, 85 °C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Material housing | PA |
| Housing colour | Black |
| Material union nut | Nickel-plated |
| Material electrical contact | Bronze |
