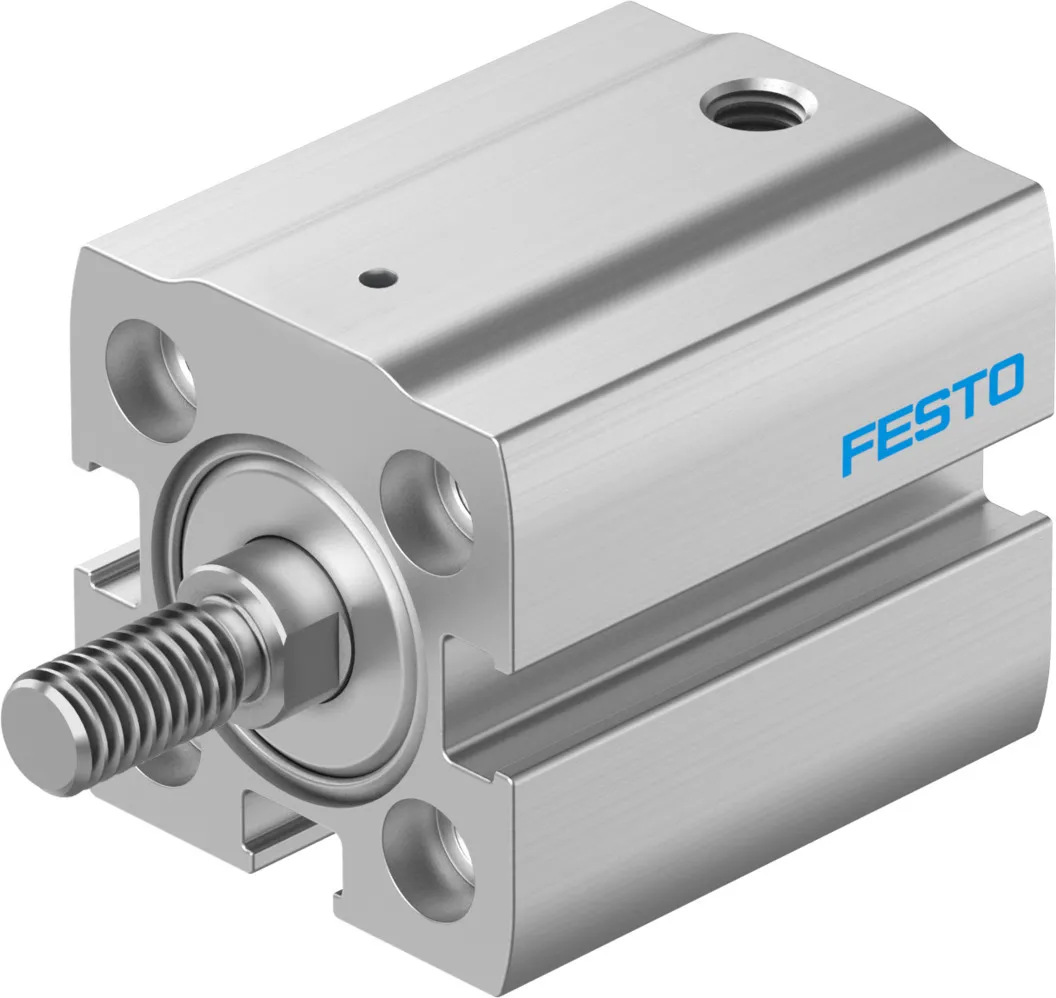

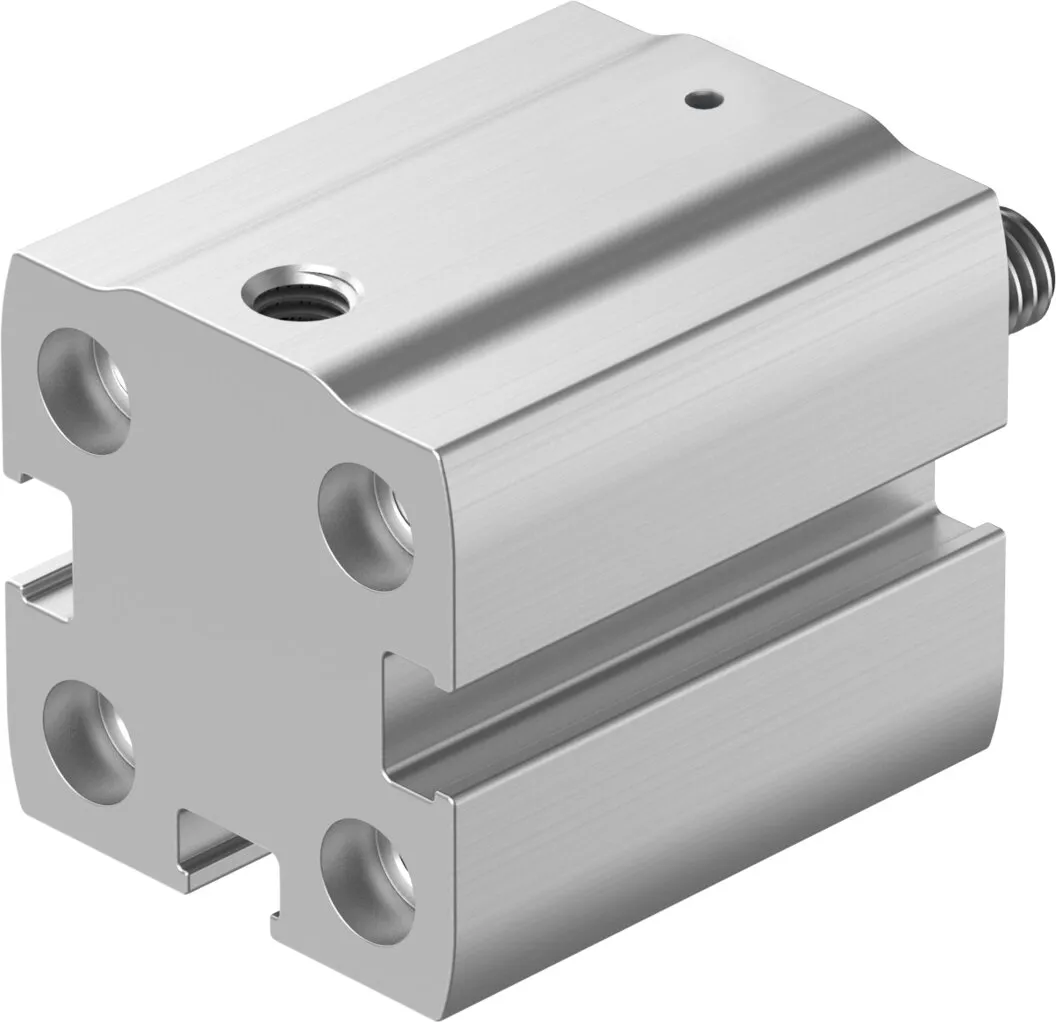

Festo AEN-S-16-10-A-P-A
Minimal installation space , Very lightweight , Ideal for small movements , High forces in a compact size , Piston rod with female or male thread , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Minimal installation space , Very lightweight , Ideal for small movements , High forces in a compact size , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
10 mm |
|---|---|
| Piston diameter |
16 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Mode of operation |
Pushing |
| Piston-rod end |
Male thread |
| Design |
Piston, Piston rod |
| Position detection |
Via proximity switch |
| Symbol |
00991729 |
| Variants |
Piston rod at one end |
| Operating pressure |
1, 10 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
80 °C |
| Impact energy in end positions |
0.038 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
9.5 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
95 N |
| Moving mass for 0 mm stroke |
11 g |
| Additional moving mass per 10 mm stroke |
4 g |
| Basic weight for 0 mm stroke |
42 g |
| Additional weight per 10 mm stroke |
18 g |
| Type of mounting |
With through-hole, Via female thread, With accessories |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Anodised wrought aluminium alloy |
| Material dynamic seals |
NBR, TPE-U(PU) |
| Material housing |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
