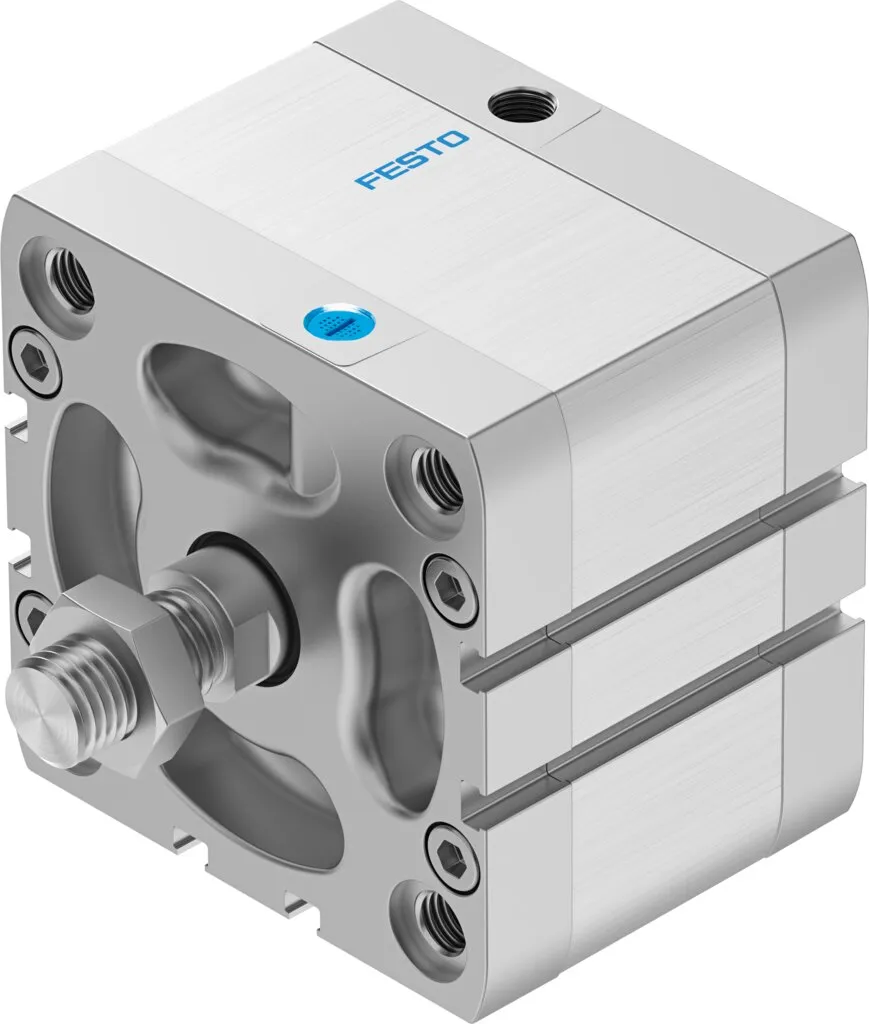

Festo AEN-80- –
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applicatio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applications , For position sensing
Specification
| Stroke | 1, 25 mm |
|---|---|
| Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |
| Variants | Improved running performance, Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, With protection against rotation, Heat-resistant seals max. 120°C, Laser etched rating plate, Pulling, Piston rod at one end |
| Operating pressure | 1, 10 bar |
| Mode of operation | Pushing, Single-acting, Pulling |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 2640 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 2810 N |
| Additional weight per piston rod extension of 10 mm | 25 g |
| Additional weight per piston rod thread extension of 10 mm | 16 g |
| Type of mounting | With through-hole, Via female thread, With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material collar screws | Steel |
| Material cover | Coated die-cast aluminium |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
