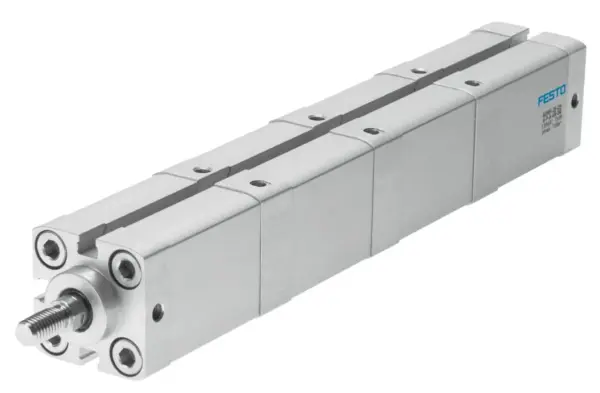

Festo ADNH-40- –
Max. 4 cylinders can be combined , Increased thrust force , Only 2 connections are required to pressurise all cylinders , Piston rod with female or male thread , For position sensing , Mounting hole p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Max. 4 cylinders can be combined , Increased thrust force , Only 2 connections are required to pressurise all cylinders , Piston rod with female or male thread , For position sensing , Mounting hole pattern to ISO 21287
Specification
| Stroke | 5, 150 mm |
|---|---|
| Piston diameter | 40 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991223, 00991246, 00991267 |
| Variants | Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Heat-resistant seals max. 120°C, Laser etched rating plate |
| Operating pressure | 0.8, 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 633 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 2812 N |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy, Anodised |
| Material seals | TPE-U(PU) |
| Material housing | Anodised |
| Material piston rod | High-alloy steel |
