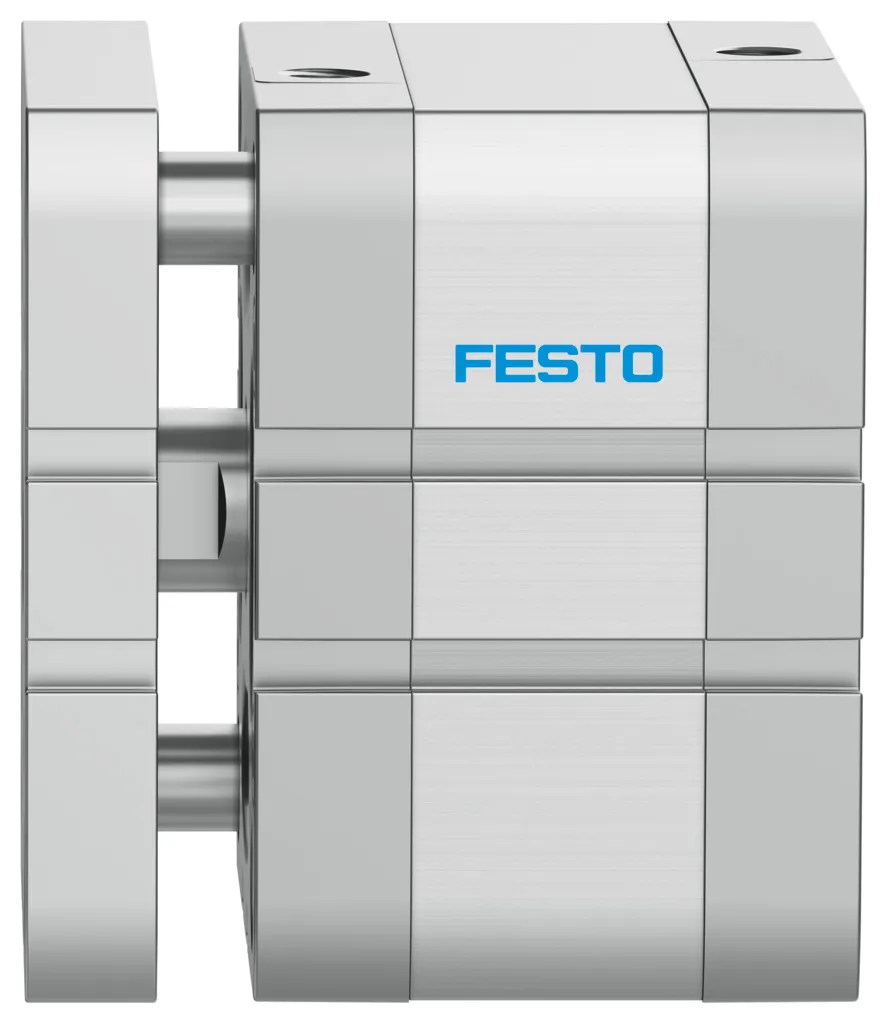

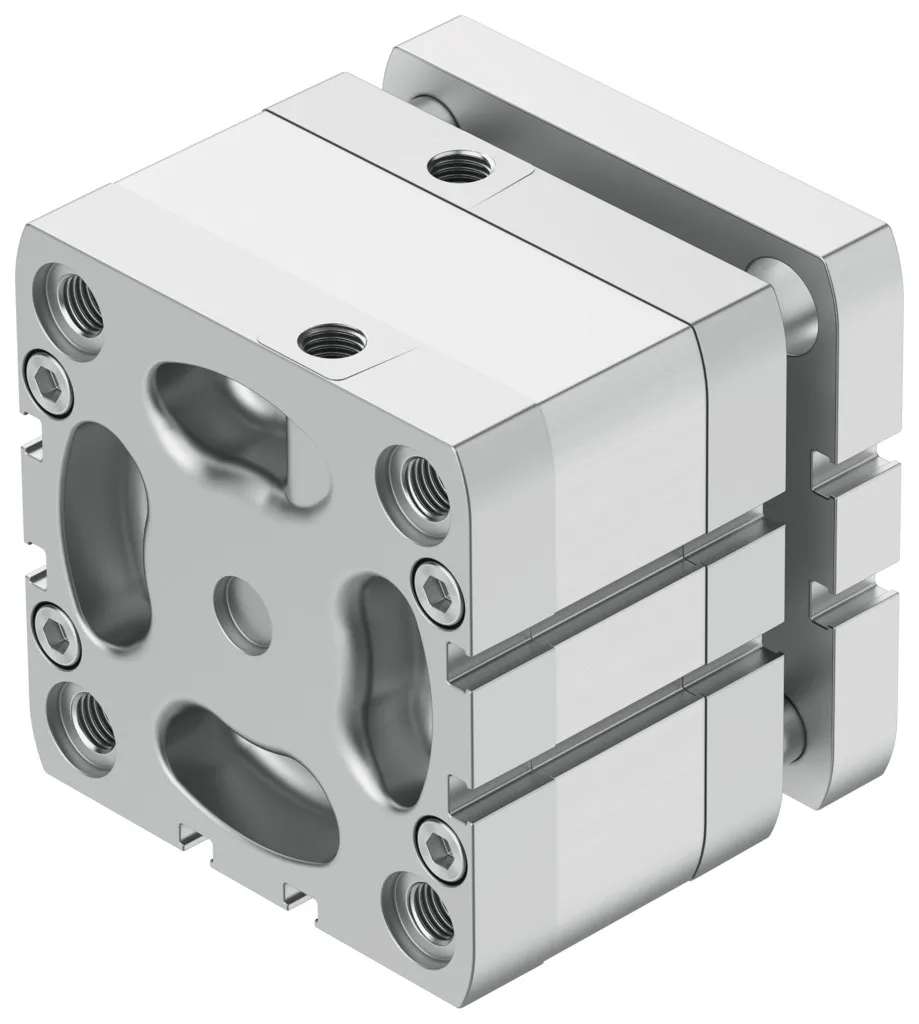

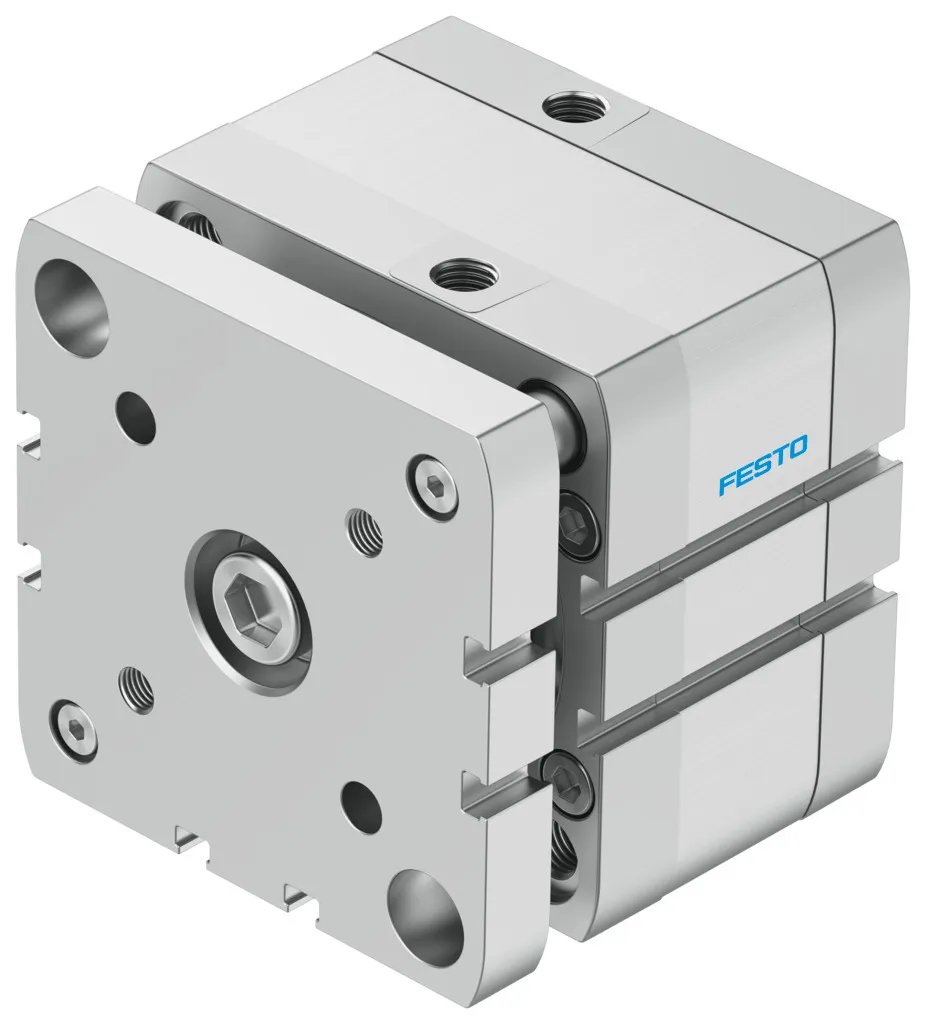

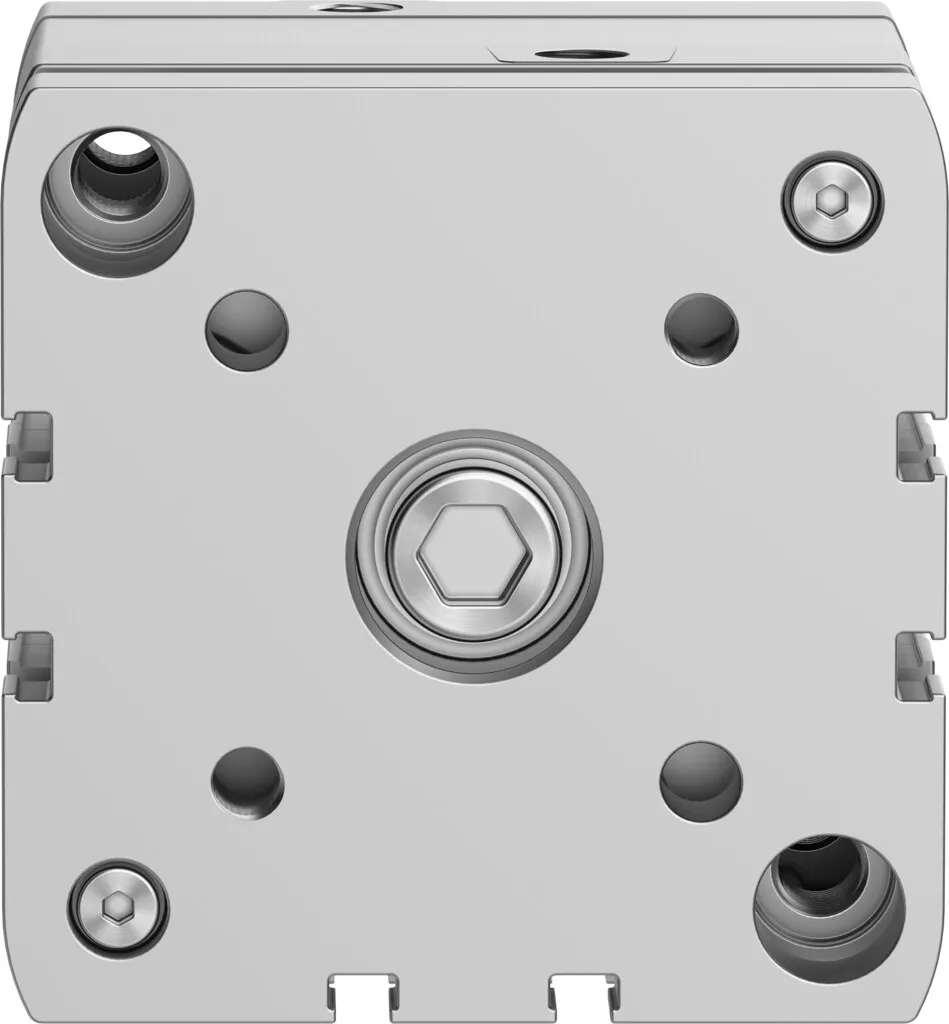

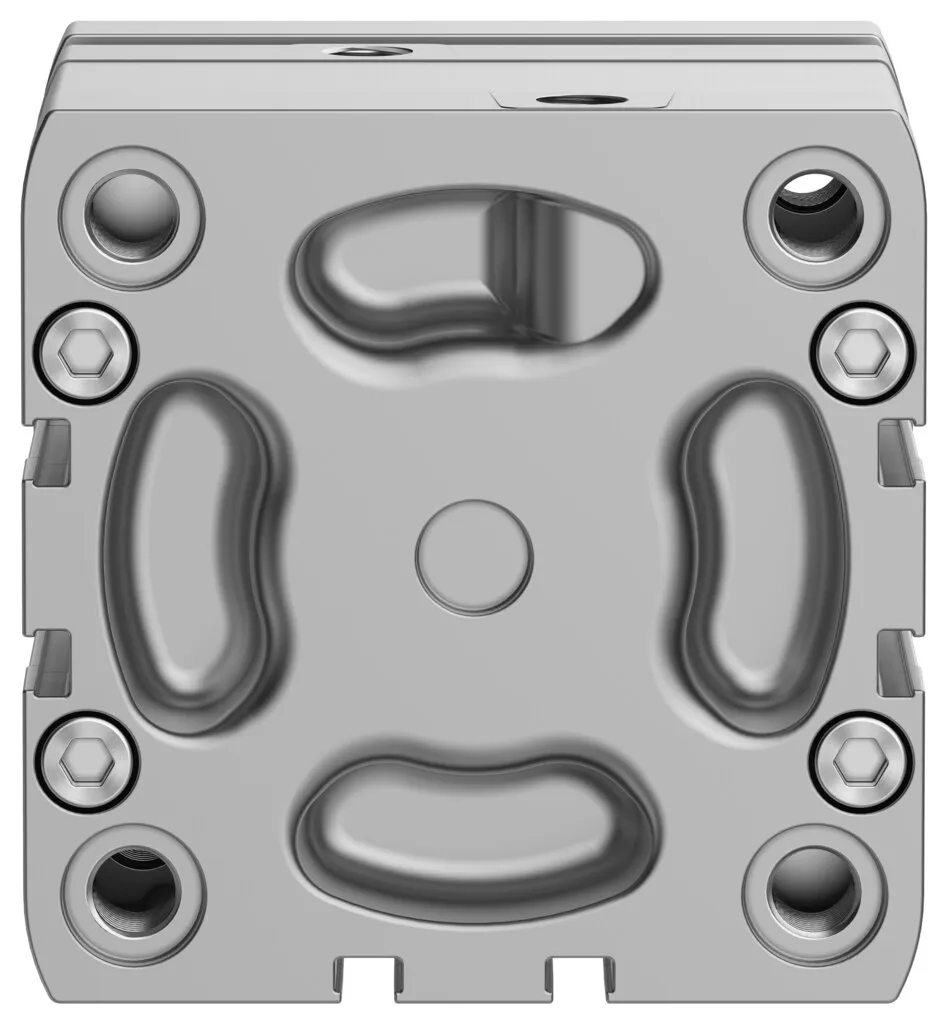

Festo ADNGF-80- –
ISO 21287 , Piston rod secured against rotation by a guide rod and yoke plate , Plain bearing , Optionally with through piston rod , Higher load capacity thanks to guide rod and yoke plate , For posit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Piston rod secured against rotation by a guide rod and yoke plate , Plain bearing , Optionally with through piston rod , Higher load capacity thanks to guide rod and yoke plate , For position sensing
Specification
| Stroke |
5, 300 mm |
|---|---|
| Piston diameter |
80 mm |
| Based on standard |
ISO 21287 |
| Cushioning |
Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |
| Variants |
Through piston rod, Heat-resistant seals max. 120°C, Laser etched rating plate |
| Protection against torque/guide |
Guide rod with yoke |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| CE mark (see declaration of conformity) |
To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) |
To UK EX instructions |
| Explosion protection certification outside the EU |
EPL Db (GB), EPL Gb (GB) |
| Explosion protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas |
II 2G |
| ATEX category dust |
II 2D |
| Explosion ignition protection type for gas |
Ex h IIC T4 Gb |
| Explosion ignition protection type for dust |
Ex h IIIC T120°C Db |
| Explosion ambient temperature |
-20°C <= Ta <= +60°C |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-20, 120 °C |
| Impact energy in end positions |
1.8 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
2827 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
3016 N |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material collar screws |
Steel |
| Material cover |
Coated die-cast aluminium |
| Material seals |
TPE-U(PUR) |
| Material end plate |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy steel |
| Material cylinder barrel |
Smooth-anodised wrought aluminium alloy |
